629906x85B - Murray 29" Snow Thrower (2002) Auger Housing Parts Diagram

29" Snow Thrower

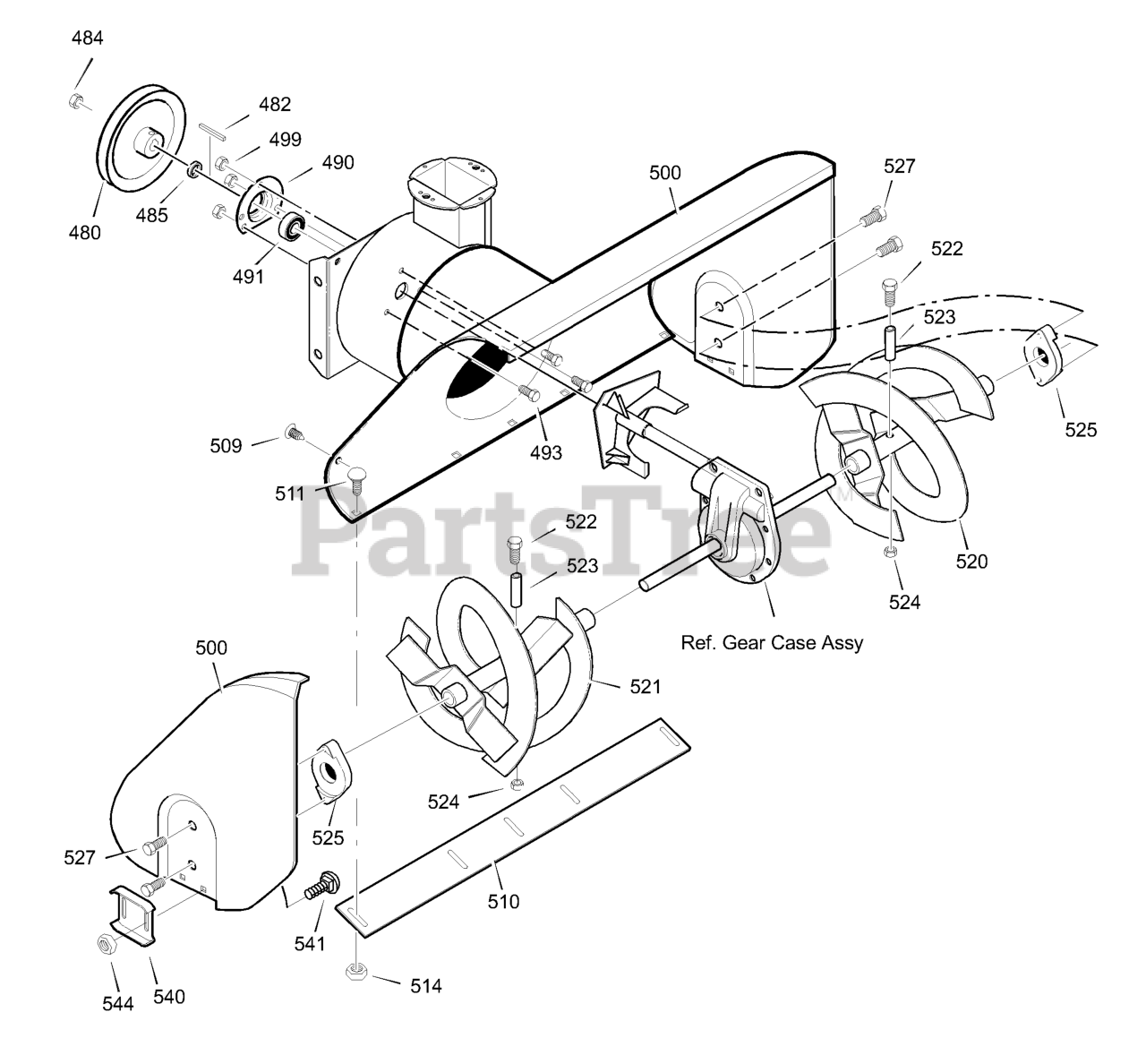

Auger Housing Parts Diagram

  • Title

480

Murray 583146MA

PULLEY, 4L 8.40 OD

$

$

Not available

482

Murray 2001022MA

KEY, SQUARE

$4.49

$

In Stock, Qty 12

0

484

Murray 15X112MA

NUT, 1/2-20

$5.49

$

In Stock, only 2 left!

0

485

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 10

0

490

Murray 582957 YZ

RETAINER, BALL BRNG
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 043846

BEARING, BALL

$34.99

$

Usually ships in 2-12 days

0

493

Murray 001X92MA

BOLT, HEX - 0.31-18X0.50

$5.49

$

In Stock, only 3 left!

0

499

Murray 710026

NUT, 5/16-18 HEXWDFLLK

$

$

Not available

500

Murray 1501133E012

HOUSING, ASSY

$

$

Currently unavailable

509

Murray 760040MA

PLUG, CHRISTMAS TREE

$4.49

$

Usually ships in 2-12 days

0

510

Murray 760660E701MA

BLADE, SCRAPER
(Superseded to 1738334BMYP)

$47.99

$

In Stock, only 4 left!

0

511

Murray 340720MA

BOLT, CARRIAGE
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

514

Murray 710026

NUT

$

$

Not available

520

Murray 760597E701MA

AUGER, ASSY, LH

$

$

Not available

521

Murray 760598E701MA

AUGER, ASSY, RH

$242.99

$

Usually ships in 2-12 days

0

522

Murray 9524MA

BOLT, 1/4-20 x 1.75
(Superseded to 703057)

$5.99

$

In Stock, Qty 5

0

523

Murray 3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 3 left!

0

524

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

525

Murray 53757MA

BEARING, AUGER SHAFT 1" ID

$9.99

$

In Stock, only 2 left!

0

527

Murray 70984

SCREW, 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

536

Murray 340720MA

BOLT, 5/16-18 x .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

540

Murray 762376E701MA

SKID, HEIGHT ADJUST
(Superseded to 1741194AYP)

$

$

Not available

541

Murray 340720MA

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

544

Murray 710026

NUT, 5/16-18 REGHEX

$

$

Not available
