629906x61C - Murray 29" Snow Thrower (2001) Track Assembly Parts Diagram

29" Snow Thrower

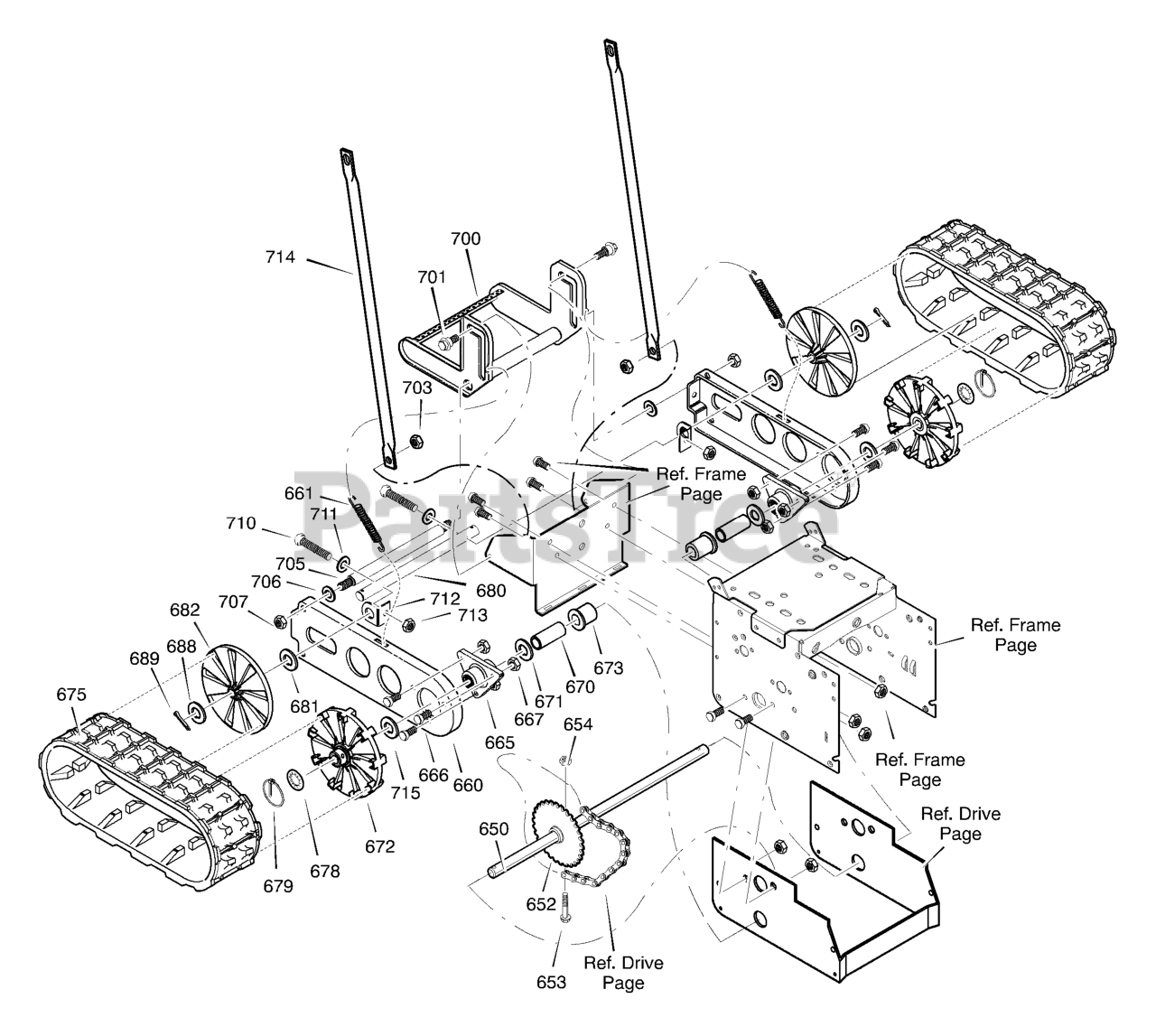

Track Assembly Parts Diagram

  • Title
650

Murray 1501221

SHAFT, AXLE

$41.99

$

Usually ships in 2-12 days

0

652

Murray 579901

SPROCKET AND HUB

$78.99

$

Usually ships in 2-12 days

0

653

Murray 73839MA

BOLT, HEX

$5.49

$

In Stock, only 2 left!

0

654

$

$

Not available

660

Murray 580635E701

PLATE, TRACK DIRECT

$28.99

$

Usually ships in 2-12 days

0

661

Murray 51447MA

SPRING, DRIVE IDLER

$21.99

$

Usually ships in 2-12 days

0

665

Murray 316863MA

BEARING, TRACK

$5.99

$

Usually ships in 2-12 days

0

666

$4.49

$

In Stock, Qty 7

0

667

$4.99

$

Usually ships in 2-12 days

0

670

Murray 580763

SPACER

$

$

Not available

671

Murray 712120MA

WASHER, FLAT

$4.99

$

In Stock, Qty 20+

0

672

Murray 318719MA

SPROCKET

$33.99

$

Usually ships in 2-12 days

0

673

Murray 1501114MA

BEARING, AXLE

$11.99

$

In Stock, Qty 20+

0

675

$

$

Not available

678

Murray 239MA

RING, RETAINER
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

679

Murray 322424MA

PIN, KLIK

$9.99

$

Usually ships in 2-12 days

0

680

Murray 580876

SHAFT, IDLER

$

$

Not available

681

Murray 579597MA

WASHER, FLAT

$3.99

$

Usually ships in 2-12 days

0

682

Murray 318720MA

WHEEL IDLER

$45.99

$

Usually ships in 2-12 days

0

688

Murray 579597MA

WASHER, FLAT

$3.99

$

Usually ships in 2-12 days

0

689

Murray 302847

PIN, COTTER

$

$

Currently unavailable

700

Murray 580657E701

PEDAL, FOOT

$854.99

$

Usually ships in 2-12 days

0

701

$

$

Not available

703

$

$

Not available

705

$

$

Currently unavailable

706

Murray 71072

WASHER, FLAT

$

$

Not available

707

$

$

Not available

710

$4.49

$

Usually ships in 2-12 days

0

711

Murray 071067MA

WASHER, FLAT

$82.99

$

In Stock, only 1 left!

0

712

Murray 581033 YZ

BRACKET, TRACK TENSIONER

$85.99

$

Usually ships in 2-12 days

0

713

$

$

Not available

714

$

$

Currently unavailable

715

Murray 6104MA

WASHER

$

$

Not available
