629906x61C - Murray 29" Snow Thrower (2001) Gear Case Parts Diagram

29" Snow Thrower

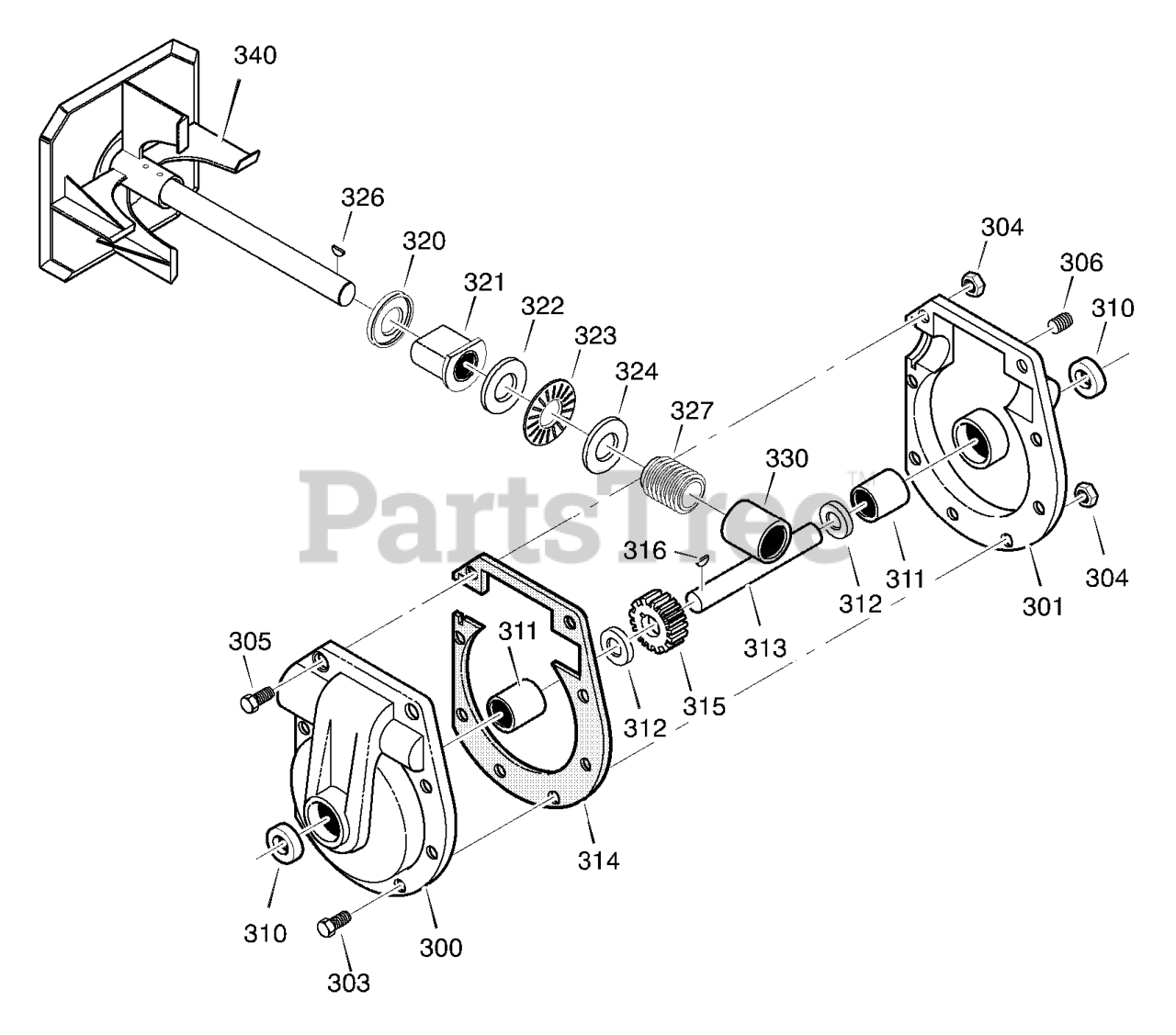

Gear Case Parts Diagram

  • Title

300

Murray 896MA

CASE, GEAR, RH

$32.99

$

In Stock, only 4 left!

0

301

Murray 895MA

CASE, GEAR, LH

$

$

Not available

303

Murray 910828MA

SCREW,1/4-20X.75
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

304

Murray 71100MA

NUT,1/4-20
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

305

Murray 330434MA

NUT, 1/4-20 HEXKEPS
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

306

Murray 53749MA

SCREW, 3/8-16 x 0.50
(Superseded to 703122)

$3.49

$

Usually ships in 2-12 days

0

310

Murray 780151MA

SEAL, OIL

$10.99

$

In Stock, Qty 6

0

311

Murray 53743

BEARING, FL
(Superseded to 53743MA)

$9.99

$

Usually ships in 2-12 days

0

312

Murray 53748MA

WASHER, FLAT

$9.99

$

In Stock, only 2 left!

0

313

Murray 760528MA

SHAFT, AUGER OUTPUT

$80.99

$

Usually ships in 2-12 days

0

314

Murray 897MA

GASKET, GEAR BOX

$

$

Not available

315

Murray 53730MA

WORM GEAR
(Superseded to 1752500YP)

$79.99

$

In Stock, only 4 left!

0

316

Murray 73905MA

KEY, WOODRUFF #61
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

320

Murray 53737MA

BRNG, FL

$4.99

$

In Stock, Qty 7

0

321

Murray 583126MA

SHAFT, AUGER INPUT

$13.99

$

In Stock, Qty 5

0

322

Murray 48275MA

COLLAR, THRUST

$6.49

$

In Stock, only 4 left!

0

323

Murray 50684MA

PIN, SPRING

$6.49

$

In Stock, only 4 left!

0

324

Murray 48275MA

WASHER, FLAT

$6.49

$

In Stock, only 4 left!

0

326

Murray 50795MA

BRNG, FL

$5.99

$

In Stock, only 1 left!

0

327

Murray 53732MA

SEAL, OIL

$49.99

$

Usually ships in 2-12 days

0

330

Murray 53731MA

BEARING

$5.49

$

In Stock, Qty 10

0

340

Murray 1501147E701MA

IMPELLER
(Superseded to 1740584AYP)

$271.99

$

Usually ships in 2-12 days

0

--

Murray 333431MA

LUBRIPLATE, GR132, 14oz
(Superseded to 770622)

Note: (Not Illustrated)

$31.99

$

Usually ships in 2-12 days

0
