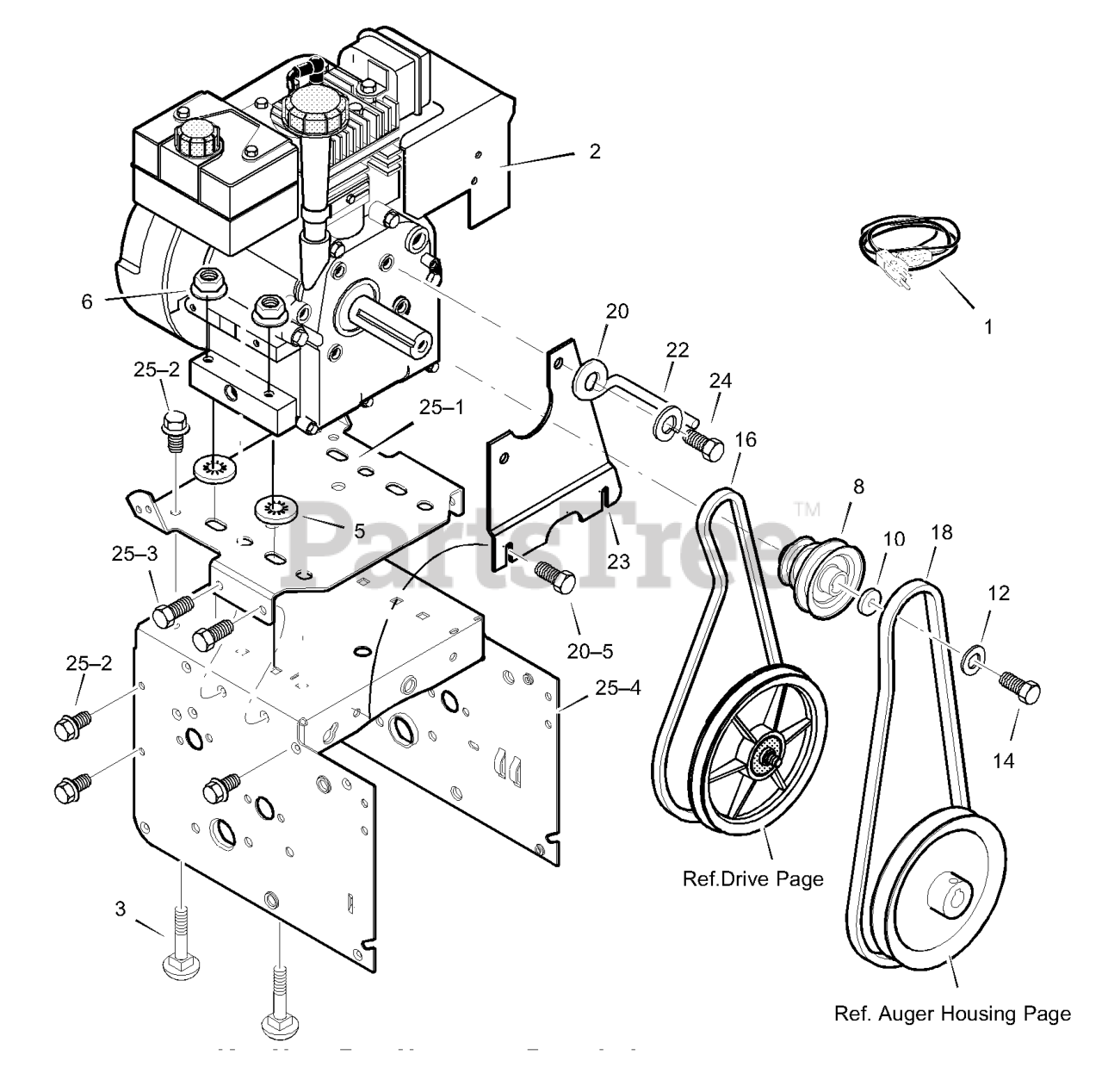

629904x85B - Murray 29" Snow Thrower (2002) Engine Parts Diagram

29" Snow Thrower

Engine Parts Diagram

  • Title

1

Murray 761332

CORD, STARTER MOTOR 220V
(Superseded to 761332MA)

$24.99

$

Usually ships in 2-12 days

0

2

ENGINE

$

$

Not available

3

Murray 002X97MA

BOLT, CARRIAGE 5/16-18
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

5

Murray 028X76MA

RETAINER, PUSH

$4.49

$

Usually ships in 2-12 days

0

6

Murray 710026

NUT, HEX 5/16-18

$

$

Not available

8

Murray 1501109MA

PULLEY, ENGINE

$41.99

$

In Stock, only 2 left!

0

10

Murray 710247

WASHER

$8.49

$

Usually ships in 2-12 days

0

12

Murray 71063

WASHER .38ID

$3.99

$

Usually ships in 2-12 days

0

14

Murray 71015

SCREW, 3/8-24 x 1.00

$

$

Not available

16

Murray 579932MA

BELT, V 3L 33.13LG
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

18

Murray 585416MA

BELT, V 4L 38.1MF16" 5-10

$22.99

$

In Stock, Qty 20+

0

20

Murray 1501201MA

GUIDE, BELT
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

20-5

UNKNOWN

$

$

Not available

22

Murray 071060

WASHER, SPTLK .31X.58X.08

$3.49

$

In Stock, Qty 20+

0

23

Murray 1501482MA

PLATE, ANTI VIBRATION

$21.99

$

Usually ships in 2-12 days

0

24

Murray 910828MA

SCREW, 5/16-24 x 1.00
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray 1501062E012

PLATE, ENGINE MOUNT

$64.99

$

Usually ships in 2-12 days

0

25-2

Murray 310169MA

SCREW, TAP 1/4-20 X .63
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

25-3

Murray 780055MA

SCREW, TAP 5/16-18 X .50
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

25-4

Murray 1501049E012

FRAME, MOTOR BOX

$94.99

$

Usually ships in 2-12 days

0

25-5

Murray 26X263MA

SCREW

$4.99

$

In Stock, only 1 left!

0

--

Murray F-011024L

OWNER'S MANUAL (8218-2201-080)

$

$

Currently unavailable

--

Murray F-011089L

FLYER SHEET (8218-2215-01)

$

$

Currently unavailable
