629904x85B - Murray 29" Snow Thrower (2002) Discharge Chute Parts Diagram

29" Snow Thrower

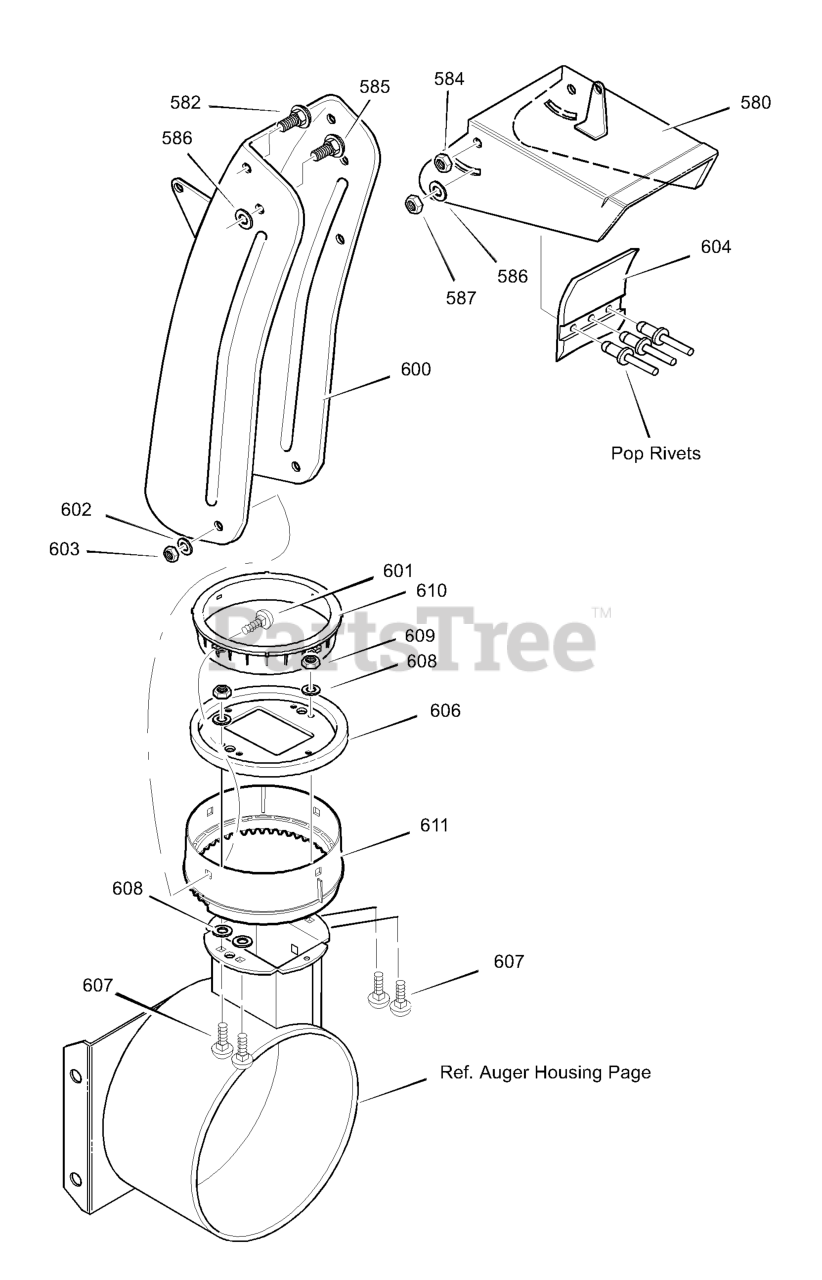

Discharge Chute Parts Diagram

  • Title
580

Murray 761168E701MA

CHUTE, UPPER W/REMOTE

$34.99

$

In Stock, only 1 left!

0

582

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

584

Murray 71038

NUT, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

585

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

586

Murray 6711MA

PLASTIC WASHER

$3.99

$

Usually ships in 2-12 days

0

587

Murray 71038

NUT, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

600

Murray 761329E701

CHUTE, LOWER W/GUARD

$250.99

$

Usually ships in 2-12 days

0

601

Murray 586280

BOLT, 5/16-189 X 1.00

$

$

Not available

602

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

603

Murray 71038

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

604

$6.49

$

Usually ships in 2-12 days

0

605

$3.99

$

In Stock, only 1 left!

0

606

Murray 585214 YZ

CHUTE COLLAR

$31.99

$

In Stock, only 3 left!

0

607

Murray 002X98MA

BOLT
(Superseded to 703584)

$3.99

$

In Stock, Qty 9

0

608

Murray 071067MA

WASHER, FLAT

$82.99

$

In Stock, only 1 left!

0

609

Murray 15X145MA

NUT, 1/4-20 NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Murray 337227MA

RETAINER, RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 1501282MA

RETAINER, RING OUTER

$26.99

$

In Stock, only 1 left!

0
