629904x85B - Murray 29" Snow Thrower (2001) Wheels Parts Diagram

29" Snow Thrower

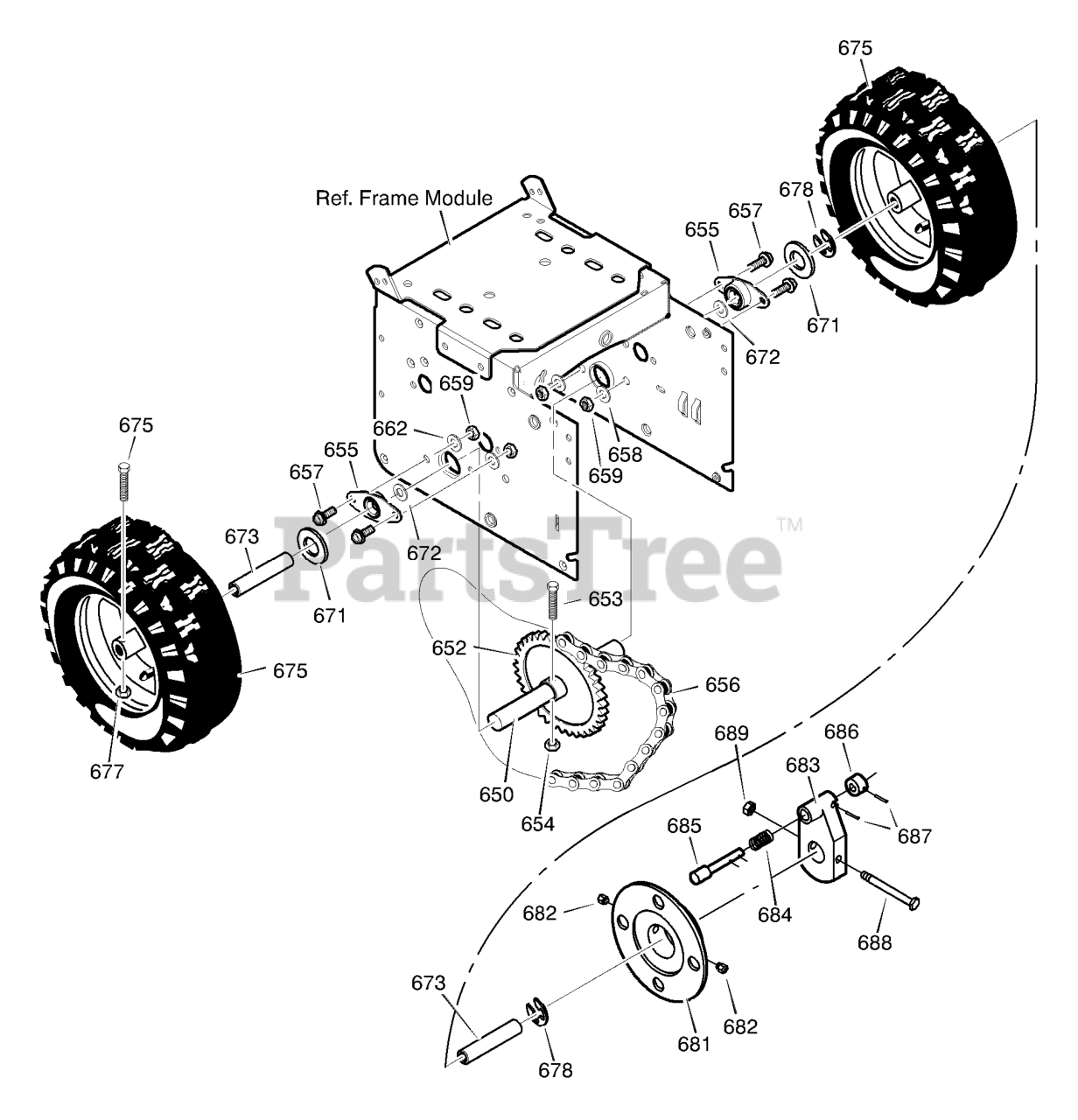

Wheels Parts Diagram

  • Title
650

Murray 1501105

SHAFT, AXLE

$41.99

$

Usually ships in 2-12 days

0

652

Murray 1501089

SPRKT & HUB
(Superseded to 1501089MA)

$42.99

$

In Stock, Qty 8

0

653

Murray 01X186MA

SCREW, 1/4-20X1.75

$4.49

$

Usually ships in 2-12 days

0

654

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

655

Murray 53266MA

RETAINER & BEARING ASSY

$48.99

$

Usually ships in 2-12 days

0

656

UNKNOWN

$

$

Not available

657

Murray 71003

SCREW, 3/8"-16x.75

$

$

Not available

658

Murray 71062

WASHER, LOCK

$

$

Not available

659

Murray 71044

NUT, 3/8"-16

$3.49

$

Usually ships in 2-12 days

0

662

UNKNOWN

$

$

Not available

671

Murray 712120MA

WASHER, FLAT

$4.99

$

In Stock, Qty 20+

0

672

UNKNOWN

$

$

Not available

673

Murray 1501138MA

BUSHING, WHEEL

$

$

Not available

675

Murray 583384MA

TIRE & RIM-RIGHT

$

$

Not available

676

Murray 577015MA

SCREW, 1/4-20X1.75 HH

$4.99

$

In Stock, Qty 5

0

677

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

678

Murray 239MA

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

680

Murray 584633MA

TIRE & RIM-LEFT

$

$

Not available

681

Murray 1501032E701

DISC, WHEEL

$32.99

$

Usually ships in 2-12 days

0

682

$4.49

$

Usually ships in 2-12 days

0

683

Murray 1501031E701

HUB, WHEEL LOCK

$

$

Currently unavailable

684

Murray 164X34MA

SPRING, COMPRESSION

$5.99

$

In Stock, Qty 19

0

685

Murray 1501033

PIN, LOCK

$

$

Currently unavailable

686

$23.99

$

Usually ships in 2-12 days

0

687

$

$

Currently unavailable

688

$5.49

$

In Stock, only 2 left!

0

689

$

$

Not available
