629904x81A - Yard King 29" Snow Thrower (2000) Wheels Assembly Parts Diagram

29" Snow Thrower

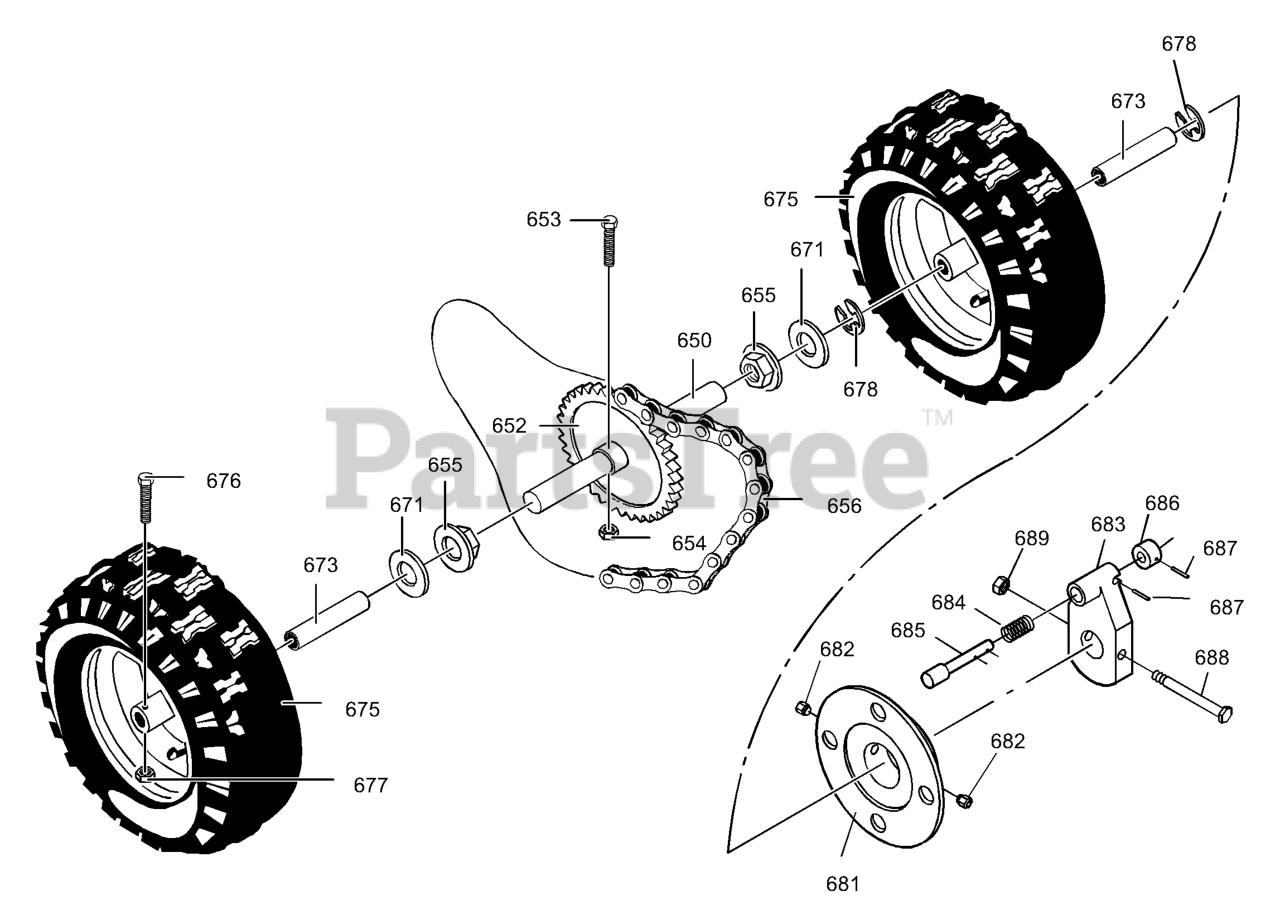

Wheels Assembly Parts Diagram

  • Title

650

Murray 585386

SHAFT, AXLE

$

$

Currently unavailable

652

Murray 583007

SPRKT & HUB

$

$

Not available

653

Murray 73839MA

SCREW, 1/4-20X2.25

$5.49

$

In Stock, only 4 left!

0

654

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

655

Murray 50648MA

RETAINER, BEARING

$

$

Not available

656

Murray 583013MA

CHAIN, ROLLER

$17.99

$

In Stock, Qty 6

0

671

Murray 712120MA

FLATWASHER

$4.99

$

In Stock, Qty 20+

0

673

Murray 585591MA

BUSHING, WHEEL

$6.49

$

In Stock, Qty 10

0

675

Murray 584633MA

TIRE & RIM

$

$

Not available

676

Murray 577015MA

SCREW, 1/4-20X1.75

$4.99

$

In Stock, Qty 5

0

677

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

678

Murray 239MA

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

681

Murray 1501032-853

DISC, WHEEL

$

$

Currently unavailable

682

Murray 2001086MA

SCREW

$4.49

$

Usually ships in 2-12 days

0

683

Murray 1501031-853

HUB, WHEEL LOCK

$

$

Currently unavailable

684

Murray 164X34MA

SPRING, COMPRESSION

$5.99

$

In Stock, Qty 19

0

685

Murray 1501033

PIN, LOCK

$

$

Currently unavailable

686

Murray 1501034MA

KNOB

$23.99

$

Usually ships in 2-12 days

0

687

Murray 032X78

PIN

$

$

Currently unavailable

688

Murray 73839MA

SCREW

$5.49

$

In Stock, only 4 left!

0

689

Murray 780029

NUT

$

$

Not available
