629904x81A - Yard King 29" Snow Thrower (2000) Auger Housing Assembly Parts Diagram

29" Snow Thrower

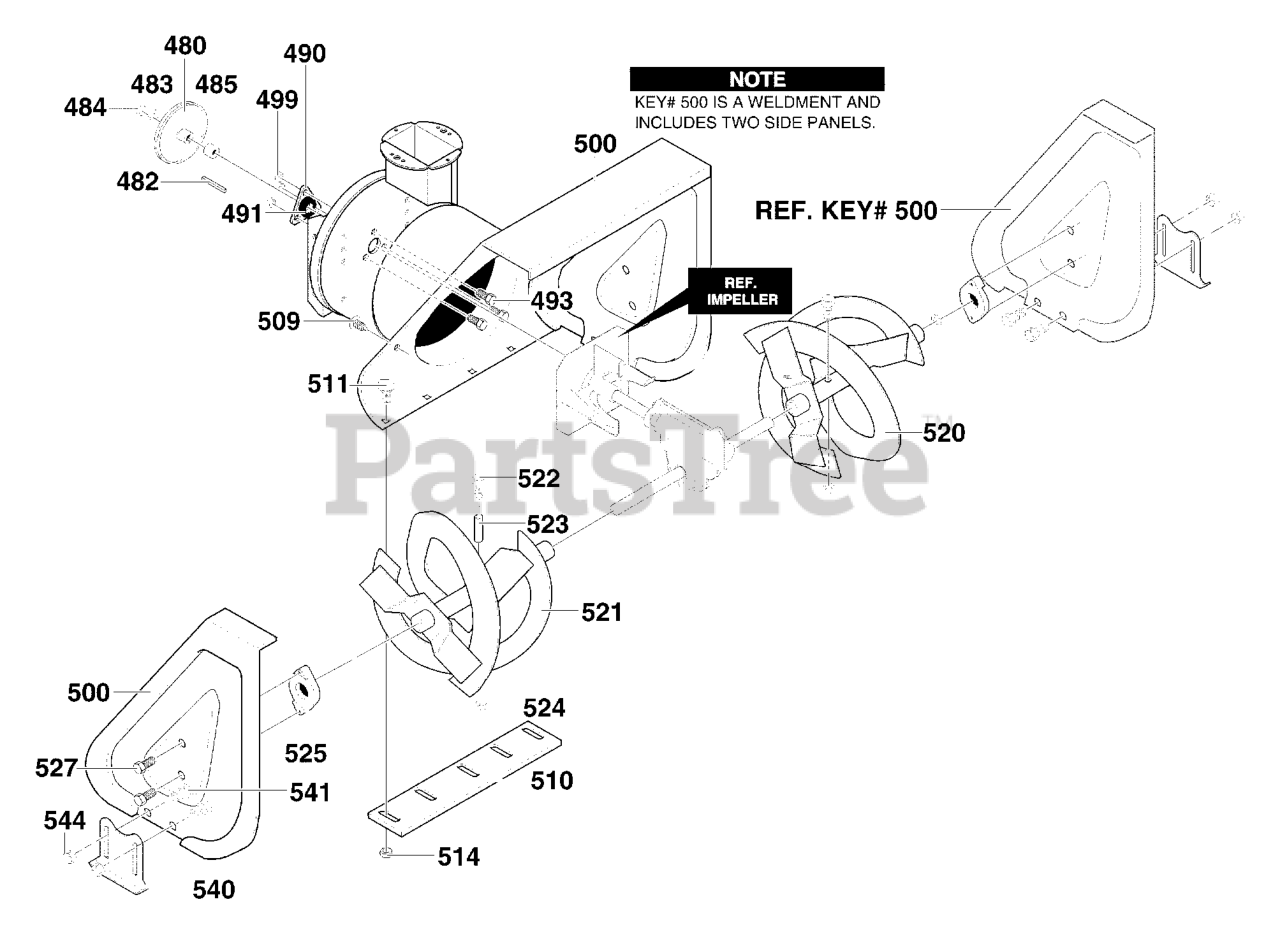

Auger Housing Assembly Parts Diagram

  • Title

480

Murray 583146MA

PULLEY, V4L

$

$

Not available

482

Murray 2001022MA

KEY, SQUARE

$4.49

$

In Stock, Qty 11

0

483

Murray 71074

WASHER, FLAT .53X1.00X.063
(Superseded to 71074MA)

$

$

Not available

484

Murray 712121MA

NUT, 1/2-20 REGHEXCTRLK

$4.49

$

In Stock, only 1 left!

0

485

Murray 334514MA

SPACER, SLEEVE

$7.99

$

Usually ships in 2-12 days

0

490

Murray 582960

RETAINER, BALL

$

$

Currently unavailable

491

Murray 043846

BEARING, BALL

$34.99

$

In Stock, only 1 left!

0

493

Murray 313676

SCREW, 5/16-18 x 0.75

$1.49

$

Usually ships in 2-12 days

0

499

Murray 710026

NUT, 5/16-18

$

$

Not available

500

Murray 761731-892

HOUSING, ASSY

$

$

Currently unavailable

509

Murray 760040MA

PLUG, CHRISTMAS TREE

$4.49

$

Usually ships in 2-12 days

0

510

Murray 760660-853

SCRAPER BLADE

$

$

Currently unavailable

511

Murray 340720MA

BOLT, 1/4-20X.75 CARR.
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

514

Murray 710026

NUT, 5/16-18 HEXWDFLLK WHIZ

$

$

Not available

520

Murray 760597-853

AUGER, LH

$

$

Currently unavailable

521

Murray 760598-853

AUGER, RH

$

$

Currently unavailable

522

Murray 9524MA

SCREW, 1/4-20X1.75
(Superseded to 703057)

$5.99

$

In Stock, only 3 left!

0

523

Murray 3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

524

Murray 73826

NUT, 1/4-20 REGHXCTRLK

$4.99

$

In Stock, Qty 20+

0

525

Murray 53757MA

BEARING, AUGER SHAFT

$9.99

$

In Stock, only 2 left!

0

527

Murray 70984

SCREW, 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

540

Murray 762376-853

SKID, HEIGHT ADJUST

$

$

Not available

541

Murray 340720MA

BOLT, 5/16-18X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

544

Murray 710026

NUT, 5/16-18 REGHEX

$

$

Not available
