629904x0A - Briggs & Stratton 29" Snow Thrower (2002) Discharge Chute Parts Diagram

29" Snow Thrower

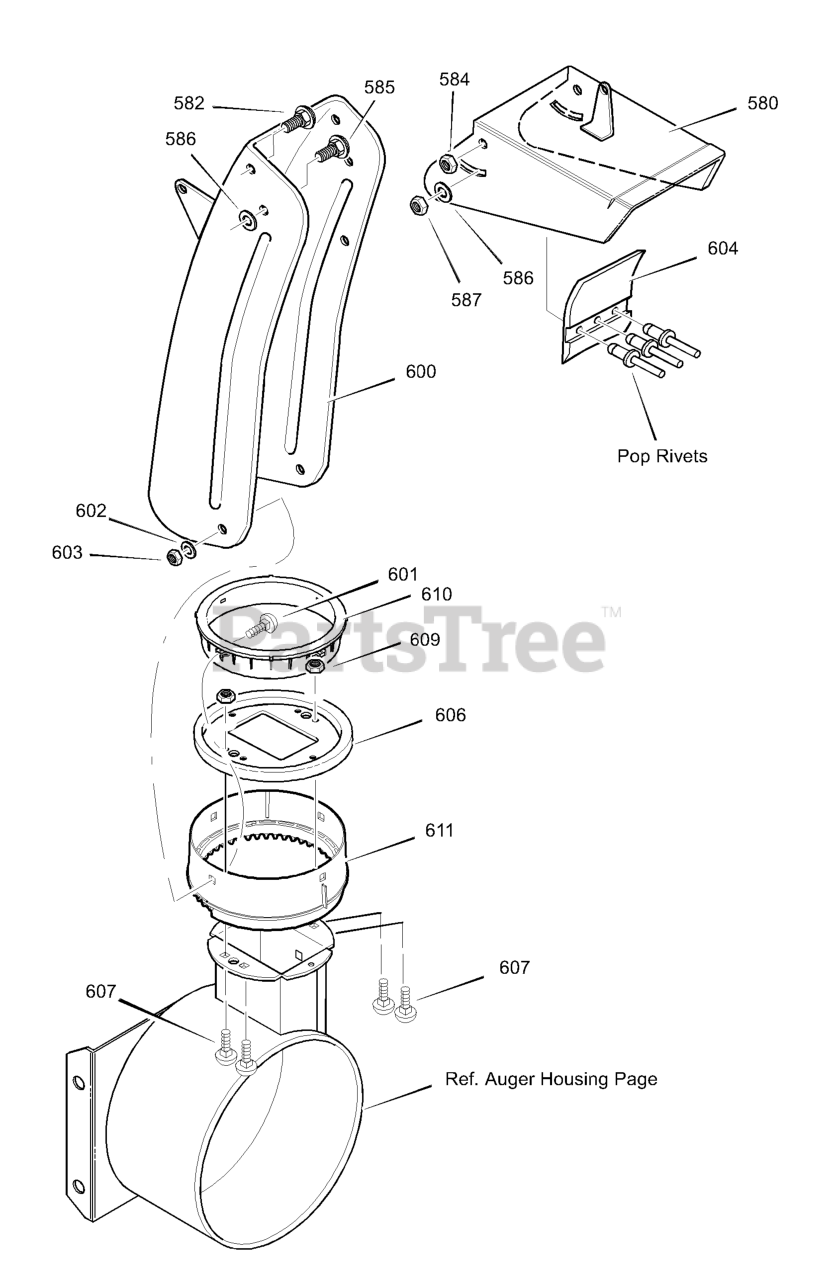

Discharge Chute Parts Diagram

  • Title

580

Murray 761168E700

CHUTE, UPPER W/REMOTE

$

$

Currently unavailable

582

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

584

Murray 71038

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

585

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

586

Murray 6711MA

PLASTIC WASHER

$3.99

$

Usually ships in 2-12 days

0

587

Murray 71038

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

600

Murray 761169E700

CHUTE, LOWER W/REMOTE

$

$

Currently unavailable

601

Murray 586280

BOLT

$

$

Not available

602

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

603

Murray 71038

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

604

Murray 762322MA

FLAP

$6.49

$

Usually ships in 2-12 days

0

605

Murray 760987MA

RIVET

$3.99

$

In Stock, only 1 left!

0

606

Murray 585214 YZ

CHUTE COLLAR

$31.99

$

In Stock, only 3 left!

0

607

Murray 340714MA

BOLT
(Superseded to 703101)

$3.99

$

In Stock, only 2 left!

0

609

Murray 15X145MA

NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Murray 337227MA

RETAINER, RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 1501476

RETAINER, RING OUTER

$

$

Not available
