62933 - Toro Lawn Blower, 5hp (SN: 008000001 - 008999999) (1988) HANDLE ASSEMBLY Parts Diagram

Lawn Blower, 5hp

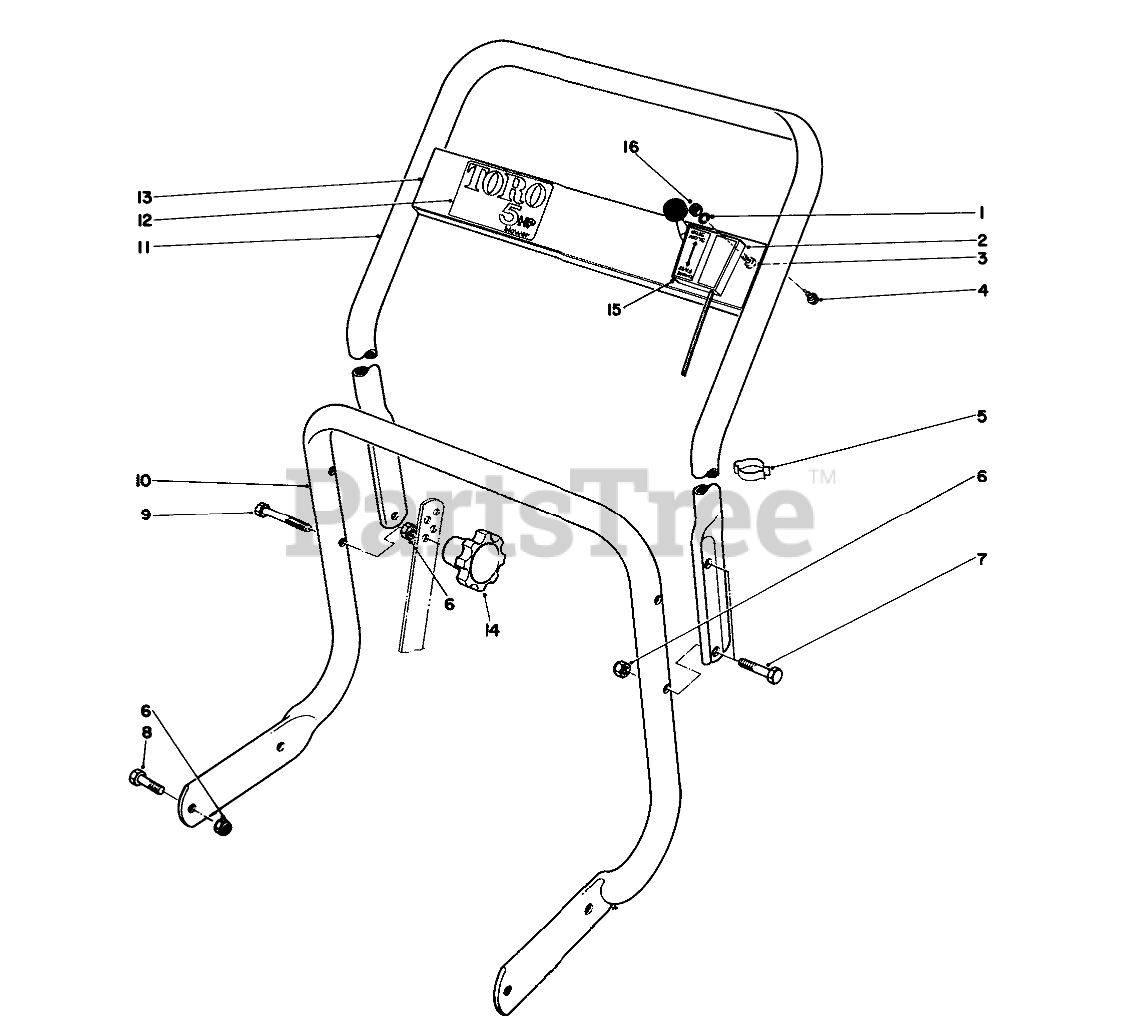

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3253-15

WASHER-LOCK

$2.49

$

Usually ships in 3-6 days

0

2

Toro 23-3390

Throttle Control (Incl. Ref. #15)

$

$

Not available

3

Toro 3250-1

8-32 X 1/2 RND HD MS

$

$

Not available

4

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

5

Toro 241247

Clip

$

$

Currently unavailable

6

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

7

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 20-5810

HANDLE

$

$

Not available

11

Toro 37-9240

UPPER HANDLE

$

$

Not available

12

Toro 20-7230

ESCUT PLATE DECAL

$

$

Not available

13

Toro 20-5770

BLOWER ESCUTCHEON PLT

$

$

Not available

14

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

15

Toro 2213-6

Cover-Throttle Control

$

$

Not available

16

Toro 3217-25

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

Toro 12-1149

Loose Parts

Note: Not illustrated

$

$

Not available
