62933 - Toro Lawn Blower, 5hp (SN: 008000001 - 008999999) (1988) ENGINE BRIGGS & STRATTON MODEL NO. 130202-1640-01 Parts Diagram

Lawn Blower, 5hp

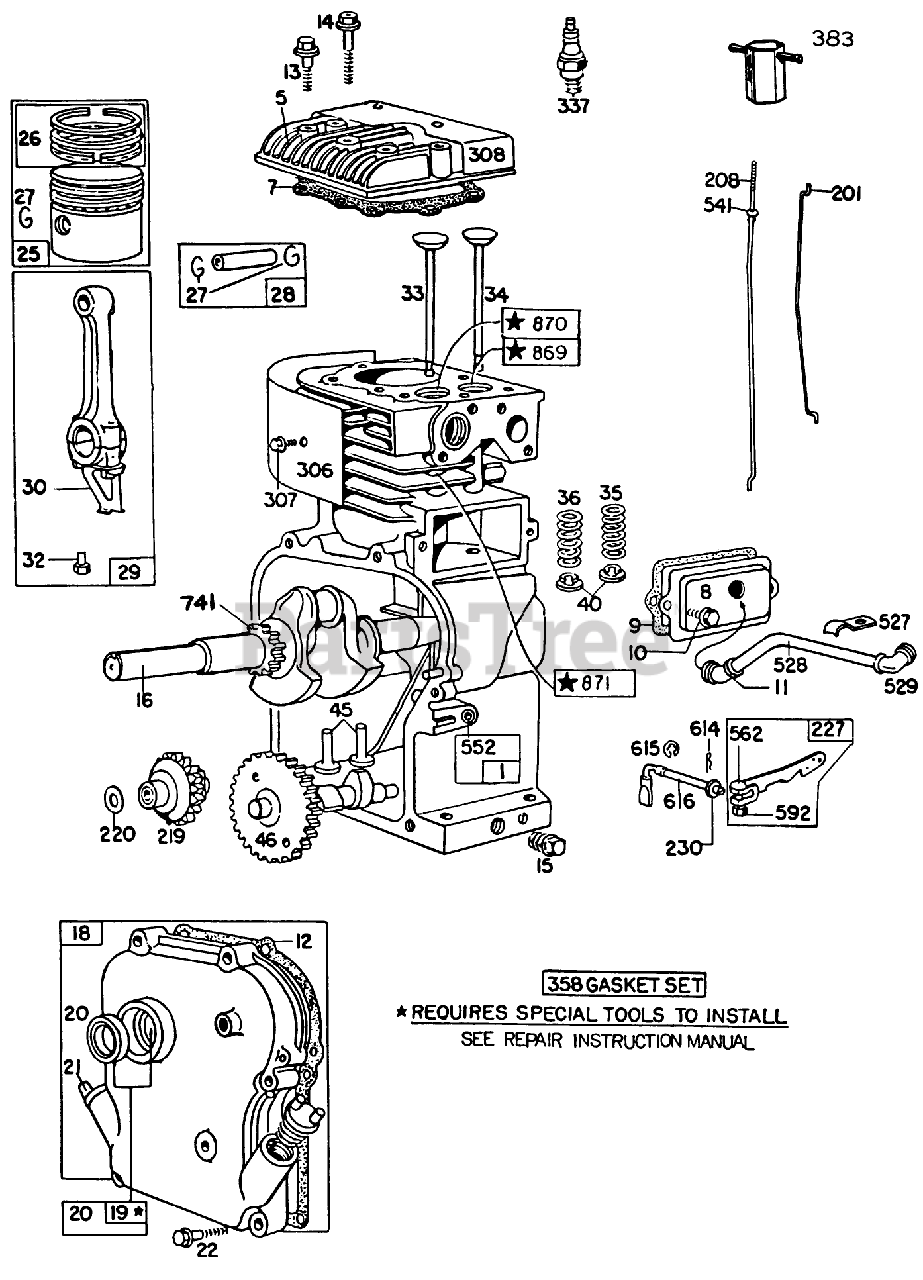

ENGINE BRIGGS & STRATTON MODEL NO. 130202-1640-01 Parts Diagram

  • Title

1

Briggs & Stratton 395990

Cylinder Assembly
(Superseded to 497144)

$537.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 297565

Bushing-Cylinder

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

23

Briggs & Stratton 297229

Flywheel

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 222443

Guard-Flywheel
(Superseded to 691732)

$9.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 299431

Housing-Rewind Starter

$

$

Not available

56

Briggs & Stratton 295871

Pulley-Rewind Starter (Includes 63" long rope)

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 393152

Grip-Starter Rope

$4.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 93067

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 394558

Housing-Starter Clutch
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Ball-Clutch

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298436

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221923

Screen-Rewind Starter

$

$

Not available

74

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

200

Briggs & Stratton 221480

Guide-Air
(Superseded to 691745)

$11.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 299410

Screw-Blower
(Superseded to 397719)

$43.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

333

Briggs & Stratton 397358

Armature Group

$53.99

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93414

Screw
(Superseded to 691621)

$7.49

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

608

Briggs & Stratton 390463

Starter-Rewind

$

$

Not available

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0
