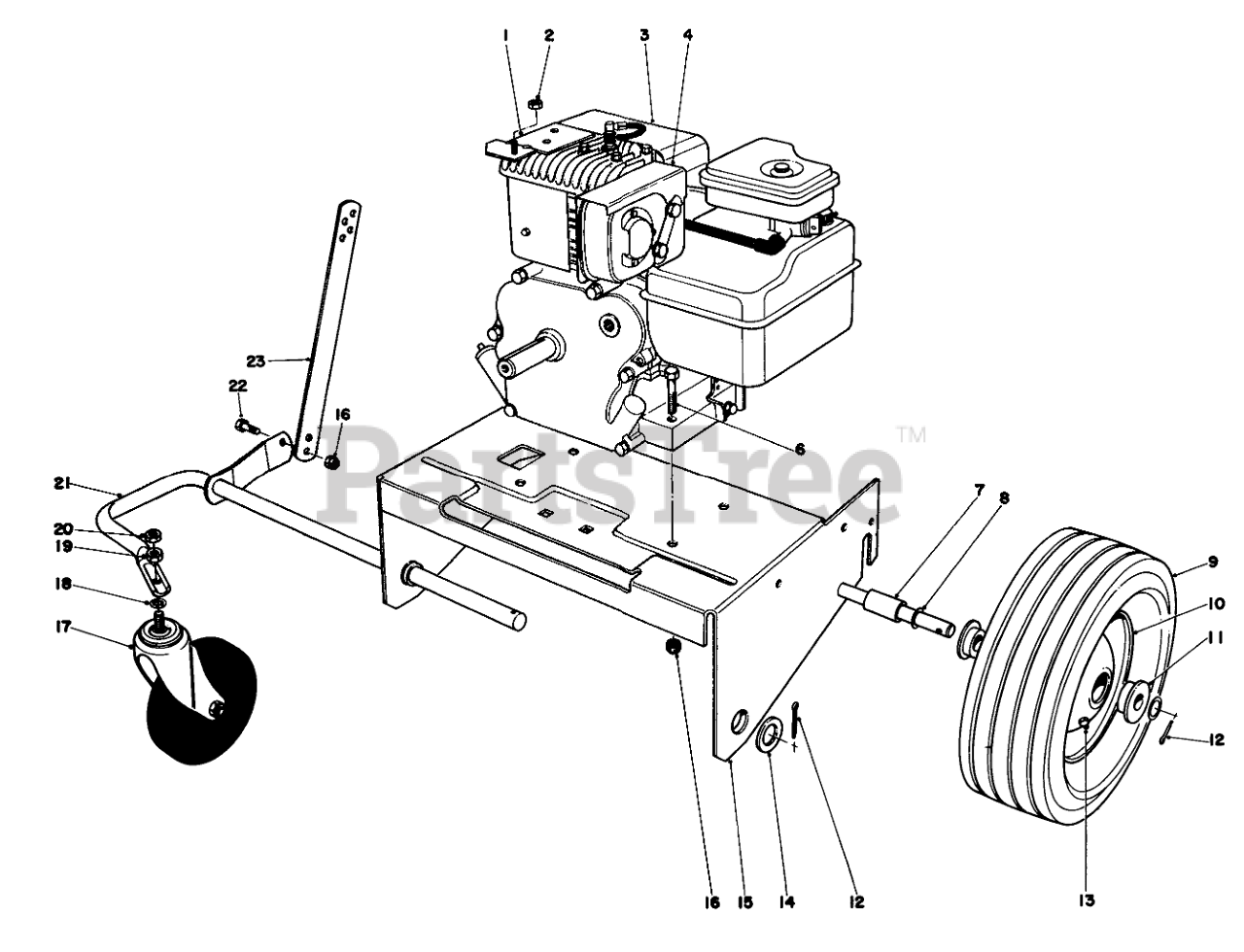

62933 - Toro Lawn Blower, 5hp (SN: 004000001 - 004999999) (1984) ENGINE AND BASE ASSEMBLY Parts Diagram

Lawn Blower, 5hp

ENGINE AND BASE ASSEMBLY Parts Diagram

  • Title

1

Toro 39-4680

MTG BRKT WA B

$56.99

$

Usually ships in 3-6 days

0

2

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

3

Toro 221-643

Engine

$

$

Not available

4

Toro 39-4690

HEAT SHIELD

$

$

Not available

6

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 20-5410

SPACER-AXLE

$31.99

$

Usually ships in 3-6 days

0

8

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

9

Toro 234-22

3.50X10 SEMIPNEU TIRE

$

$

Not available

10

Toro 20-3350

Wheel & Tire Assembly (Incl.Ref. #9, 11&13)

$

$

Not available

11

Toro 256-241

BUSHING

$

$

Not available

12

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14

Toro 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

15

Toro 20-5570

BLWR ENG MTG PLT WA

$

$

Not available

16

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

17

Toro 23-3320

CASTER

$213.99

$

Usually ships in 3-6 days

0

18

Toro 32544

Lockwasher

$

$

Currently unavailable

19

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

20

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

21

Toro 23-3370

FRT WHL SUPPORT WA

$

$

Not available

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 37-9460

HT ADJ BAR

$

$

Not available

Toro 8-6499

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
