62933 - Toro Lawn Blower, 5hp (SN: 004000001 - 004999999) (1974) ENGINE AND BASE ASSEMBLY Parts Diagram

Lawn Blower, 5hp

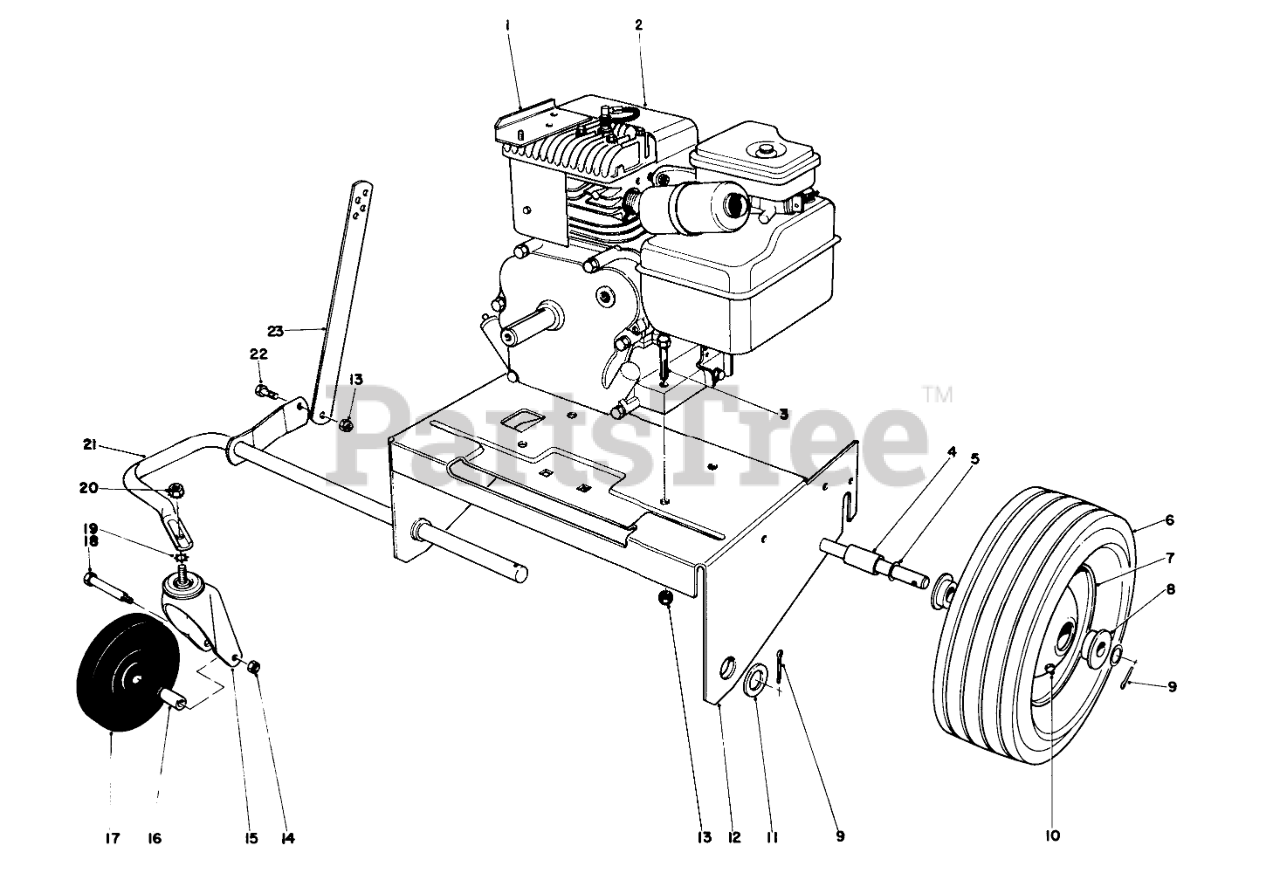

ENGINE AND BASE ASSEMBLY Parts Diagram

  • Title

1

Toro 20-5540

MOUNTING BRKT WA

$

$

Not available

2

Toro 221-461

Engine

$

$

Currently unavailable

3

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 20-5410

SPACER-AXLE

$31.99

$

Usually ships in 3-6 days

0

5

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

6

Toro 234-22

3.50X10 SEMIPNEU TIRE

$

$

Not available

7

Toro 241-118

Rim
(Superseded to 20-3350)

$

$

Not available

8

Toro 256-241

BUSHING

$

$

Not available

9

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

10

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

11

Toro 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

12

Toro 20-5570

BLWR ENG MTG PLT WA

$

$

Not available

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

14

Toro 242-58

Nut

$

$

Not available

15

Toro 242-56

Horn

$

$

Currently unavailable

16

Toro 242-59

Wheel Bushing

$

$

Currently unavailable

17

Toro 241-120

Wheel

$

$

Not available

18

Toro 242-57

Axle

$

$

Not available

19

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

20

Toro 32149-4

Nut

$

$

Currently unavailable

21

Toro 20-5710

Front Wheel Support

$

$

Currently unavailable

22

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

23

Toro 20-6950

Bar Height Adjustment
(Superseded to 37-9460)

$

$

Not available

Toro 20-5850

Caster Wheel Assembly (Incl. Ref. No. 14-18)

Note: Not illustrated

$

$

Currently unavailable

Toro 20-3350

Wheel Assembly (Incl. Ref. No. 6-8 and 10)

Note: Not illustrated

$

$

Not available
