62933 - Toro Lawn Blower, 5hp (SN: 003000001 - 003999999) (1983) ENGINE AND BASE ASSEMBLY Parts Diagram

Lawn Blower, 5hp

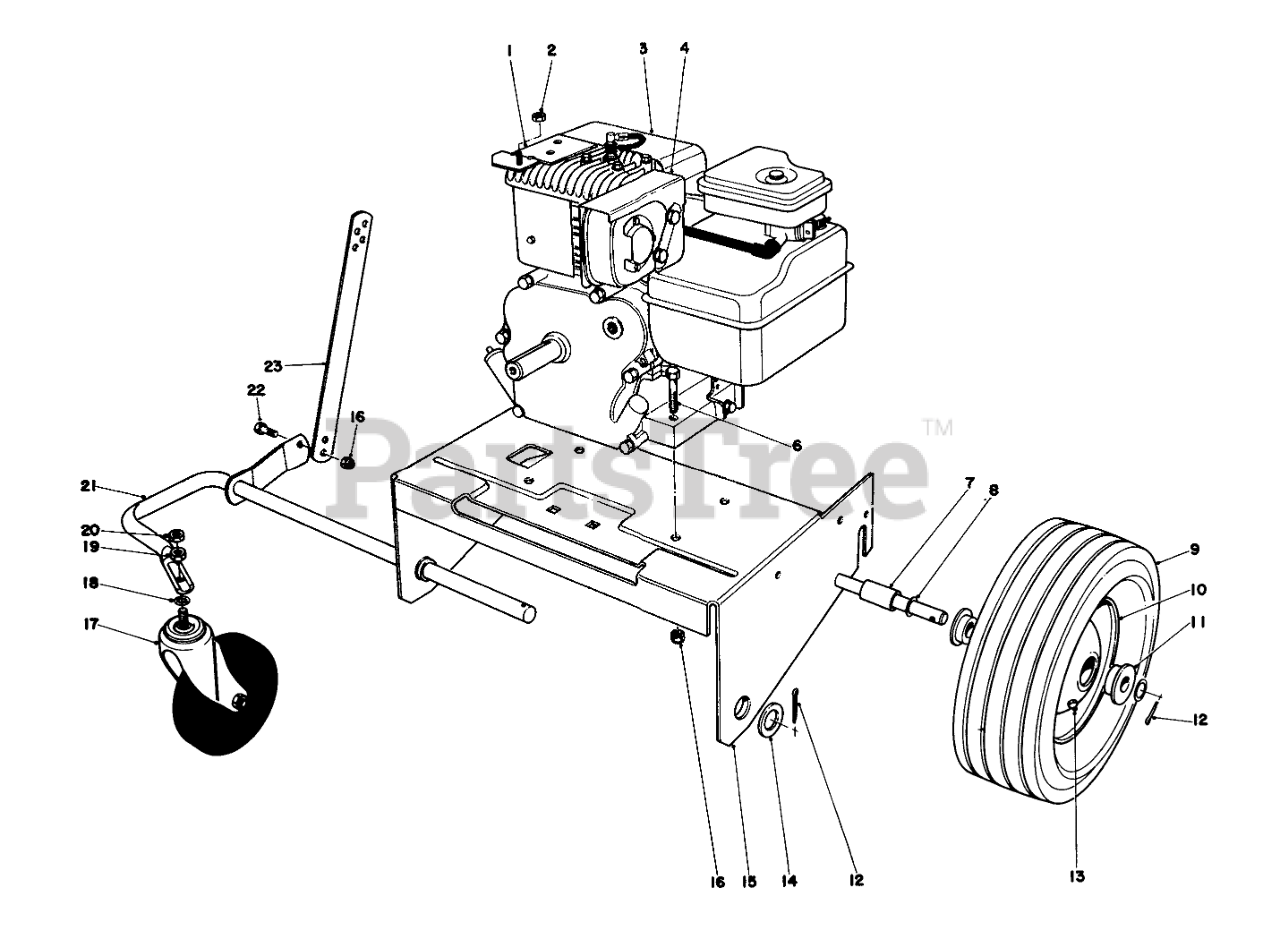

ENGINE AND BASE ASSEMBLY Parts Diagram

  • Title

1

Toro 394680

Mounting Bracket

$

$

Currently unavailable

2

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

3

Toro 221-643

Engine

$

$

Not available

4

Toro 394690

Heat Shield-Muffler

$

$

Currently unavailable

6

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 20-5410

SPACER-AXLE

$31.99

$

Usually ships in 3-6 days

0

8

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

9

Toro 23422

Tire

$

$

Currently unavailable

10

Toro 20-3350

Wheel & Tire Assembly (Incl. Ref . #9,11 & 13)

$

$

Not available

11

Toro 256-241

BUSHING

$

$

Not available

12

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

13

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

14

Toro 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

15

Toro 20-5570

BLWR ENG MTG PLT WA

$

$

Not available

16

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

17

Toro 23-3320

CASTER

$213.99

$

Usually ships in 3-6 days

0

18

Toro 3254-4

WASHER-LOCK/INT

$0.99

$

In Stock, only 1 left!

0

19

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

20

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

21

Toro 23-3370

FRT WHL SUPPORT WA

$

$

Not available

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 37-9460

HT ADJ BAR

$

$

Not available

Toro 8-6499

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
