62933 - Toro Lawn Blower, 5hp (SN: 000000001 - 000999999) (1980) BLOWER ASSEMBLY Parts Diagram

Lawn Blower, 5hp

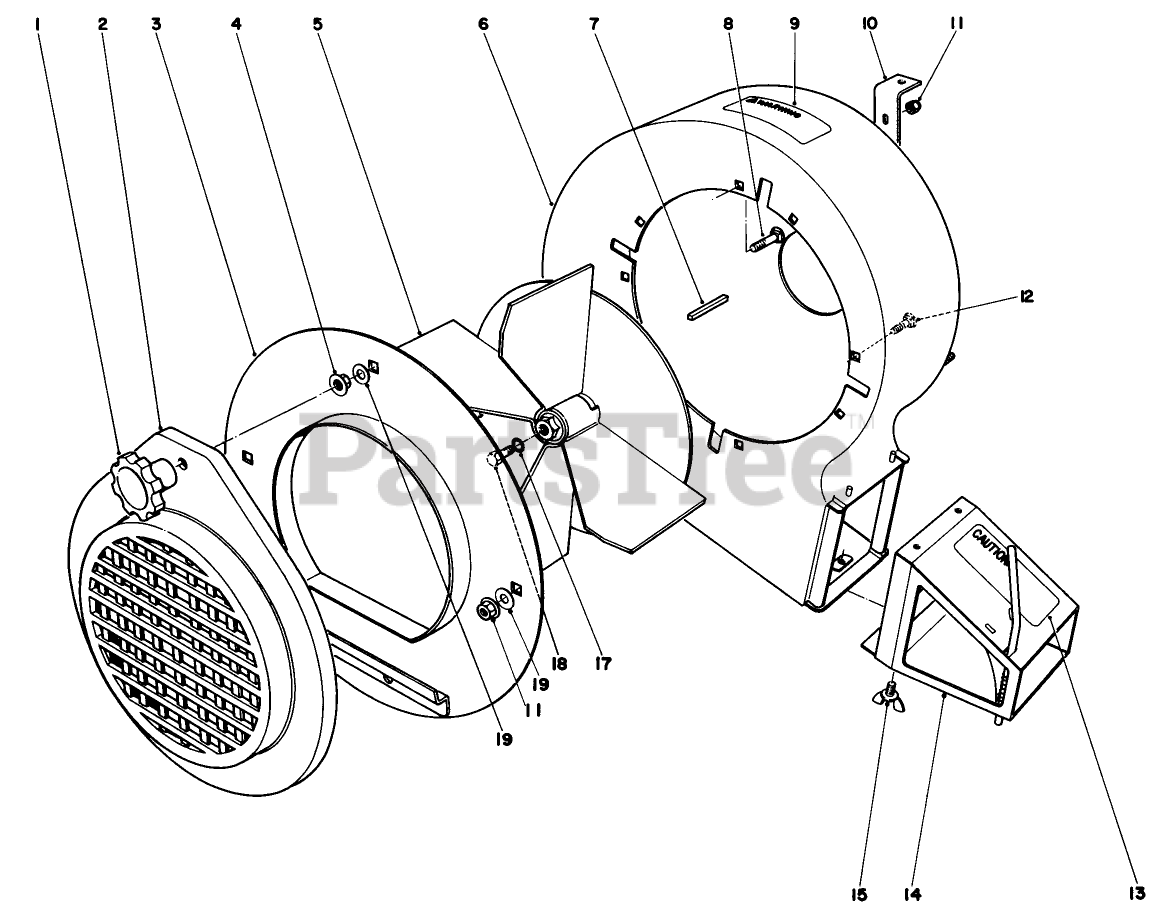

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

2

Toro 20-5780

INTAKE-BLOWER

$107.99

$

Usually ships in 3-6 days

0

3

Toro 20-5450

Blower Cover
(Superseded to 20-5450-01)

$

$

Not available

4

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

5

Toro 37-9230

Fan
(Superseded to 37-9230-03)

$

$

Not available

6

Toro 20-5890

Blower Housing
(Superseded to 20-5890-01)

$1072.99

$

Usually ships in 3-6 days

0

7

Toro 7-0036

KEY-SQUARE

$

$

Not available

8

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Toro 37-9260

WARNING DECAL

$

$

Not available

10

Toro 39-4660

Bracket-Housing
(Superseded to 39-4660-03)

$

$

Not available

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

12

Toro 3230-19

SCREW-CARR

$5.99

$

In Stock, only 3 left!

0

13

Toro 20-7900

EXHAUST DECAL

$

$

Not available

14

Toro 20-6570

Blower, Exhaust (Incl.Ref. #13)

$

$

Not available

15

Toro 3288-6

1/4 - 20 3/4 WING SCR

$8.49

$

Usually ships in 3-6 days

0

17

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 3235-17

Capscrew
(Superseded to 40-6990)

$

$

Not available

19

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

Toro 8-6499

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
