62925 - Toro Lawn Vacuum (SN: 270000001 - 270999999) (2007) GOVERNOR ASSEMBLY BRIGGS AND STRATTON 126302-0210-B1 Parts Diagram

Lawn Vacuum

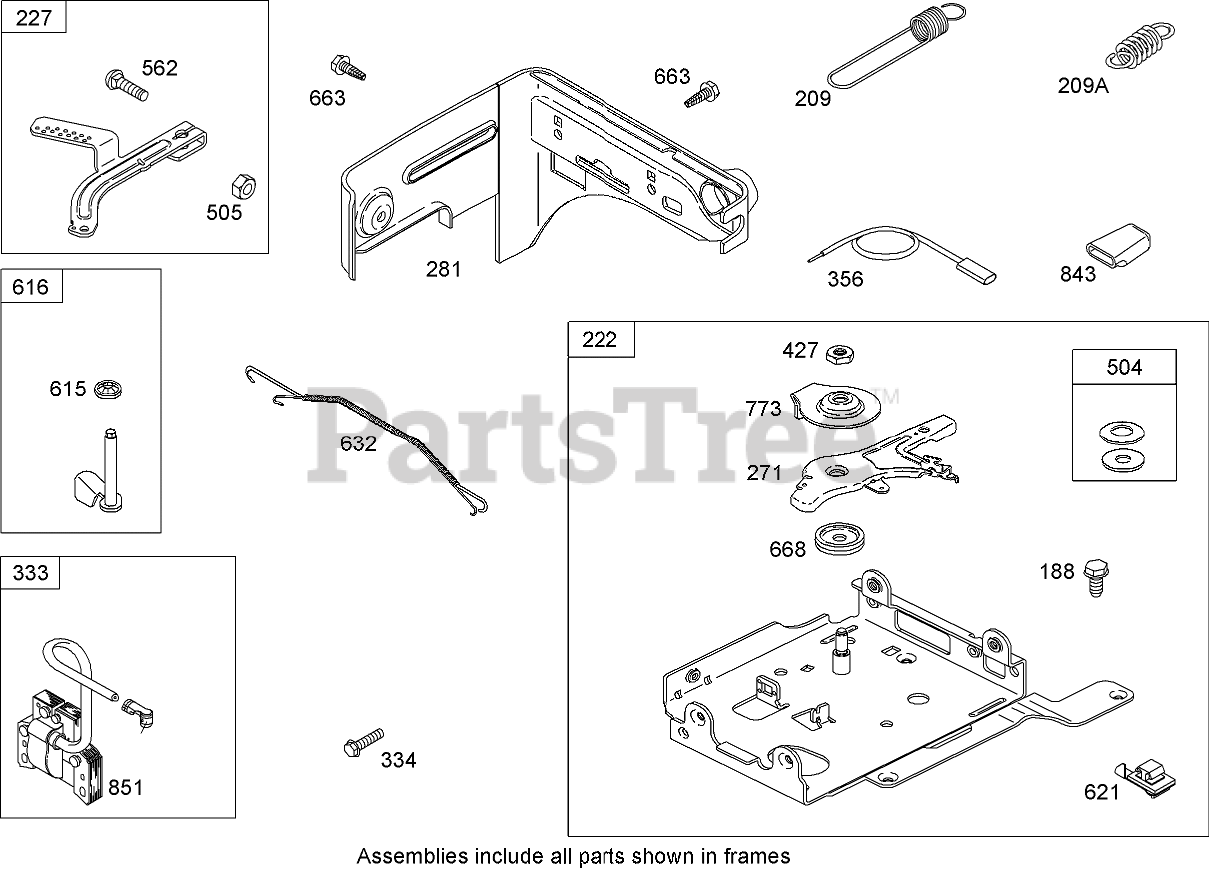

GOVERNOR ASSEMBLY BRIGGS AND STRATTON 126302-0210-B1 Parts Diagram

  • Title

188

Briggs & Stratton 699479

Screw (Control Bracket)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 692571

Spring-Governor

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!

0

209A

Briggs & Stratton 691278

Spring-Governor

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 2 left!

0

222

Briggs & Stratton 699589

Bracket-Control
(Superseded to 793107)

Note: Obtain parts from www.briggsandstratton.com

$45.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 692573

Lever-Control, Governor
(Superseded to 794367)

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

In Stock, Qty 6

0

271

Briggs & Stratton 694256

Lever-Control

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

Usually ships in 2-12 days

0

281

Briggs & Stratton 699639

Panel-Control
(Superseded to 793122)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 695711

Armature-Magneto
(Superseded to 796964)

Note: Obtain parts from www.briggsandstratton.com

$55.99

$

In Stock, Qty 10

0

334

Briggs & Stratton 699477

Screw (Magneto Armature)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 692390

Wire-Stop

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

427

Briggs & Stratton 694255

Nut (Control Bracket)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 1 left!

0

504

Briggs & Stratton 694254

Friction Washer Set
(Superseded to 695383)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

Nut (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 691112

Bolt (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

615

Briggs & Stratton 692576

Retainer-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 692547

Crank-Governor

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

632

Briggs & Stratton 693408

Link-Spring, Mechanical Governor

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, only 3 left!

0

663

Briggs & Stratton 699206

Screw (Control Panel)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 3 left!

0

668

Briggs & Stratton 694257

Spacer (Control Bracket)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

773

Briggs & Stratton 694258

Retainer

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 1 left!

0

843

Briggs & Stratton 695588

Sleeve-Lever

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

851

Toro 493880s

Terminal-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
