62925 - Toro Lawn Vacuum (SN: 270000001 - 270999999) (2007) CRANKCASE ASSEMBLY BRIGGS AND STRATTON 126302-0210-B1 Parts Diagram

Lawn Vacuum

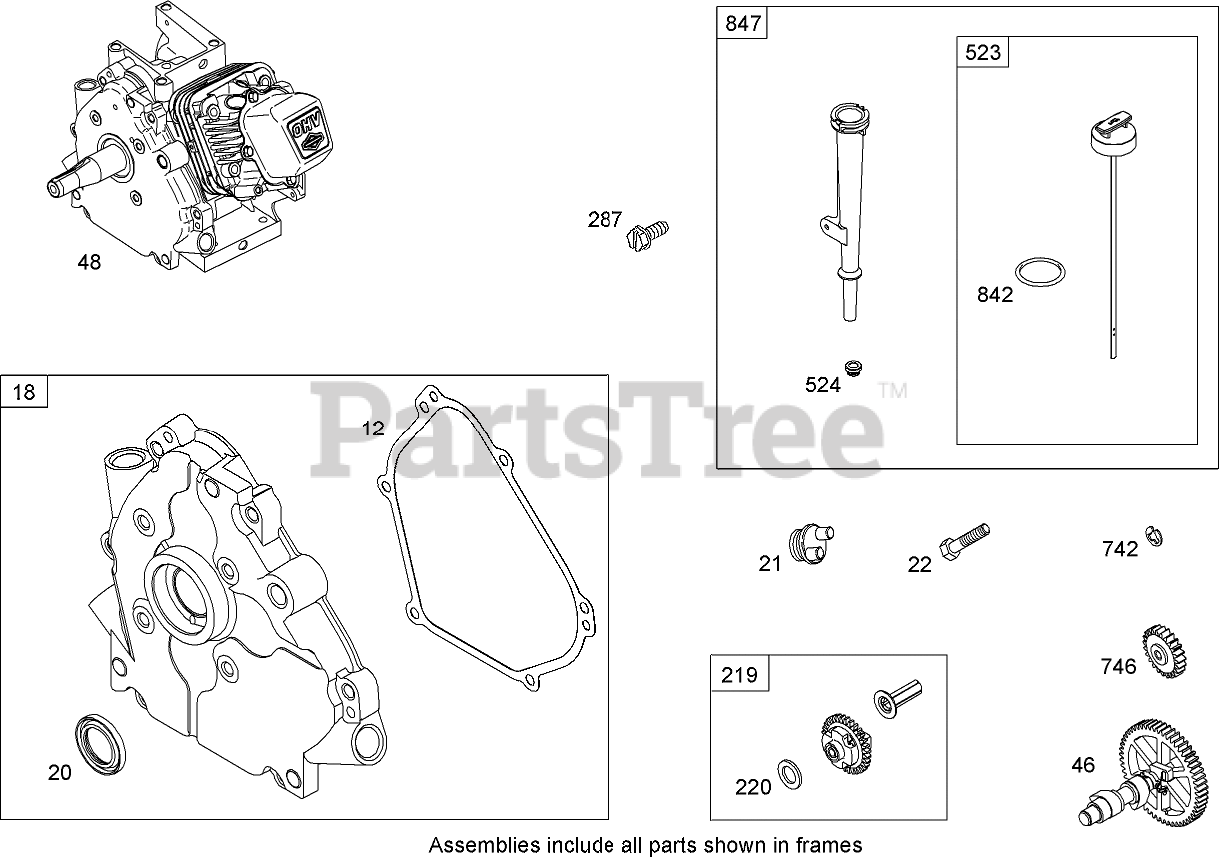

CRANKCASE ASSEMBLY BRIGGS AND STRATTON 126302-0210-B1 Parts Diagram

  • Title

12

Briggs & Stratton 699485

Gasket-Cover, Crankcase

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 15

0

12

Briggs & Stratton 699485

Gasket-Cover, Crankcase

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.99

$

In Stock, Qty 15

0

18

Briggs & Stratton 699696

Cover-Crankcase

Note: Obtain parts from www.briggsandstratton.com

$199.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 692550

Seal-Oil (P-T-O Side)

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 692550

Seal-Oil (P-T-O Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 281658S

Cap-Fill, Oil

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 699478

Screw (Crankcase Sump Cover)
(Superseded to 594761)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 693404

Camshaft

Note: Obtain parts from www.briggsandstratton.com

$73.99

$

In Stock, Qty 5

0

48

Short Block (Not Available at this time)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

219

Briggs & Stratton 693578

Gear-Governor

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

Usually ships in 2-12 days

0

220

Briggs & Stratton 691724

Washer (Governor Gear)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 2 left!

0

287

Briggs & Stratton 699629

Screw (Dipstick Tube)
(Superseded to 699234)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

523

Briggs & Stratton 693618

Dipstick

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 281370S

Seal-Tube, Dipstick

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 20+

0

742

Briggs & Stratton 692564

Retainer-E Ring

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

746

Briggs & Stratton 692566

Gear-Idler
(Superseded to 790278)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

Seal, O-Ring (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 693617

Dipstick and Tube ASM

Note: Obtain parts from www.briggsandstratton.com

$22.99

$

In Stock, only 4 left!

0
