62925 - Toro Lawn Vacuum (SN: 260000001 - 260999999) (2006) ENGINE AND FRONT WHEEL ASSEMBLY Parts Diagram

Lawn Vacuum

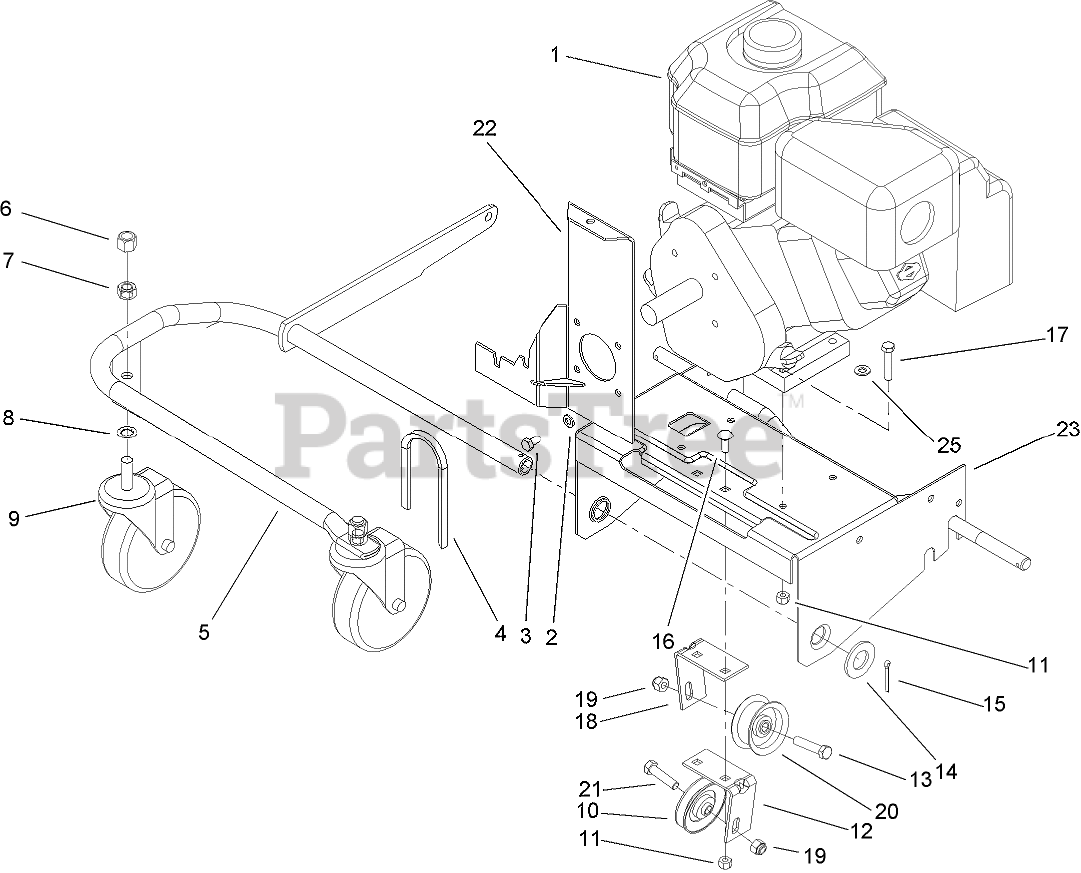

ENGINE AND FRONT WHEEL ASSEMBLY Parts Diagram

  • Title

1

ENGINE-BRIGGS AND STRATTON, 1263020245E1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS AND STRATTON, 1263020245E1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

4

Toro 20-5990

BELT-V

$31.99

$

Usually ships in 3-6 days

0

5

Toro 93-4146-03

FRONT WHEEL SUPPORT ASM

$

$

Not available

6

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

8

Toro 3254-4

WASHER-LOCK/INT

$0.99

$

In Stock, only 1 left!

0

9

Toro 23-3320

CASTER

$243.99

$

Usually ships in 3-6 days

0

10

Toro 12-5820

PULLEY-IDLER

$29.99

$

In Stock, Qty 6

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 20-8690-03

BRACKET-IDLER MOUNT, LH

$

$

Not available

13

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

15

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

16

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

18

Toro 20-8680-03

BRACKET-IDLER MOUNT, RH

$

$

Not available

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

20

Toro 12-6700

PULLEY-IDLER

$29.99

$

In Stock, only 1 left!

0

21

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 105-1232-03

STABALIZER BRACKET ASM

$

$

Not available

23

Toro 20-5560-03

PLATE-ENGINE

$

$

Not available

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
