62925 - Toro Lawn Vacuum (SN: 260000001 - 260999999) (2006) CYLINDER ASSEMBLY BRIGGS AND STRATTON 126302-0245-E1 Parts Diagram

Lawn Vacuum

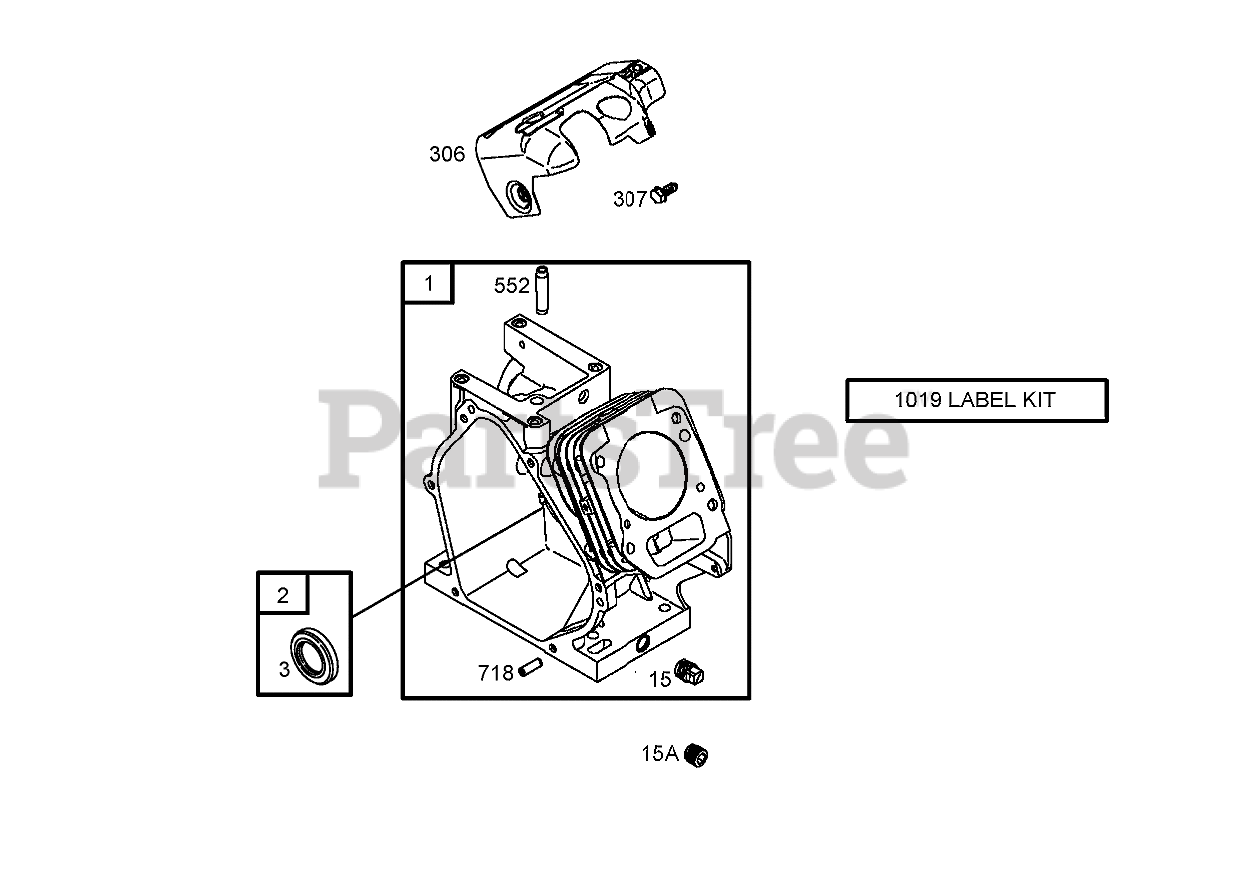

CYLINDER ASSEMBLY BRIGGS AND STRATTON 126302-0245-E1 Parts Diagram

  • Title

1

Briggs & Stratton 699510

Cylinder ASM

Note: Obtain parts from www.briggsandstratton.com

$217.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Bushing and Seal Kit
(Superseded to 796961)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 13

0

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.49

$

In Stock, Qty 13

0

15

Briggs & Stratton 691686

Plug-Drain, Oil (Square Head)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 1 left!

0

15A

Briggs & Stratton 691682

Plug-Drain, Oil (Flush)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 693610

Shield-Cylinder
(Superseded to 795334)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 699483

Screw (Cylinder Shield)
(Superseded to 794822)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 692346

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

1019

Briggs & Stratton 694852

Label Kit

Note: Obtain parts from www.briggsandstratton.com

$32.99

$

Usually ships in 2-12 days

0
