62925 - Toro Lawn Vacuum (SN: 260000001 - 260999999) (2006) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 126302-0245-E1 Parts Diagram

Lawn Vacuum

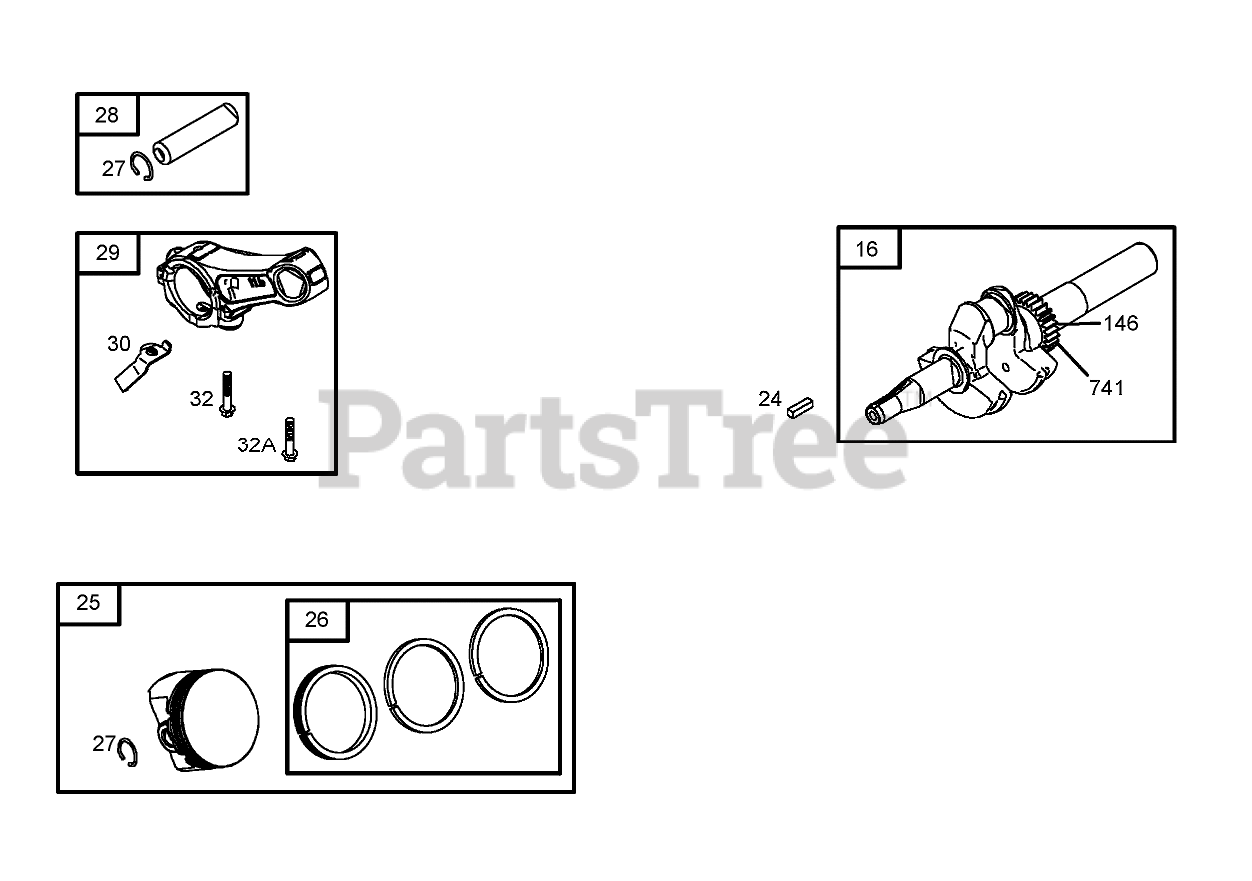

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 126302-0245-E1 Parts Diagram

  • Title

16

Briggs & Stratton 699452

Crankshaft
(Superseded to 797076)

Note: Obtain parts from www.briggsandstratton.com

$192.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 790359

Piston ASM
(Superseded to 799063)

Note: Obtain parts from www.briggsandstratton.com

$91.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 694168

Piston ASM (.020in Oversize)
(Superseded to 799064)

Note: Obtain parts from www.briggsandstratton.com

$120.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499631

Ring Set (Standard)

Note: Obtain parts from www.briggsandstratton.com

$53.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 692786

Ring Set (.020in Oversize)

Note: Obtain parts from www.briggsandstratton.com

$55.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691866

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 690124

Rod-Connecting
(Superseded to 798813)

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 692562

Dipper-Rod, Connecting
(Superseded to 791584)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 1 left!

0

32

Briggs & Stratton 691664

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 695759

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 2 left!

0

146

Briggs & Stratton 690979

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 8

0

741

Briggs & Stratton 695087

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

Usually ships in 2-12 days

0
