62925 - Toro Lawn Vacuum (SN: 250000001 - 250999999) (2005) MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 126302-0245-E1 Parts Diagram

Lawn Vacuum

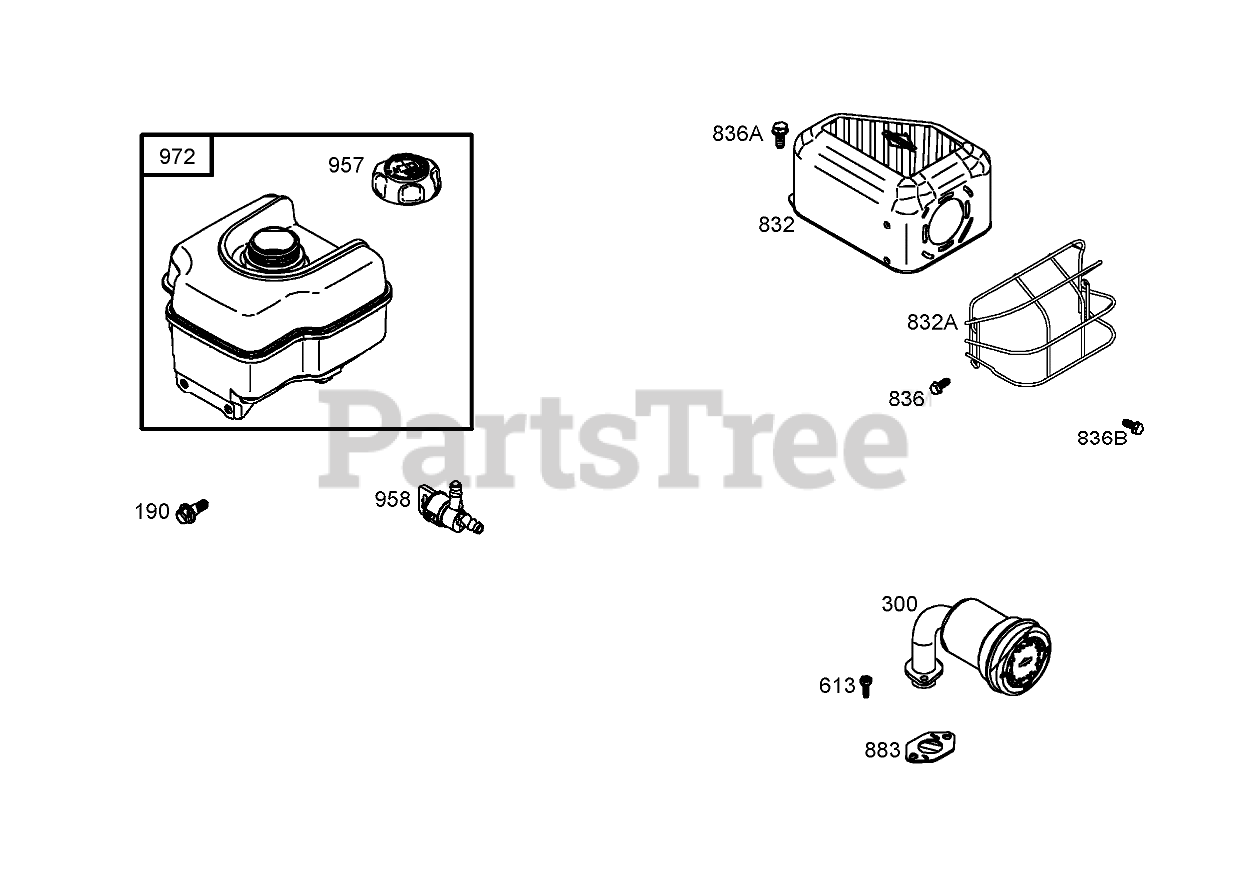

MUFFLER AND FUEL TANK ASSEMBLY BRIGGS AND STRATTON 126302-0245-E1 Parts Diagram

  • Title
300

Briggs & Stratton 693593

Muffler

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

In Stock, only 1 left!

0

190

Briggs & Stratton 699220

Screw (Fuel Tank)
(Superseded to 597133)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 6

0

613

Briggs & Stratton 699209

Screw
(Superseded to 791972)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 3 left!

0

832

Briggs & Stratton 693583

Guard-Muffler
(Superseded to 593953)

Note: Obtain parts from www.briggsandstratton.com

$45.99

$

In Stock, only 1 left!

0

832A

Briggs & Stratton 696516

Guard-Muffler

Note: Obtain parts from www.briggsandstratton.com

$50.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 699204

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

836A

Briggs & Stratton 699632

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

836B

Briggs & Stratton 699203

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.49

$

In Stock, Qty 20+

0

957

Briggs & Stratton 694261

Cap-Tank, Fuel
(Superseded to 792647)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 20+

0

958

Briggs & Stratton 698180

Valve-Shut Off, Fuel

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, Qty 20+

0

972

Briggs & Stratton 694260

Tank-Fuel
(Superseded to 799863)

Note: Obtain parts from www.briggsandstratton.com

$89.99

$

In Stock, Qty 9

0
