62925 - Toro Lawn Vacuum (SN: 250000001 - 250999999) (2005) CYLINDER HEAD ASSEMBLY BRIGGS AND STRATTON 126302-0245-E1 Parts Diagram

Lawn Vacuum

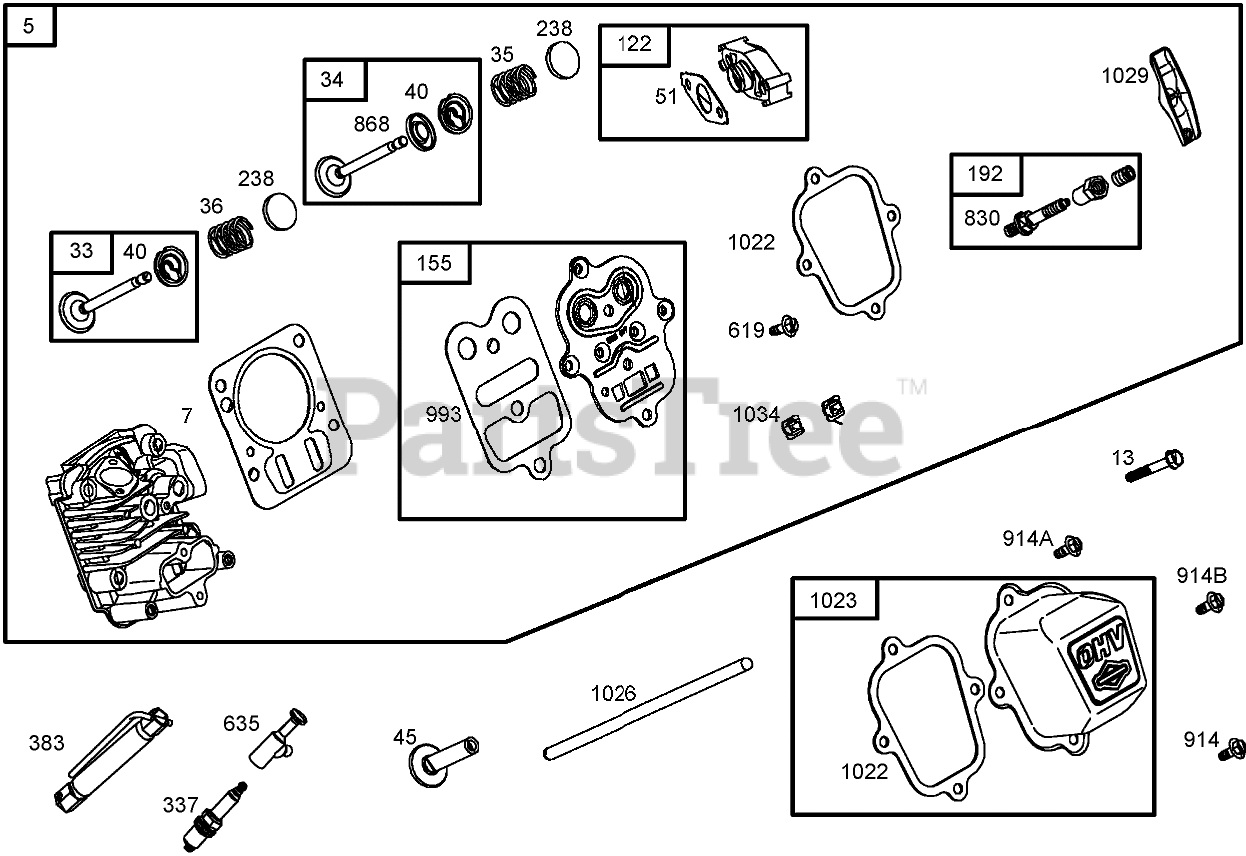

CYLINDER HEAD ASSEMBLY BRIGGS AND STRATTON 126302-0245-E1 Parts Diagram

  • Title

5

Briggs & Stratton 699486

Head-Cylinder
(Superseded to 594514)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

7

Briggs & Stratton 698210

Gasket-Head, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 16

0

7

Briggs & Stratton 698210

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.99

$

In Stock, Qty 16

0

7

Briggs & Stratton 698210

Gasket-Head, Cylinder

Note: Included in Valve Gasket Set (Ref. No. 1095)

$8.99

$

In Stock, Qty 16

0

13

Briggs & Stratton 699482

Screw (Cylinder Head)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 499642

Valve-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 499641

Valve-Intake
(Superseded to 795443)

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 691304

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 691304

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 2 left!

0

40

Briggs & Stratton 692194

Retainer-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 9

0

45

Briggs & Stratton 690977

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692555

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$3.99

$

In Stock, only 4 left!

0

51

Briggs & Stratton 692555

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.99

$

In Stock, only 4 left!

0

51

Briggs & Stratton 692555

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$3.99

$

In Stock, only 4 left!

0

122

Briggs & Stratton 693749

Spacer-Carburetor
(Superseded to 795643)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 8

0

122

Briggs & Stratton 693749

Spacer-Carburetor
(Superseded to 795643)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$13.99

$

In Stock, Qty 8

0

122

Briggs & Stratton 693749

Spacer-Carburetor
(Superseded to 795643)

Note: Included in Engine Gasket Set (Ref. No. 358)

$13.99

$

In Stock, Qty 8

0

155

Briggs & Stratton 698214

Plate-Head, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 694543

Adjuster-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

238

Briggs & Stratton 691300

Cap-Valve

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 9

0

337

Briggs & Stratton 691043

Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19374

Wrench-Spark Plug
(Superseded to 19576S)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

619

Briggs & Stratton 699230

Screw (Cylinder Head Plate)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

Boot-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

830

Briggs & Stratton 694544

Stud-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 692044

Seal-Valve
(Superseded to 795440)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 9

0

868

Briggs & Stratton 692044

Seal-Valve
(Superseded to 795440)

Note: Included in Engine Gasket Set (Ref. No. 358)

$13.99

$

In Stock, Qty 9

0

868

Briggs & Stratton 692044

Seal-Valve
(Superseded to 795440)

Note: Included in Valve Gasket Set (Ref. No. 1095)

$13.99

$

In Stock, Qty 9

0

914

Briggs & Stratton 699481

Screw (Rocker Cover) (Bottom)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 3 left!

0

914A

Briggs & Stratton 692557

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

914B

Briggs & Stratton 697551

Screw
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

993

Briggs & Stratton 694088

Gasket-Head Plate, Cylinder

Note: Included in Valve Gasket Set (Ref. No. 1095)

$8.49

$

In Stock, Qty 16

0

993

Briggs & Stratton 694088

Gasket-Head Plate, Cylinder

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.49

$

In Stock, Qty 16

0

993

Briggs & Stratton 694088

Gasket-Head Plate, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 16

0

1022

Briggs & Stratton 691890

Gasket-Cover, Rocker

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 6

0

1022

Briggs & Stratton 691890

Gasket-Cover, Rocker

Note: Included in Engine Gasket Set (Ref. No. 358)

$7.99

$

In Stock, Qty 6

0

1022

Briggs & Stratton 691890

Gasket-Cover, Rocker

Note: Included in Valve Gasket Set (Ref. No. 1095)

$7.99

$

In Stock, Qty 6

0

1023

Briggs & Stratton 499924

Cover-Arm, Rocker
(Superseded to 595245)

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 790287

Rod-Push

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, only 2 left!

0

1029

Briggs & Stratton 691230

Arm-Rocker

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 691343

Guide-Rod, Push

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, only 2 left!

0
