62925 - Toro Lawn Vacuum (SN: 240000001 - 240999999) (2004) CARBURETOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 126302-0245-E1 Parts Diagram

Lawn Vacuum

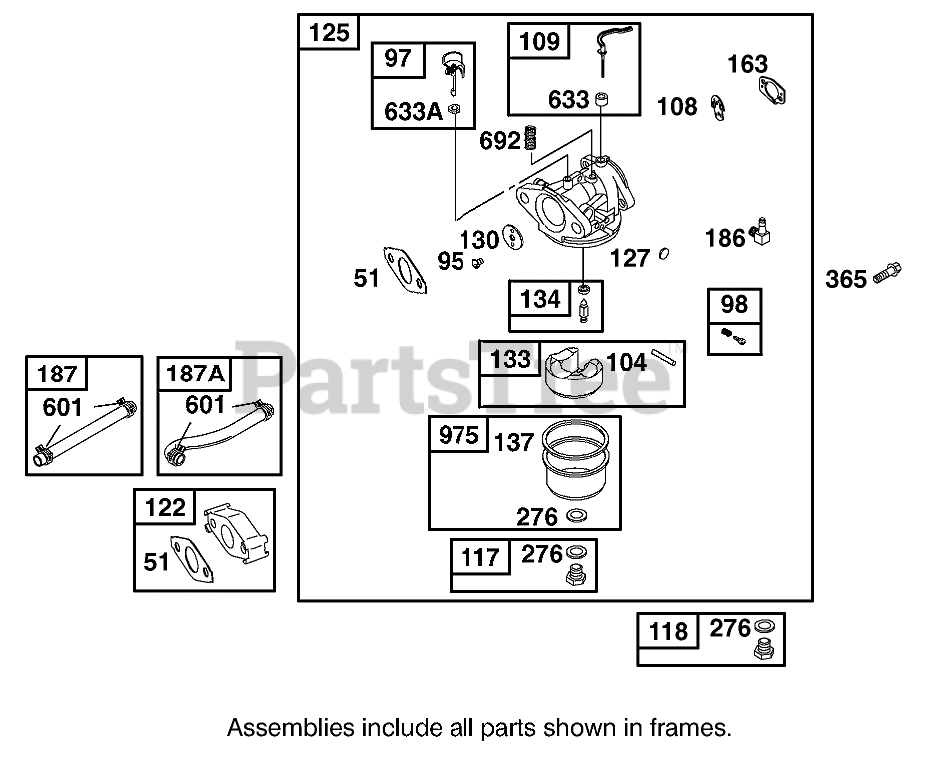

CARBURETOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 126302-0245-E1 Parts Diagram

  • Title

51

Briggs & Stratton 692555

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$3.99

$

In Stock, Qty 11

0

51

Briggs & Stratton 692555

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$3.99

$

In Stock, Qty 11

0

51

Briggs & Stratton 692555

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, Qty 11

0

51

Briggs & Stratton 692555

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$3.99

$

In Stock, Qty 11

0

51

Briggs & Stratton 692555

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 11

0

95

Briggs & Stratton 691636

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 690024

Shaft-Throttle

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 398185

Idle Speed Kit

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 10

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 692567

Valve-Choke

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 693628

Shaft-Choke

Note: Obtain parts from www.briggsandstratton.com

$28.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 697355

Jet-Main

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

118

Briggs & Stratton 494870

Jet-Main

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

122

Briggs & Stratton 693749

Spacer-Carburetor
(Superseded to 795643)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 10

0

122

Briggs & Stratton 693749

Spacer-Carburetor
(Superseded to 795643)

Note: Included in Engine Gasket Set-Ref. 358.

$13.99

$

In Stock, Qty 10

0

122

Briggs & Stratton 693749

Spacer-Carburetor
(Superseded to 795643)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$13.99

$

In Stock, Qty 10

0

125

Briggs & Stratton 697028

Carburetor
(Superseded to 592679)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

127

Briggs & Stratton 691739

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 691739

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.49

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 691181

Valve-Throttle

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977.

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 696979

Gasket-Cleaner, Air
(Superseded to 792870)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, only 4 left!

0

163

Briggs & Stratton 696979

Gasket-Cleaner, Air
(Superseded to 792870)

Note: Included in Carburetor Gasket Set-Ref. 977.

$6.49

$

In Stock, only 4 left!

0

163

Briggs & Stratton 696979

Gasket-Cleaner, Air
(Superseded to 792870)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.49

$

In Stock, only 4 left!

0

163

Briggs & Stratton 696979

Gasket-Cleaner, Air
(Superseded to 792870)

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, only 4 left!

0

186

Briggs & Stratton 692317

Connector-Hose

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 691050

Line-Fuel (Cut to Required Length)
(Superseded to 791766)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

187A

Toro 187A

Line?Fuel (Molded)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

276

Briggs & Stratton 271716

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 6

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.99

$

In Stock, Qty 6

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set-Ref. 977.

$6.99

$

In Stock, Qty 6

0

365

Toro 365

Screw (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$3.23

$

Usually ships in 3-6 days

0

601

Toro 601

Hose Clamp

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

633

Briggs & Stratton 693867

Seal-Shaft, Choke Throttle

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 693867

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 693867

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

In Stock, only 2 left!

0

633A

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

692

Toro 692

Detent Spring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
