62925 - Toro Lawn Vacuum (SN: 210000001 - 210999999) (2001) HANDLE AND BAG ASSEMBLY Parts Diagram

Lawn Vacuum

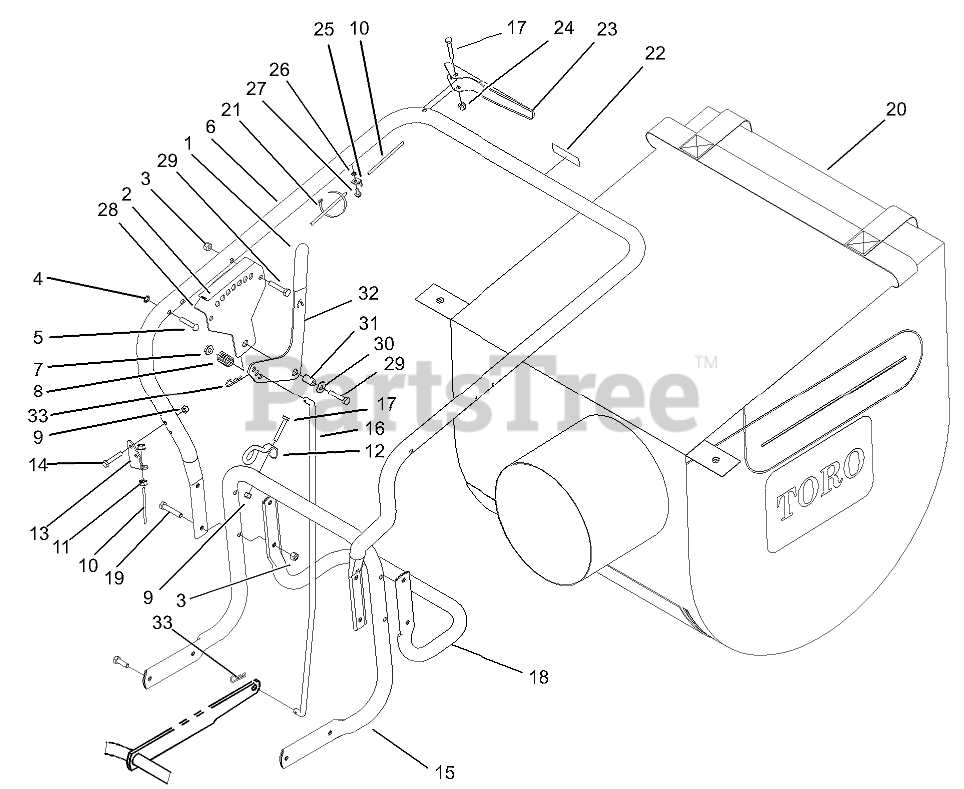

HANDLE AND BAG ASSEMBLY Parts Diagram

  • Title
1

Toro 3-7877

GRIP-HANDLE

$

$

Not available

2

Toro 93-4137

DECAL-ADJUSTMENT, HEIGHT

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 3290-418

NUT-PUSH IN

$3.49

$

In Stock, only 3 left!

0

5

Toro 3263-9

RIVET

$

$

Not available

6

Toro 23-3570

HANDLE-UPPER, VACUUM

$

$

Not available

7

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

8

Toro 20-6110

SPRING-COMPRESSION

$13.99

$

Usually ships in 3-6 days

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 105-1234

CABLE-TRACTION

$134.99

$

Usually ships in 3-6 days

0

11

Toro 32149-5

NUT-KEPS
(Superseded to 121-4698)

$1.99

$

Usually ships in 3-6 days

0

12

Toro 46-8082

GUIDE-ROPE

$

$

Not available

13

Toro 33-2830

MOUNT-BOWDEN, LOWER

$

$

Not available

14

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

15

Toro 105-1236

HANDLE-LOWER

$316.99

$

Usually ships in 3-6 days

0

16

Toro 105-1235

ROD-ADJUST, HEIGHT

$

$

Not available

17

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 66-1640-03

SUPPORT-BAG

$148.99

$

Usually ships in 3-6 days

0

19

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

20

Toro 105-1245

Bag-Vacuum

$244.99

$

In Stock, only 1 left!

0

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

22

Toro 93-4141

DECAL-CONTROL, TRACTION

$

$

Not available

23

Toro 93-8464

LEVER

$

$

Not available

24

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

25

Toro 20-8780

RETAINING-CLIP

$

$

Not available

26

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

27

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

28

Toro 20-5820-03

BRACKET-ADJUSTMENT

$

$

Not available

29

Toro 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

30

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 20-5650

SPACER

$

$

Not available

32

Toro 23-3410-03

HANDLE-ADJUST, HEIGHT

$

$

Not available

33

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0
