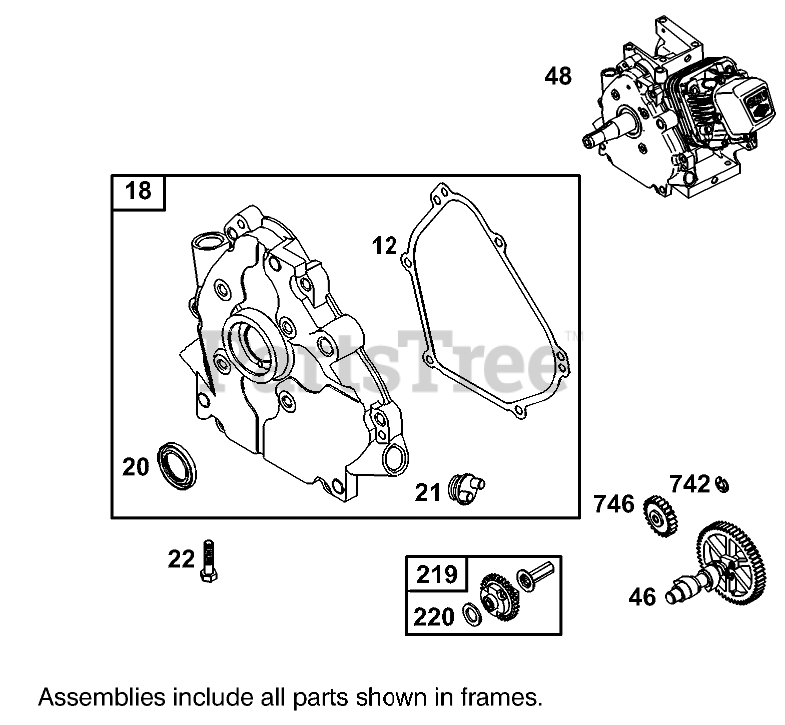

62925 - Toro Lawn Vacuum (SN: 210000001 - 210999999) (2001) CRANKCASE ASSEMBLY BRIGGS AND STRATTON MODEL 110402-0218-E1 Parts Diagram
Lawn Vacuum
CRANKCASE ASSEMBLY BRIGGS AND STRATTON MODEL 110402-0218-E1 Parts Diagram
Briggs & Stratton 692549
Crankcase Cover Gasket
(Superseded to 699485)
Note: Included in Engine Gasket Set-Ref. 358.
$8.99
$
In Stock, Qty 20+
$199.99
$
Usually ships in 2-12 days
$8.99
$
Usually ships in 2-12 days
$4.49
$
In Stock, Qty 20+
Briggs & Stratton 692551
Screw (Crankcase Cover/Sump)
$3.99
$
In Stock, only 2 left!
Briggs & Stratton 693404
Camshaft
$73.99
$
In Stock, Qty 5
48
Short Block(Not Available at thistime)
$
$
Not available
Briggs & Stratton 693578
Gear-Governor
$26.99
$
In Stock, only 2 left!
Briggs & Stratton 691724
Washer
$5.49
$
In Stock, only 2 left!
Briggs & Stratton 692564
Retainer-E Ring
$4.49
$
In Stock, only 2 left!
$17.99
$
Usually ships in 2-12 days
