62925 - Toro Lawn Vacuum (SN: 210000001 - 210999999) (2001) CARBURETOR ASSEMBLY BRIGGS AND STRATTON MODEL 110402-0218-E1 Parts Diagram

Lawn Vacuum

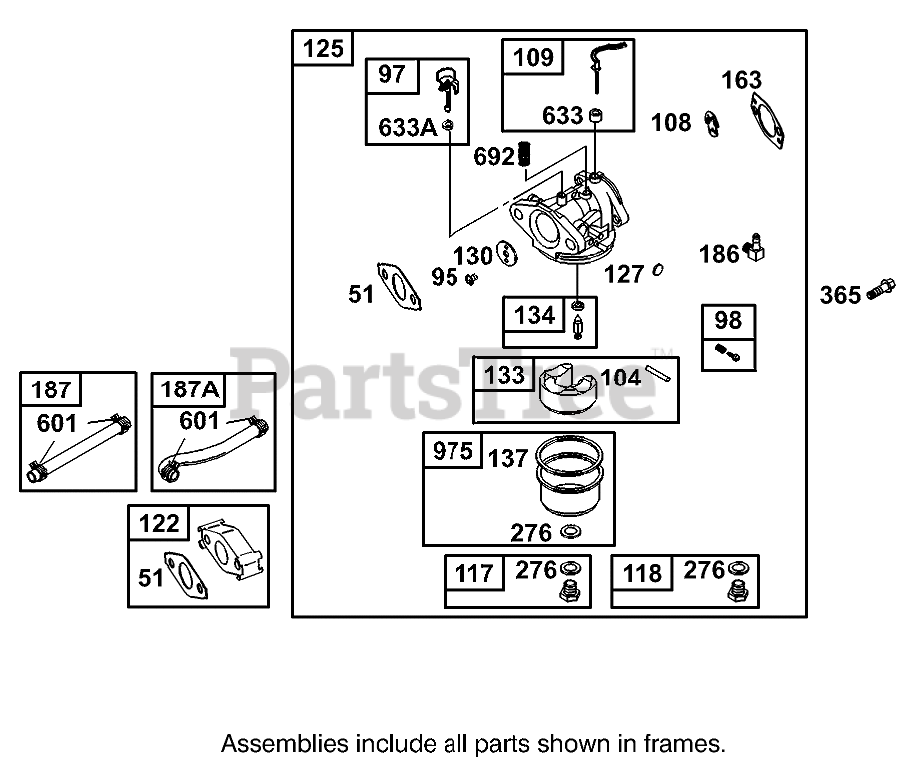

CARBURETOR ASSEMBLY BRIGGS AND STRATTON MODEL 110402-0218-E1 Parts Diagram

  • Title

51

Briggs & Stratton 692555

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, Qty 17

0

51

Briggs & Stratton 692555

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$3.99

$

In Stock, Qty 17

0

51

Briggs & Stratton 692555

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$3.99

$

In Stock, Qty 17

0

51

Briggs & Stratton 692555

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$3.99

$

In Stock, Qty 17

0

95

Briggs & Stratton 691636

Screw

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 690024

Shaft-Throttle

$27.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 398185

Idle Speed Kit

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 692567

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 693628

Shaft-Choke

$28.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 493763

Screw-Bowl Mtg.

$

$

Not available

118

Briggs & Stratton 493637

Main Jet(High Altitude)

$17.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 693749

Spacer-Carburetor
(Superseded to 795643)

Note: Included in Engine Gasket Set-Ref. 358.

$13.99

$

In Stock, Qty 10

0

122

Briggs & Stratton 693749

Spacer-Carburetor
(Superseded to 795643)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$13.99

$

In Stock, Qty 10

0

125

Briggs & Stratton 694112

Carburetor

$

$

Not available

127

Briggs & Stratton 691739

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.49

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 691181

Valve-Throttle

$7.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977.

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 693458

Air Cleaner Gasket

Note: Included in Carburetor Gasket Set-Ref. 977.

$5.99

$

In Stock, Qty 7

0

163

Briggs & Stratton 693458

Air Cleaner Gasket

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.99

$

In Stock, Qty 7

0

163

Briggs & Stratton 693458

Air Cleaner Gasket

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

In Stock, Qty 7

0

186

Briggs & Stratton 692317

Connector-Hose

$6.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 691050

Line-Fuel (Cut to Required Length)
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 692601

Line?Fuel
(Superseded to 791867)

$15.99

$

In Stock, only 1 left!

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.99

$

In Stock, Qty 8

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set-Ref. 977.

$6.99

$

In Stock, Qty 8

0

365

Briggs & Stratton 692568

Screw (Carburetor)

$3.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 95162

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 693867

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 693867

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, only 2 left!

0

633A

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

$5.49

$

In Stock, Qty 11

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available
