62924 - Toro Lawn Vacuum, 5hp (SN: 200000001 - 200999999) (2000) BLOWER ASSEMBLY Parts Diagram

Lawn Vacuum, 5hp

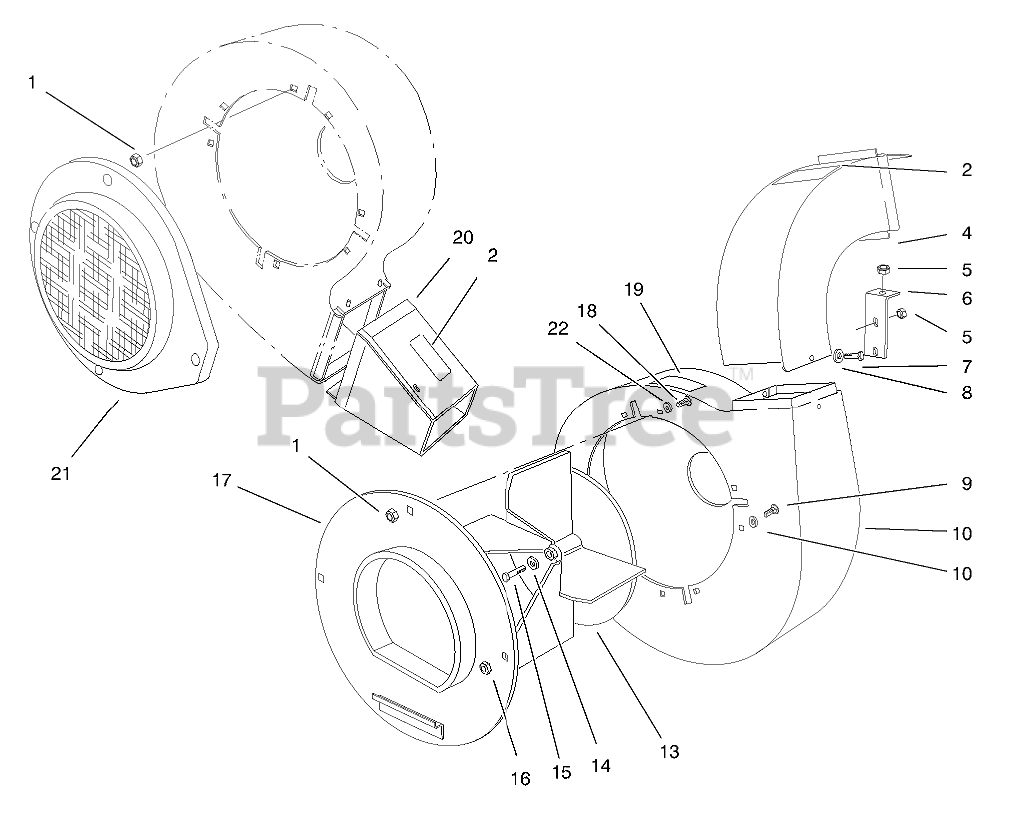

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 32128-26

NUT-FLANGE

$6.49

$

Usually ships in 3-6 days

0

2

Toro 93-4139

DECAL-CAUTION, BAG

$

$

Not available

4

Toro 20-6130

Chute-Vacuum
(Superseded to 20-6130-01)

$

$

Not available

5

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 11

0

6

Toro 39-4660

Bracket-Housing
(Superseded to 39-4660-03)

$

$

Not available

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 3290-436

WASHER-BELLEVILLE

$3.99

$

In Stock, only 1 left!

0

9

Toro 3230-19

SCREW-CARR

$6.49

$

In Stock, only 3 left!

0

10

Toro 20-5890

Blower Housing
(Superseded to 20-5890-01)

$1245.99

$

Usually ships in 3-6 days

0

13

Toro 93-3677

Fan Assembly
(Superseded to 93-3677-03)

$594.99

$

Usually ships in 3-6 days

0

14

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

15

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

16

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

17

Toro 20-5450

Blower Cover
(Superseded to 20-5450-01)

$

$

Not available

18

Toro 57-3220

BOLT-CARR

$

$

Not available

19

Toro 93-4138

Decal-Warning
(Superseded to 105-4062)

$

$

Not available

20

Toro 93-4124

Blower-Exhaust
(Superseded to 93-4124-01)

$

$

Not available

21

Toro 20-5780

INTAKE-BLOWER

$125.99

$

Usually ships in 3-6 days

0

22

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
