62924 - Toro Lawn Vacuum, 5hp (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 135202-0263-01 Parts Diagram

Lawn Vacuum, 5hp

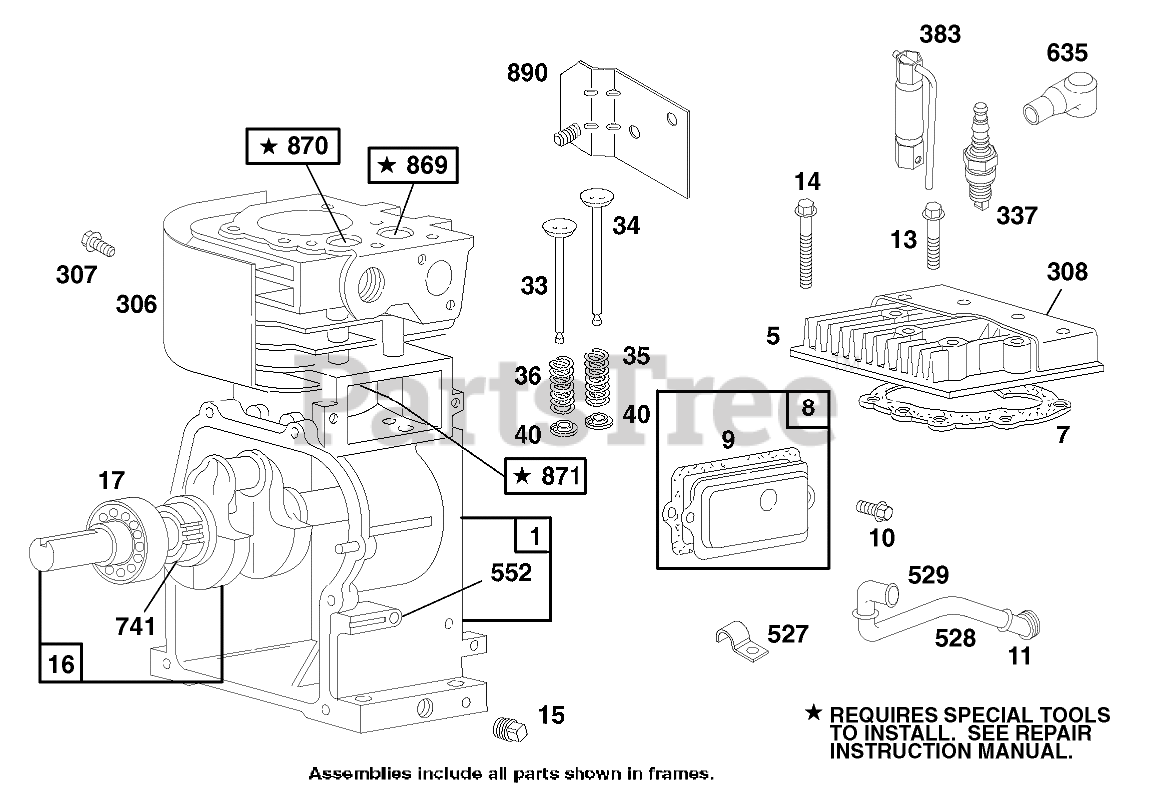

ENGINE BRIGGS & STRATTON MODEL 135202-0263-01 Parts Diagram

  • Title

K12

Briggs & Stratton 270080

Gasket (.015"Std.)
(Superseded to 692213)

$3.99

$

In Stock, only 4 left!

0

K3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

1

Briggs & Stratton 395990

Cylinder Assembly
(Superseded to 497144)

$537.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 214040

Head-Cylinder
(Superseded to 691716)

$

$

Not available

7

Briggs & Stratton 272157

Gasket-Head
(Superseded to 272157S)

Note: Included in Gasket Set-Part No. 495603.

$6.49

$

In Stock, Qty 7

0

8

Briggs & Stratton 495774

Breather Assy.
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket Breather
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 495603.

$3.99

$

In Stock, Qty 14

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 66578

Grommet
(Superseded to 692187)

$4.49

$

In Stock, Qty 20+

0

13

Briggs & Stratton 94221

Screw-Cylinder Head
(Superseded to 691640)

$3.49

$

In Stock, Qty 12

0

14

Briggs & Stratton 94679

Screw-Cylinder Head
(Superseded to 691659)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 94387

Plug-Pipe
(Superseded to 691686)

$5.49

$

In Stock, only 2 left!

0

16

Toro 495845

Crankshaft

$

$

Currently unavailable

17

Briggs & Stratton 494874

Bearing-Ball
(Superseded to 692007)

$32.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 211119

Valve Exhaust
(Superseded to 211119S)

$

$

Not available

34

Briggs & Stratton 261044

Valve-Intake
(Superseded to 261044S)

$

$

Not available

35

Briggs & Stratton 260552

Spring-Valve
(Superseded to 690520)

$5.49

$

In Stock, only 3 left!

0

36

Briggs & Stratton 26478

1531A GIL 3 1/2HP T
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

307

Briggs & Stratton 94680

Screw-Sem
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

306

Briggs & Stratton 221511

Shield-Cylinder
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

308

Briggs & Stratton 224738

Cover-Cylinder
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

308A

Briggs & Stratton 224740

Cover-Cylinder Head
(Superseded to 690473)

$11.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

356A

Briggs & Stratton 398808

Wire Stop

$11.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Plug, Spark
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

414A

Briggs & Stratton 221198

Washer
(Superseded to 691722)

$6.99

$

Usually ships in 2-12 days

0

414

Briggs & Stratton 220982

Washer
(Superseded to 691721)

$7.49

$

In Stock, only 1 left!

0

527

Briggs & Stratton 223786

Clamp-Tube
(Superseded to 691741)

$4.99

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 231550

Tube-Breather

$

$

Not available

529

Briggs & Stratton 67838

Grommet
(Superseded to 692189)

$4.49

$

In Stock, Qty 16

0

552

Briggs & Stratton 231079

Bushing-Governor
(Superseded to 690508)

$9.49

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 3 left!

0

635

Briggs & Stratton 66538

Boot-Plug, Spark
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

741

Briggs & Stratton 262992

Gear-Timing
(Superseded to 691847)

$29.99

$

In Stock, only 2 left!

0

869

Briggs & Stratton 211787

Seat-Int. Valve
(Superseded to 691705)

$9.99

$

In Stock, only 3 left!

0

870

Briggs & Stratton 211172

Seat-Ex. Valve
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 262001

Bushing-Guide

$13.99

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 496783

Bracket-Mounting
(Superseded to 692959)

$16.99

$

Usually ships in 2-12 days

0

995

Briggs & Stratton 223814

Bracket-Link
(Superseded to 690436)

$4.49

$

Usually ships in 2-12 days

0
