62924 - Toro Lawn Vacuum, 5hp (SN: 069000001 - 069999999) (1996) ENGINE BRIGGS & STRATTON MODEL 135202-0263-01 Parts Diagram

Lawn Vacuum, 5hp

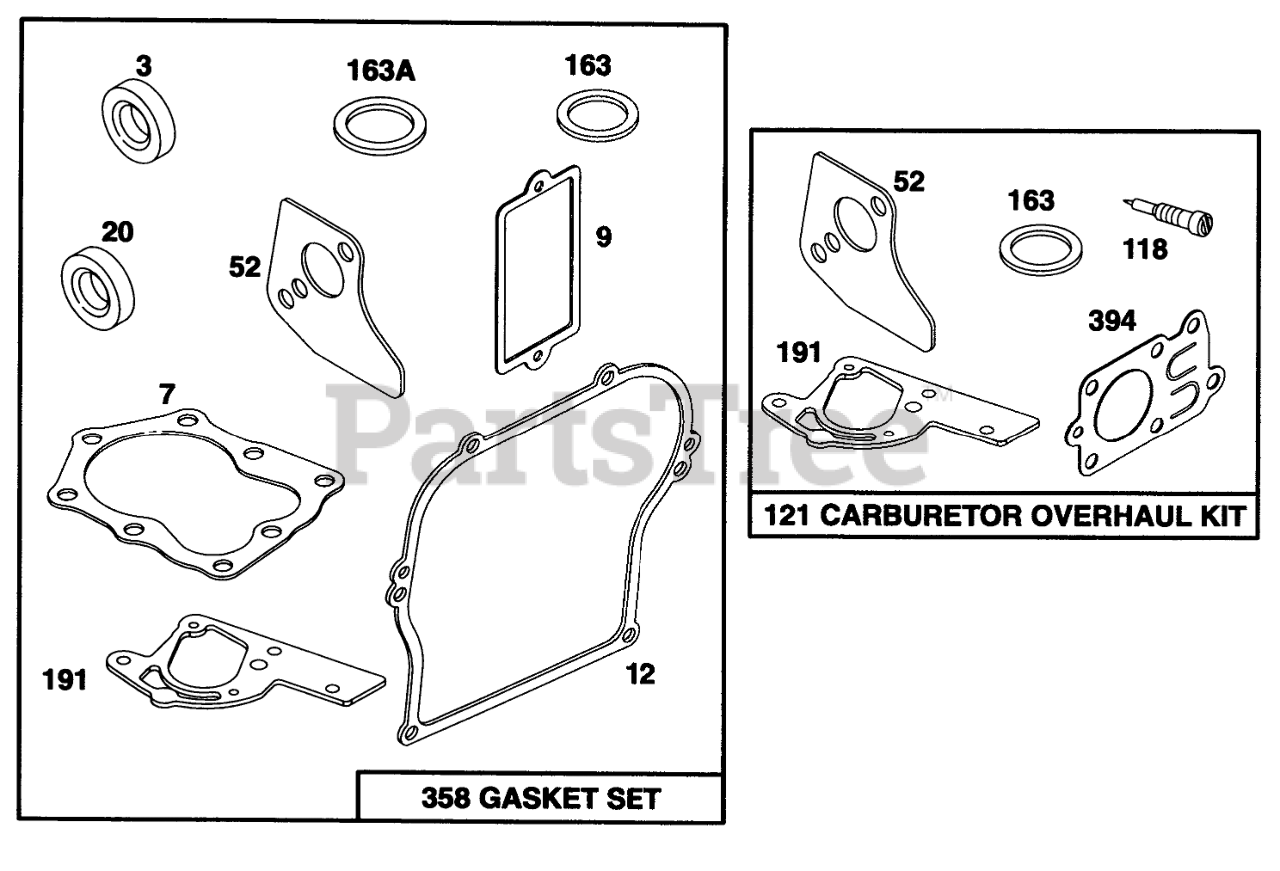

ENGINE BRIGGS & STRATTON MODEL 135202-0263-01 Parts Diagram

  • Title

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Gasket Set Part No. 495603.

$5.49

$

In Stock, Qty 17

0

7

Briggs & Stratton 272157

Gasket-Head
(Superseded to 272157S)

Note: Included in Gasket Set Part No. 495603.

$6.49

$

In Stock, Qty 7

0

9

Briggs & Stratton 27549

Gasket Breather
(Superseded to 27549S)

Note: Included in Gasket Set Part No. 495603.

$3.99

$

In Stock, Qty 14

0

12

Briggs & Stratton 270080

Gasket (.015"Std.)
(Superseded to 692213)

Note: Included in Gasket Set Part No. 495603.

$3.99

$

In Stock, only 4 left!

0

Briggs & Stratton 270125

Gasket (.015")

Note: Included in Gasket Set Part No. 495603.

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 270126

Gasket (.009")

Note: Included in Gasket Set Part No. 495603.

$8.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton 294606

Seal-Oil
(Superseded to 294606S)

Note: Included in Gasket Set Part No. 495603.

$9.49

$

In Stock, Qty 11

0

52

Briggs & Stratton 272585

Gasket-Carb. Mtg.
(Superseded to 273113S)

Note: Included in Gasket Set Part No. 495603.

$4.49

$

In Stock, Qty 19

0

52

Briggs & Stratton 272585

Gasket-Carb. Mtg.
(Superseded to 273113S)

Note: Included in Carburetor Overhaul Kit Part No. 495606.

$4.49

$

In Stock, Qty 19

0

118

Briggs & Stratton 231533

Valve-Needle
(Superseded to 691777)

Note: Included in Carburetor Overhaul Kit Part No. 495606.

$17.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 495606

Carburetor Kit

$26.99

$

In Stock, Qty 8

0

163

Briggs & Stratton 271139

Gasket-Air Cleaner
(Superseded to 271139S)

Note: Included in Gasket Set Part No. 495603.

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 271139

Gasket-Air Cleaner
(Superseded to 271139S)

Note: Included in Carburetor Overhaul Kit Part No. 495606.

$3.99

$

In Stock, Qty 20+

0

163A

Briggs & Stratton 272631

Gasket-Adapter
(Superseded to 690580)

Note: Included in Gasket Set Part No. 495603.

$12.99

$

In Stock, only 1 left!

0

191

Briggs & Stratton 272489

Gasket-Tank
(Superseded to 692241)

Note: Included in Carburetor Overhaul Kit Part No. 495606.

$4.49

$

In Stock, Qty 20+

0

191

Briggs & Stratton 272489

Gasket-Tank
(Superseded to 692241)

Note: Included in Gasket Set Part No. 495603.

$4.49

$

In Stock, Qty 20+

0

308A

Briggs & Stratton 224740

Cover-Cylinder Head
(Superseded to 690473)

$11.99

$

Usually ships in 2-12 days

0

356A

Briggs & Stratton 398808

Wire Stop

$11.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 495603

Gasket Set

$32.99

$

In Stock, Qty 20+

0

394

Briggs & Stratton 272538

Diaphragm
(Superseded to 272538S)

Note: Included in Carburetor Overhaul Kit Part No. 495606.

$3.99

$

In Stock, Qty 20+

0

414A

Briggs & Stratton 221198

Washer
(Superseded to 691722)

$6.99

$

Usually ships in 2-12 days

0

414

Briggs & Stratton 220982

Washer
(Superseded to 691721)

$7.49

$

In Stock, only 1 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 3 left!

0

995

Briggs & Stratton 223814

Bracket-Link
(Superseded to 690436)

$4.49

$

Usually ships in 2-12 days

0
