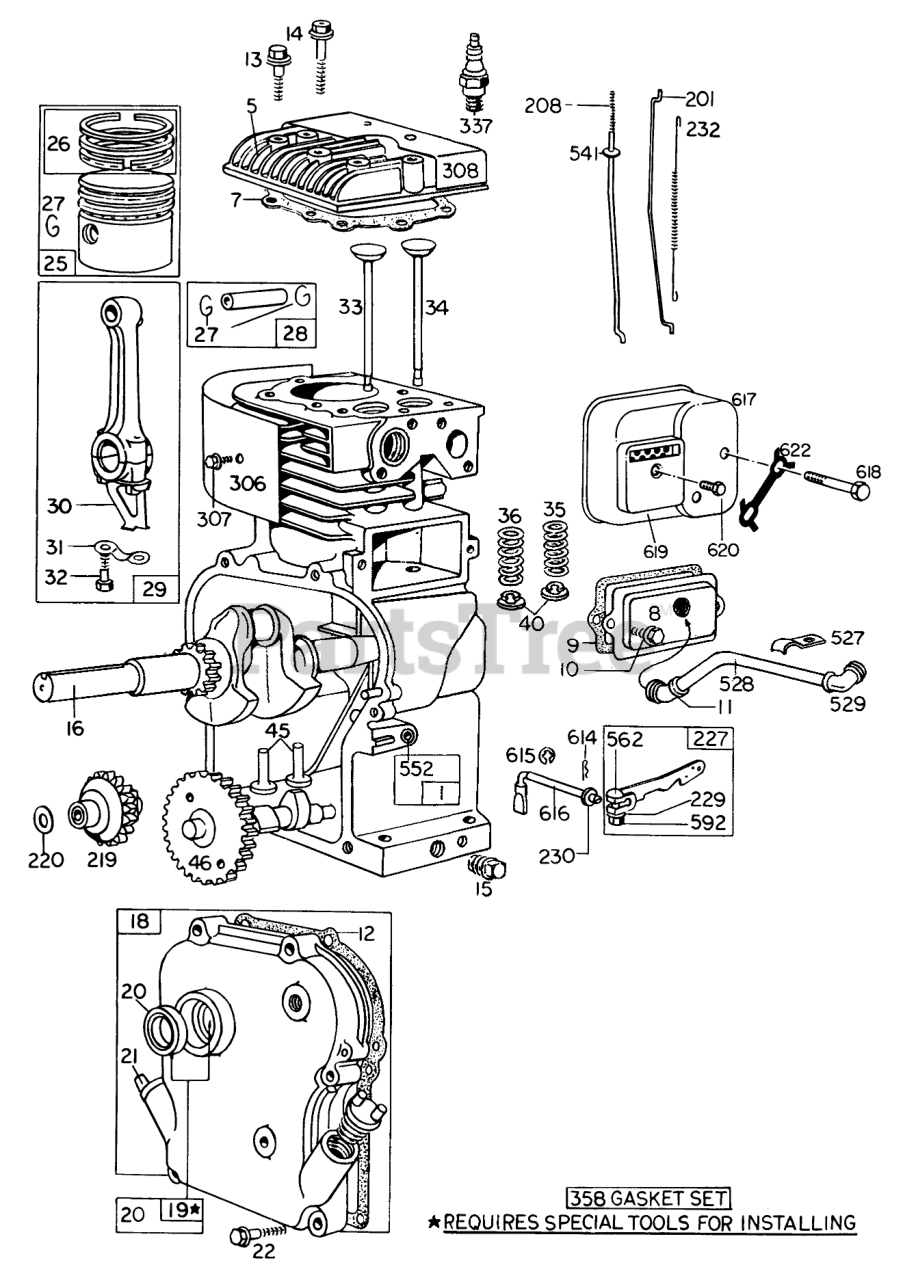

62923 - Toro Lawn Vacuum, 5hp (SN: 008000001 - 008999999) (1978) ENGINE MODEL NO. 130202 TYPE 0600-01 BRIGGS & STRATTON Parts Diagram

Lawn Vacuum, 5hp

ENGINE MODEL NO. 130202 TYPE 0600-01 BRIGGS & STRATTON Parts Diagram

  • Title

5

Briggs & Stratton 211542

Head-Cylinder
(Superseded to 691716)

$

$

Not available

7

Briggs & Stratton 270383

Gasket-Cylinder Head
(Superseded to 272157S)

Note: Included in Gasket Set, Part No. 297615

$6.49

$

In Stock, Qty 7

0

8

Briggs & Stratton 294178

Breather-Valve Chamber
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket Breather
(Superseded to 27549S)

Note: Included in Gasket Set, Part No. 297615

$3.99

$

In Stock, Qty 14

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 66578

Grommet
(Superseded to 692187)

$4.49

$

In Stock, Qty 20+

0

12

Toro 770080

Case Assembly(Incl Ref. #16, 17)

$

$

Currently unavailable

Briggs & Stratton 270125

Gasket (.015")

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 270126

Gasket (.009")

$8.49

$

In Stock, only 2 left!

0

13

Briggs & Stratton 93368

Screw-Cylinder Head
(Superseded to 691640)

$3.49

$

In Stock, Qty 12

0

14

Briggs & Stratton 93369

Screw-Cylinder Head
(Superseded to 691659)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 91249

Plug-Pipe
(Superseded to 691686)

$5.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 260938

Crankshaft
(Superseded to 492088)

$

$

Not available

18

Briggs & Stratton 297602

Cover Assy.-Crankcase
(Superseded to 694350)

$149.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 297603

Bushing-Crankcase Cover

Note: Requires special tools for installation.

$

$

Not available

20

Briggs & Stratton 294606

Seal-Oil
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

21

Briggs & Stratton 66768

Plug-Oil
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

Screw
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 298904

Piston Assy.-Std.
(Superseded to 793214)

$

$

Not available

Briggs & Stratton 298905

Piston Assy.-010"O.S.

$50.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298906

Piston Assy.-020"O.S.

$

$

Not available

Briggs & Stratton 298907

Piston Assy. .030" O.S.

$

$

Not available

26

Briggs & Stratton 298982

Ring Set (Std.)

$48.99

$

In Stock, Qty 8

0

Toro 211467

Ring, Piston, Comp., Top, Std.

$

$

Currently unavailable

Toro 211468

Ring, Piston, Comp., Center, Std.

$

$

Currently unavailable

Toro 211469

Ring, Piston, Oil, Std

$

$

Currently unavailable

Briggs & Stratton 298983

Ring Set (.010" O.S.)

$

$

Not available

Toro 211504

33857B VAR.W/211102

$3.23

$

Usually ships in 3-6 days

0

Toro 211503

Ring, Piston Comp., Center, .010" O.S.

$

$

Currently unavailable

Toro 211505

Ring, Piston, Oil, .010" O.S.

$

$

Currently unavailable

Briggs & Stratton 298984

Ring Set (.020" O.S.)

$35.99

$

Usually ships in 2-12 days

0

Toro 211507

Ring, Piston, Comp., Top, .020"0.S.

$

$

Currently unavailable

Toro 211506

Ring, Piston, Comp., Center .020" O.S.

$

$

Currently unavailable

Toro 211508

Ring, Piston, Oil, .020" O.S.

$

$

Currently unavailable

Briggs & Stratton 298985

Lock-Piston Pin

$23.99

$

Usually ships in 2-12 days

0

Toro 211511

Ring, Piston, Comp. Top, .030" O.S.

$

$

Currently unavailable

Toro 211510

Ring, Piston, Comp., Center.030" O.S.

$

$

Currently unavailable

Toro 211512

Ring, Piston, Oil, .030" O.S.

$

$

Currently unavailable

27

Briggs & Stratton 26026

Iock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 3 left!

0

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 299430

Rod Assy.-Connecting

$40.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 221890

Dipper-Conn. Rod
(Superseded to 691759)

$8.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 221876

Lock

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

Screw, Conn.Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 211119

Valve Exhaust
(Superseded to 211119S)

$

$

Not available

34

Briggs & Stratton 261044

Valve-Intake
(Superseded to 261044S)

$

$

Not available

35

Briggs & Stratton 260552

Spring-Valve
(Superseded to 690520)

$5.49

$

In Stock, only 3 left!

0

36

Briggs & Stratton 26478

1531A GIL 3 1/2HP T
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 260642

Tappet-Valve
(Superseded to 690509)

$

$

Not available

46

Briggs & Stratton 211117

Gear Cam
(Superseded to 691164)

$59.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260661

Link-Governor

$24.99

$

Usually ships in 2-12 days

0

208

Briggs & Stratton 230737

55335 GIL 11HP SNWT

$

$

Not available

219

Briggs & Stratton 297656

Gear-Governor

$

$

Not available

220

Briggs & Stratton 221551

Washer-Thrust
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

227

Briggs & Stratton 297601

Lever Assy.-Governor

$

$

Not available

229

Briggs & Stratton 220680

Washer
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 221559

Clamp-Casing

$3.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 260478

Spring-Governor Link
(Superseded to 690545)

$

$

Not available

306

Briggs & Stratton 221511

Shield-Cylinder
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

307

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 221512

Cover Cylinder Head
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 293918

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 297615

Gasket Set
(Superseded to 495603)

$32.99

$

In Stock, Qty 20+

0

527

Briggs & Stratton 221514

Clamp, BreatherTube

$1.49

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 230722

Condenser

$

$

Not available

529

Briggs & Stratton 67838

Grommet
(Superseded to 692189)

$4.49

$

In Stock, Qty 16

0

541

Briggs & Stratton 22398

Washer
(Superseded to 5022398)

$3.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 230732

Bushing-Governor

$6.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt

$

$

Not available

592

Briggs & Stratton 90356

Nut
(Superseded to 690276)

$3.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 230723

Crank-Governor

$

$

Not available

617

Toro 297430

Muffler

$

$

Currently unavailable

618

Briggs & Stratton 92636

Capscrew

$7.49

$

Usually ships in 2-12 days

0

619

Toro 21527

Deflector

$

$

Currently unavailable

620

Toro 930414

Deflector Screw

$

$

Currently unavailable

622

Toro 22596

Locking Plate

$

$

Currently unavailable
