62923 - Toro Lawn Vacuum, 5hp (SN: 005000001 - 005999999) (1985) ENGINE AND BASE ASSEMBLY (MODEL 62912) Parts Diagram

Lawn Vacuum, 5hp

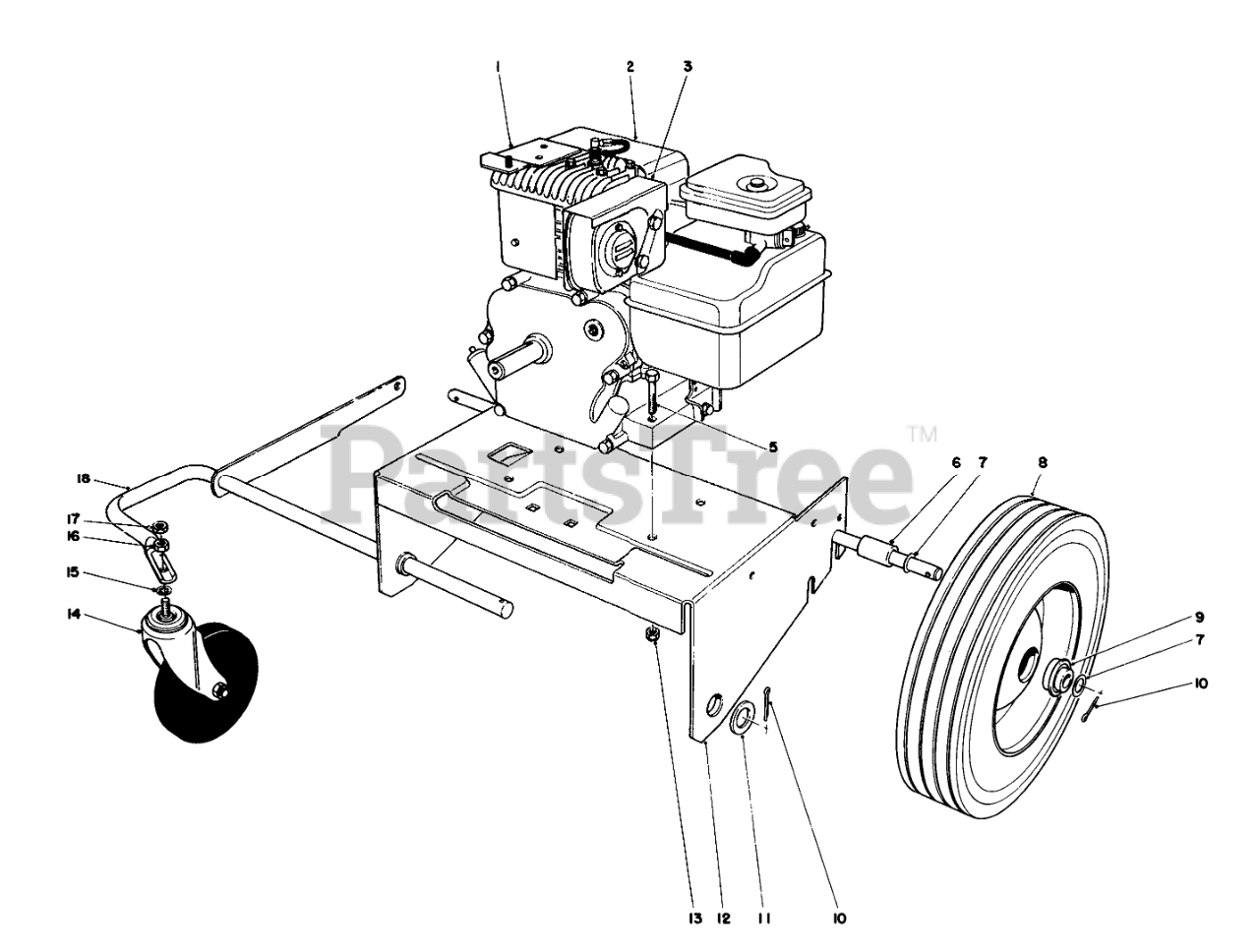

ENGINE AND BASE ASSEMBLY (MODEL 62912) Parts Diagram

  • Title

1

Toro 394680

Mounting Bracket

$

$

Currently unavailable

2

Toro 221-643

Engine

$

$

Not available

3

Toro 39-4690

HEAT SHIELD

$

$

Not available

5

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 20-5410

SPACER-AXLE

$

$

Not available

7

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

8

Toro 20-6100

Wheel (Incl. Ref. #9)

$184.99

$

Usually ships in 3-6 days

0

9

Toro 251-258

BEARING

$

$

Not available

10

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

11

Toro 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

12

Toro 20-5560

Engine Plate
(Superseded to 20-5560-03)

$

$

Not available

13

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

14

Toro 23-3320

CASTER

$243.99

$

Usually ships in 3-6 days

0

15

Toro 32544

Lockwasher

$

$

Currently unavailable

16

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

17

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

18

Toro 23-3280

Front Wheel Support
(Superseded to 23-3280-03)

$311.99

$

Usually ships in 3-6 days

0
