62923 - Toro Lawn Vacuum, 5hp (SN: 005000001 - 005999999) (1975) ENGINE AND BASE ASSEMBLY (MODEL 62923) Parts Diagram

Lawn Vacuum, 5hp

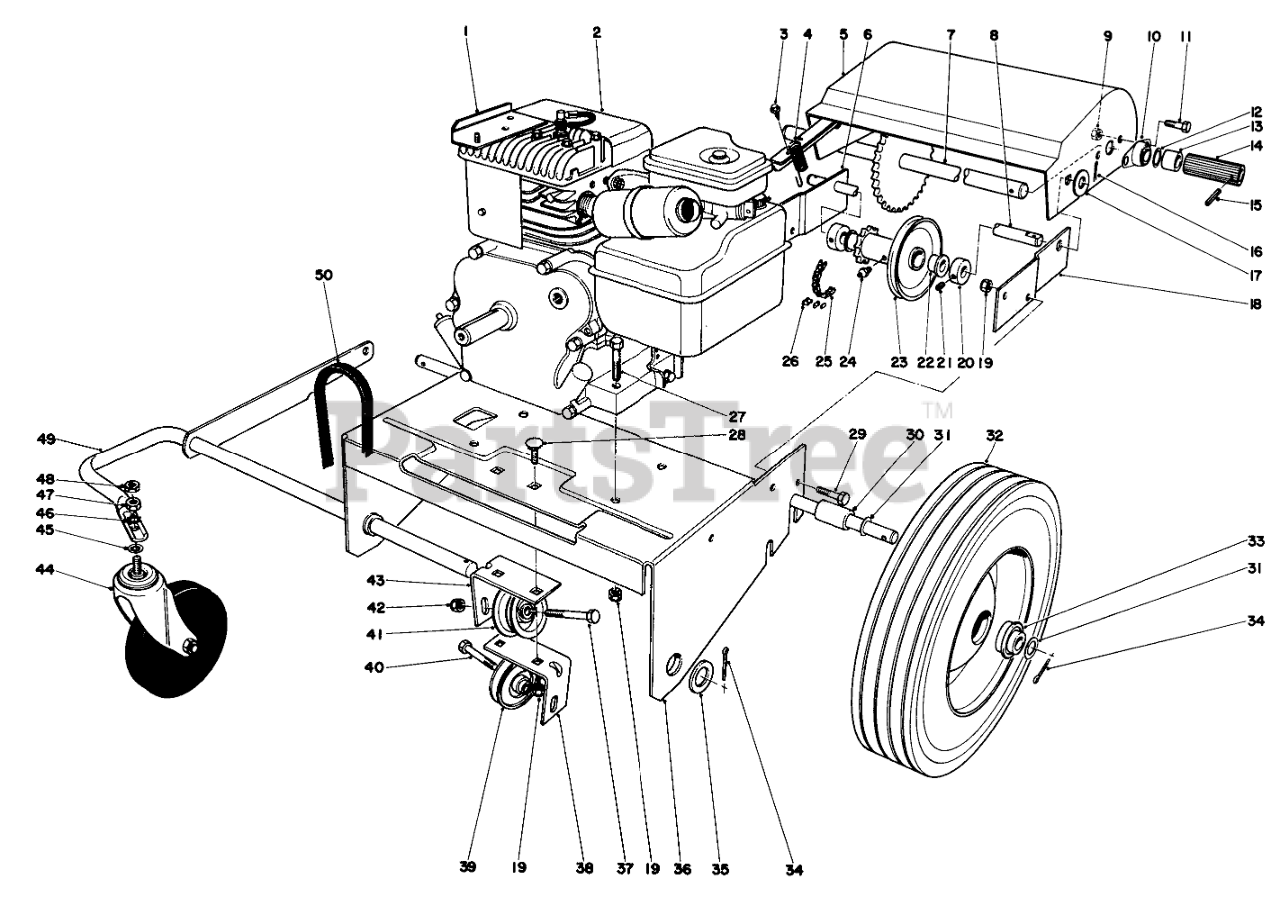

ENGINE AND BASE ASSEMBLY (MODEL 62923) Parts Diagram

  • Title

1

Toro 20-5540

MOUNTING BRKT WA

$

$

Not available

2

Toro 221-461

Engine

$

$

Currently unavailable

3

Toro 32140-32

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

4

Toro 23-3520

SPRING-TRACTION

$24.99

$

Usually ships in 3-6 days

0

5

Toro 20-6040

GUARD WA
(Superseded to 93-8461-03)

$

$

Not available

6

Toro 20-6580

Mounting Bracket
(Superseded to 43-6830-03)

$36.99

$

Usually ships in 3-6 days

0

7

Toro 20-7270

SHAFT-WHEEL, FRICTION

$338.99

$

Usually ships in 3-6 days

0

8

Toro 20-5870

SHAFT-IDLER

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 256-236

BEARING-MOUNT, FLANGE

$29.99

$

Usually ships in 3-6 days

0

11

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 7-3590

WASHER

$2.99

$

Usually ships in 3-6 days

0

13

Toro 20-5460

SPACER

$29.99

$

Usually ships in 3-6 days

0

14

Toro 20-5960

WHEEL-FRICTION

$63.99

$

Usually ships in 3-6 days

0

15

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

16

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 12

0

17

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 20-5970

Mounting Bracket
(Superseded to 43-6830-03)

$36.99

$

Usually ships in 3-6 days

0

19

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

20

Toro 20-5950

COLLAR

$

$

Not available

21

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 3 left!

0

22

Toro 256-105

BUSHING-FLANGE

$

$

Not available

23

Toro 20-6000

Idler (Incl. Ref. #22 & 24)

$

$

Not available

24

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

25

Toro 20-6530

Chain Traction
(Superseded to 3-3434)

$64.99

$

Usually ships in 3-6 days

0

26

Toro 2710-31

LINK-CONNECTING, NO. 35

$2.49

$

In Stock, only 1 left!

0

27

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

29

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 20-5410

SPACER-AXLE

$

$

Not available

31

Toro 7-3590

WASHER

$2.99

$

Usually ships in 3-6 days

0

32

Toro 20-6100

Wheel (Incl. Ref. #33)

$194.99

$

Usually ships in 3-6 days

0

33

Toro 251-258

BEARING

$

$

Not available

34

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

35

Toro 3256-29

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

36

Toro 20-5560

Engine Plate
(Superseded to 20-5560-03)

$

$

Not available

37

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 20-8690

Bracket-Idler Mount L.H.
(Superseded to 20-8690-03)

$

$

Not available

39

Toro 12-5820

PULLEY-IDLER

$31.99

$

In Stock, Qty 6

0

40

Toro 323-19

SCREW-HH

$1.99

$

In Stock, Qty 11

0

41

Toro 12-6700

PULLEY-IDLER

$31.99

$

In Stock, only 1 left!

0

42

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 12

0

43

Toro 20-8680

Bracket-Idler Mount R.H.
(Superseded to 20-8680-03)

$

$

Not available

44

Toro 23-3320

CASTER

$255.99

$

Usually ships in 3-6 days

0

45

Toro 3254-4

WASHER-LOCK/INT

$0.99

$

In Stock, only 1 left!

0

46

Toro 3255-2

WASHER-LOCK, EXT

$1.49

$

Usually ships in 3-6 days

0

47

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

48

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

49

Toro 23-3280

Front Wheel Support
(Superseded to 23-3280-03)

$327.99

$

Usually ships in 3-6 days

0

50

Toro 20-5990

BELT-V

$32.99

$

Usually ships in 3-6 days

0

Toro 20-7890

Trailer Hitch

Note: Optional equipment

$

$

Currently unavailable

Toro 23-4580

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
