62923 - Toro Lawn Vacuum, 5hp (SN: 005000001 - 005999999) (1975) BLOWER ASSEMBLY (MODELS 62912 & 62923) Parts Diagram

Lawn Vacuum, 5hp

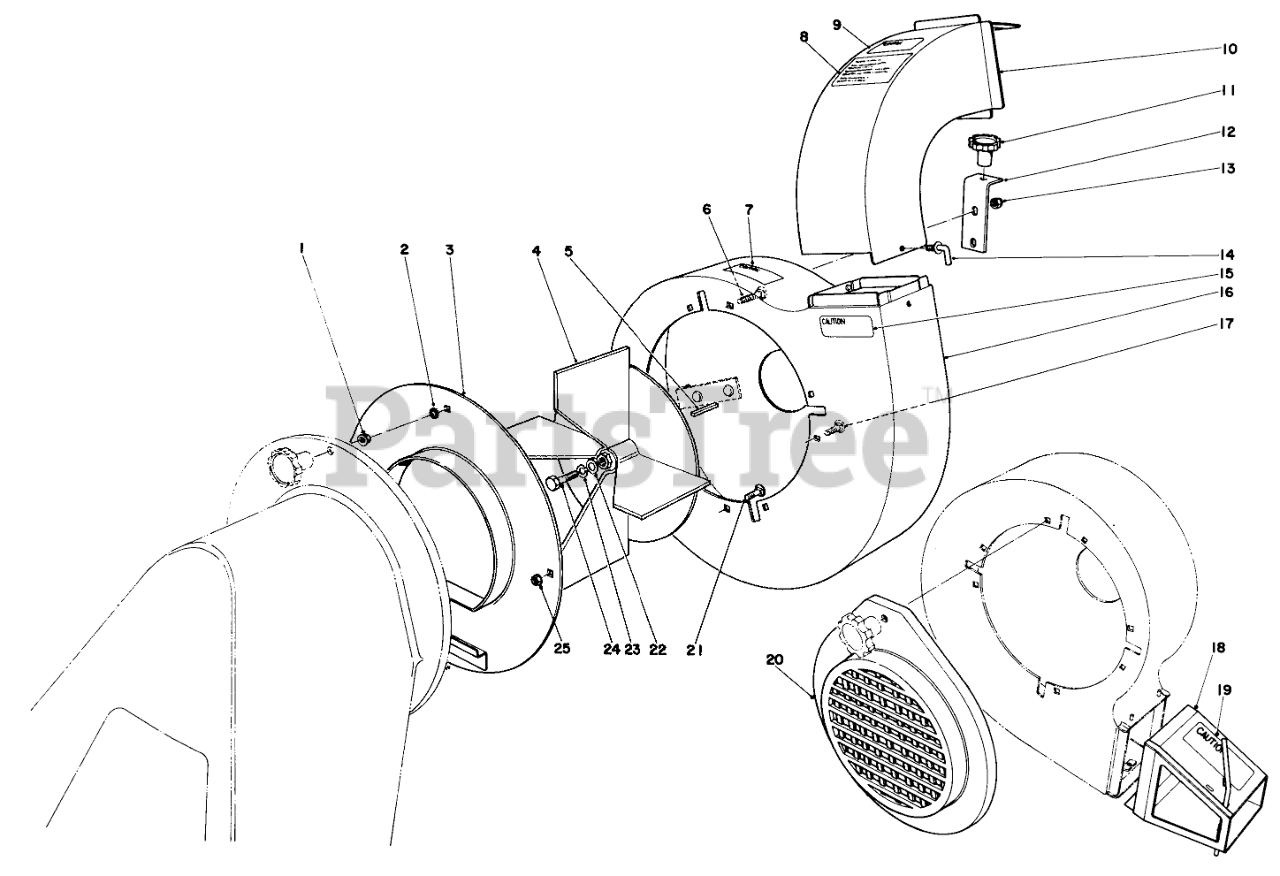

BLOWER ASSEMBLY (MODELS 62912 & 62923) Parts Diagram

  • Title

1

Toro 32128-26

NUT-FLANGE

$6.49

$

Usually ships in 3-6 days

0

2

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

3

Toro 20-5450

Blower Cover
(Superseded to 20-5450-01)

$

$

Not available

4

Toro 20-5470

Fan
(Superseded to 37-9230-03)

$

$

Not available

5

Toro 7-0036

KEY-SQUARE

$

$

Not available

6

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

7

Toro 20-8720

Decal-Caution
(Superseded to 37-9250)

$

$

Not available

8

Toro 20-7000

TORO ADVER DECAL

$

$

Not available

9

Toro 20-8710

DECAL CAUTION BAG

$

$

Not available

10

Toro 20-6130

Chute-Vacuum
(Superseded to 20-6130-01)

$

$

Not available

11

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

12

Toro 20-5830

Mounting Bracket
(Superseded to 39-4660-03)

$

$

Not available

13

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

14

Toro 3290-361

ADJ SCREW 1/4-20X 3/4

$

$

Not available

15

Toro 20-7010

WARNING DECAL

$

$

Not available

16

Toro 20-5890

Blower Housing
(Superseded to 20-5890-01)

$1245.99

$

Usually ships in 3-6 days

0

17

Toro 3230-19

SCREW-CARR

$6.49

$

In Stock, only 3 left!

0

18

Toro 20-6570

EXHAUST BLOWR WA/DECAL

$

$

Not available

19

Toro 20-7900

EXHAUST DECAL

$

$

Not available

20

Toro 20-5780

INTAKE-BLOWER

$125.99

$

Usually ships in 3-6 days

0

21

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

22

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 3235-17

Capscrew
(Superseded to 40-6990)

$

$

Not available

25

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

Toro 20-6660

Hose Attachment Kit

Note: Optional equipment

$

$

Currently unavailable

Toro 20-6610

Flap Kit

Note: Optional equipment

$

$

Currently unavailable
