62923 - Toro Lawn Vacuum, 5hp (SN: 003000001 - 003999999) (1983) BLOWER ASSEMBLY (MODEL 62912 & 62923) Parts Diagram

Lawn Vacuum, 5hp

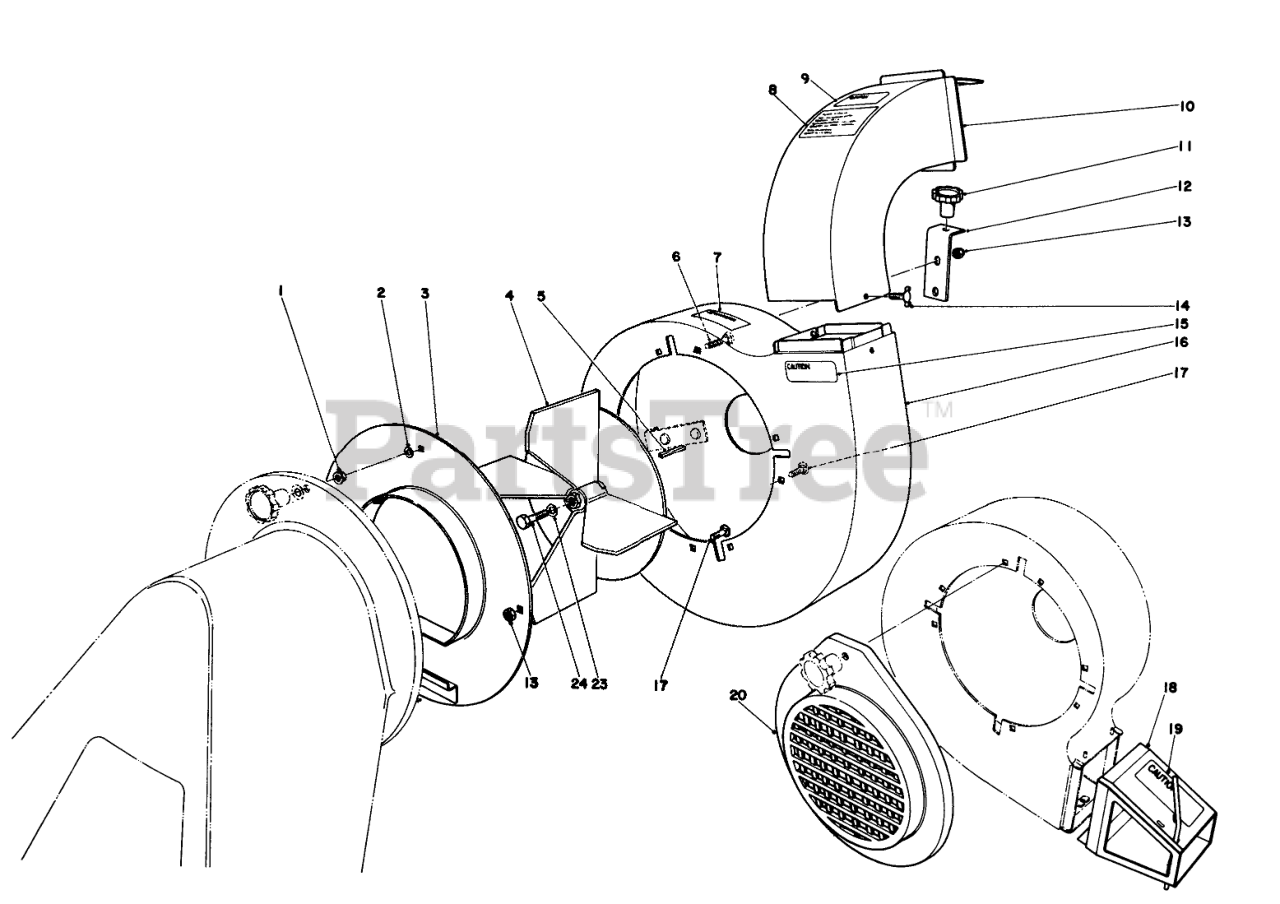

BLOWER ASSEMBLY (MODEL 62912 & 62923) Parts Diagram

  • Title

1

Toro 32128-26

NUT-FLANGE

$6.49

$

Usually ships in 3-6 days

0

2

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 20-5450

Blower Cover
(Superseded to 20-5450-01)

$

$

Not available

4

Toro 37-9230

Fan
(Superseded to 37-9230-03)

$

$

Not available

5

Toro 7-0036

KEY-SQUARE

$

$

Not available

6

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

7

Toro 37-9250

ROTATE WARNING DECAL

$

$

Not available

8

Toro 20-7000

TORO ADVER DECAL

$

$

Not available

9

Toro 20-8710

DECAL CAUTION BAG

$

$

Not available

10

Toro 20-6130

Chute-Vacuum
(Superseded to 20-6130-01)

$

$

Not available

11

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

12

Toro 39-4660

Bracket-Housing
(Superseded to 39-4660-03)

$

$

Not available

13

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

14

Toro 3288-6

1/4 - 20 3/4 WING SCR

$

$

Not available

15

Toro 20-7010

WARNING DECAL

$

$

Not available

16

Toro 20-5890

Blower Housing
(Superseded to 20-5890-01)

$1245.99

$

Usually ships in 3-6 days

0

17

Toro 3230-19

SCREW-CARR

$6.49

$

In Stock, only 2 left!

0

18

Toro 20-6570

Blower Exhaust (Incl. Ref. #19)

$

$

Not available

19

Toro 20-7900

EXHAUST DECAL

$

$

Not available

20

Toro 20-5780

INTAKE-BLOWER

$125.99

$

Usually ships in 3-6 days

0

23

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Toro 40-6990

SPEC SCREW

$

$

Not available
