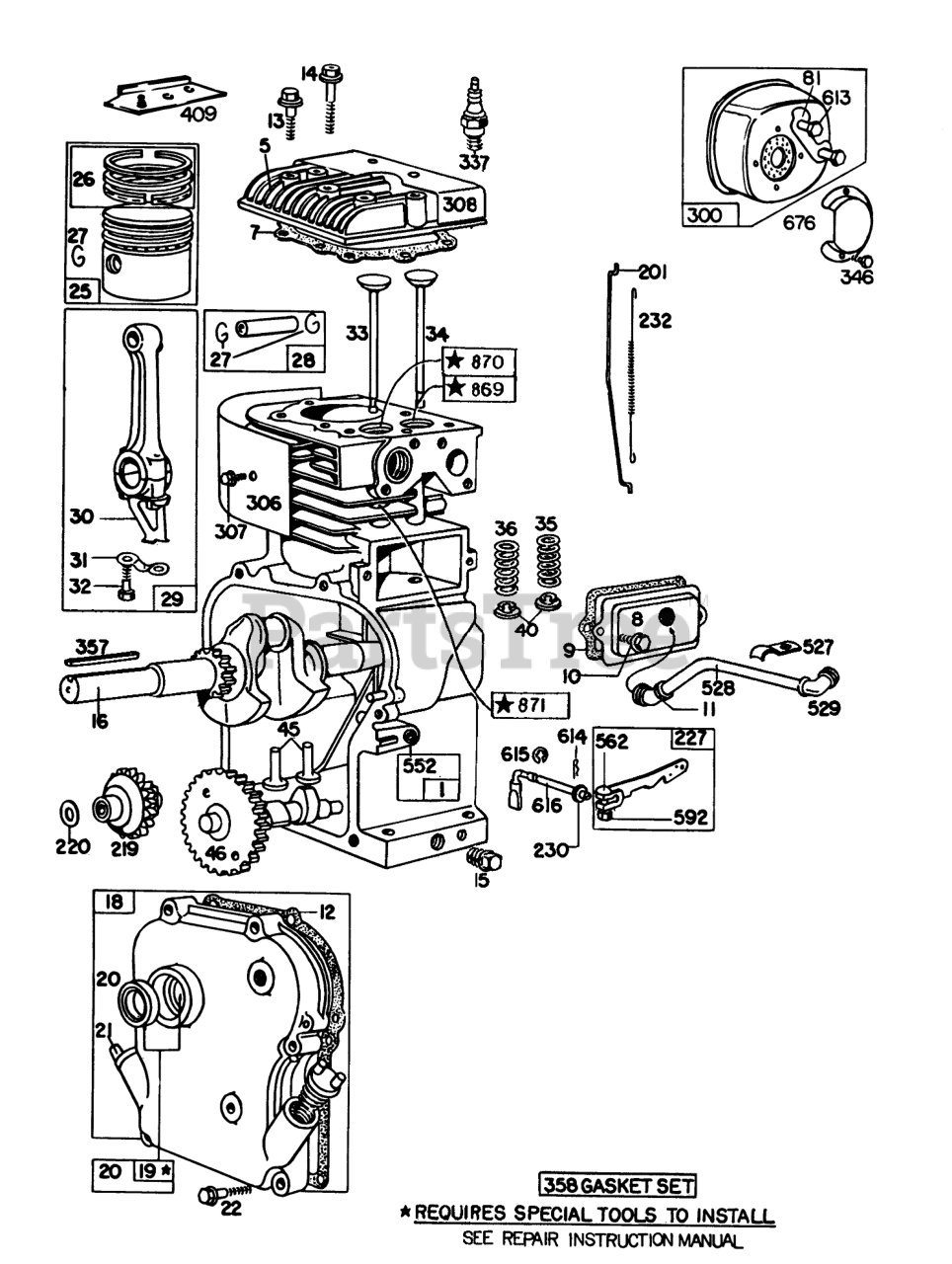

62923 - Toro Lawn Vacuum, 5hp (SN: 001000001 - 001999999) (1981) ENGINE Parts Diagram

Lawn Vacuum, 5hp

ENGINE Parts Diagram

  • Title

1

Briggs & Stratton 391977

Cylinder Assembly

$

$

Not available

5

Briggs & Stratton 211542

Head-Cylinder
(Superseded to 691716)

$

$

Not available

7

Briggs & Stratton 270383

Gasket-Cylinder Head
(Superseded to 272157S)

Note: Included in Gasket Set-Part No. 297615.

$6.49

$

In Stock, Qty 5

0

8

Briggs & Stratton 294178

Breather-Valve Chamber
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket Breather
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 297615.

$3.99

$

In Stock, Qty 11

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 66578

Grommet
(Superseded to 692187)

$4.49

$

In Stock, Qty 16

0

12

Briggs & Stratton 270080

Gasket (.015"Std.)
(Superseded to 692213)

Note: Included in Gasket Set-Part No. 297615.

$3.99

$

In Stock, only 4 left!

0

Briggs & Stratton 270125

Gasket (.015")

Note: Included in Gasket Set-Part No. 297615.

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 270126

Gasket (.009")

Note: Included in Gasket Set-Part No. 297615.

$8.49

$

In Stock, only 2 left!

0

13

Briggs & Stratton 93368

Screw-Cylinder Head
(Superseded to 691640)

$3.49

$

In Stock, Qty 11

0

14

Briggs & Stratton 93369

Screw-Cylinder Head
(Superseded to 691659)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 91249

Plug-Pipe
(Superseded to 691686)

$5.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 260938

Crankshaft
(Superseded to 492088)

$

$

Not available

18

Briggs & Stratton 297602

Cover Assy.-Crankcase
(Superseded to 694350)

$149.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 297603

Bushing-Crankcase Cover

$

$

Not available

20

Briggs & Stratton 294606

Seal-Oil
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

21

Briggs & Stratton 66768

Plug-Oil
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

Screw
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 298904

Piston Assy.-Std.
(Superseded to 793214)

$

$

Not available

Briggs & Stratton 298905

Piston Assy.-010"O.S.

$50.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298906

Piston Assy.-020"O.S.

$

$

Not available

Briggs & Stratton 298907

Piston Assy. .030" O.S.

$

$

Not available

26

Briggs & Stratton 298982

Ring Set (Std.)

$48.99

$

In Stock, Qty 8

0

Briggs & Stratton 298983

Ring Set (.010" O.S.)

$

$

Not available

Briggs & Stratton 298984

Ring Set (.020" O.S.)

$35.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298985

Lock-Piston Pin

$23.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Iock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 2 left!

0

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 299430

Rod Assy.-Connecting

$40.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 221890

Dipper-Conn. Rod
(Superseded to 691759)

$8.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 221876

Lock

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

Screw, Conn.Rod
(Superseded to 691664)

$4.49

$

In Stock, only 1 left!

0

33

Briggs & Stratton 211119

Valve Exhaust
(Superseded to 211119S)

$

$

Not available

34

Briggs & Stratton 261044

Valve-Intake
(Superseded to 261044S)

$

$

Not available

35

Briggs & Stratton 260552

Spring-Valve
(Superseded to 690520)

$5.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26478

1531A GIL 3 1/2HP T
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 260642

Tappet-Valve
(Superseded to 690509)

$

$

Not available

46

Briggs & Stratton 211117

Gear Cam
(Superseded to 691164)

$59.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 222929

Lock-Screw

$5.49

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260661

Link-Governor

$24.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 391737

Gear Governor

$38.99

$

In Stock, only 2 left!

0

220

Briggs & Stratton 221551

Washer-Thrust
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

227

Briggs & Stratton 391966

Lever Assy.-Governor
(Superseded to 692357)

$14.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

232

Briggs & Stratton 260478

Spring-Governor Link
(Superseded to 690545)

$

$

Not available

300

Briggs & Stratton 393593

Muffler-Exhaust (Includes Gasket) Uses: 270918 Gasket-Muffler
(Superseded to 494585)

$23.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 221511

Shield-Cylinder
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

307

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

308

Briggs & Stratton 221512

Cover Cylinder Head
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 293918

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

357

Briggs & Stratton 91539

Key
(Superseded to 692191)

$

$

Not available

358

Briggs & Stratton 297615

Gasket Set
(Superseded to 495603)

$32.99

$

In Stock, Qty 20+

0

409

Briggs & Stratton 391608

Bracket Assy., Mtg. (Furnished by Toro)

$

$

Not available

527

Briggs & Stratton 221514

Clamp, BreatherTube

$1.49

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 230722

Condenser

$

$

Not available

529

Briggs & Stratton 67838

Grommet
(Superseded to 692189)

$4.49

$

In Stock, Qty 10

0

552

Briggs & Stratton 231079

Bushing-Governor
(Superseded to 690508)

$9.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt

$

$

Not available

592

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

613

Briggs & Stratton 93935

Screw
(Superseded to 691413)

$5.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 93549

Screw-Muffler Mtg.

$6.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 231077

Crank-Govemor
(Superseded to 692016)

$

$

Not available

676

Briggs & Stratton 222327

Deflector-Exhaust
(Superseded to 395700)

$15.99

$

In Stock, only 1 left!

0

869

Briggs & Stratton 211158

Seat-Intake Valve (Std.)
(Superseded to 691705)

$9.99

$

In Stock, only 3 left!

0

870

Briggs & Stratton 211172

Seat-Ex. Valve
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide

$14.99

$

Usually ships in 2-12 days

0
