62922 - Toro Lawn Vacuum, 5hp (SN: 004000001 - 004999999) (1974) ENGINE AND BASE ASSEMBLY (MODEL 62911) Parts Diagram

Lawn Vacuum, 5hp

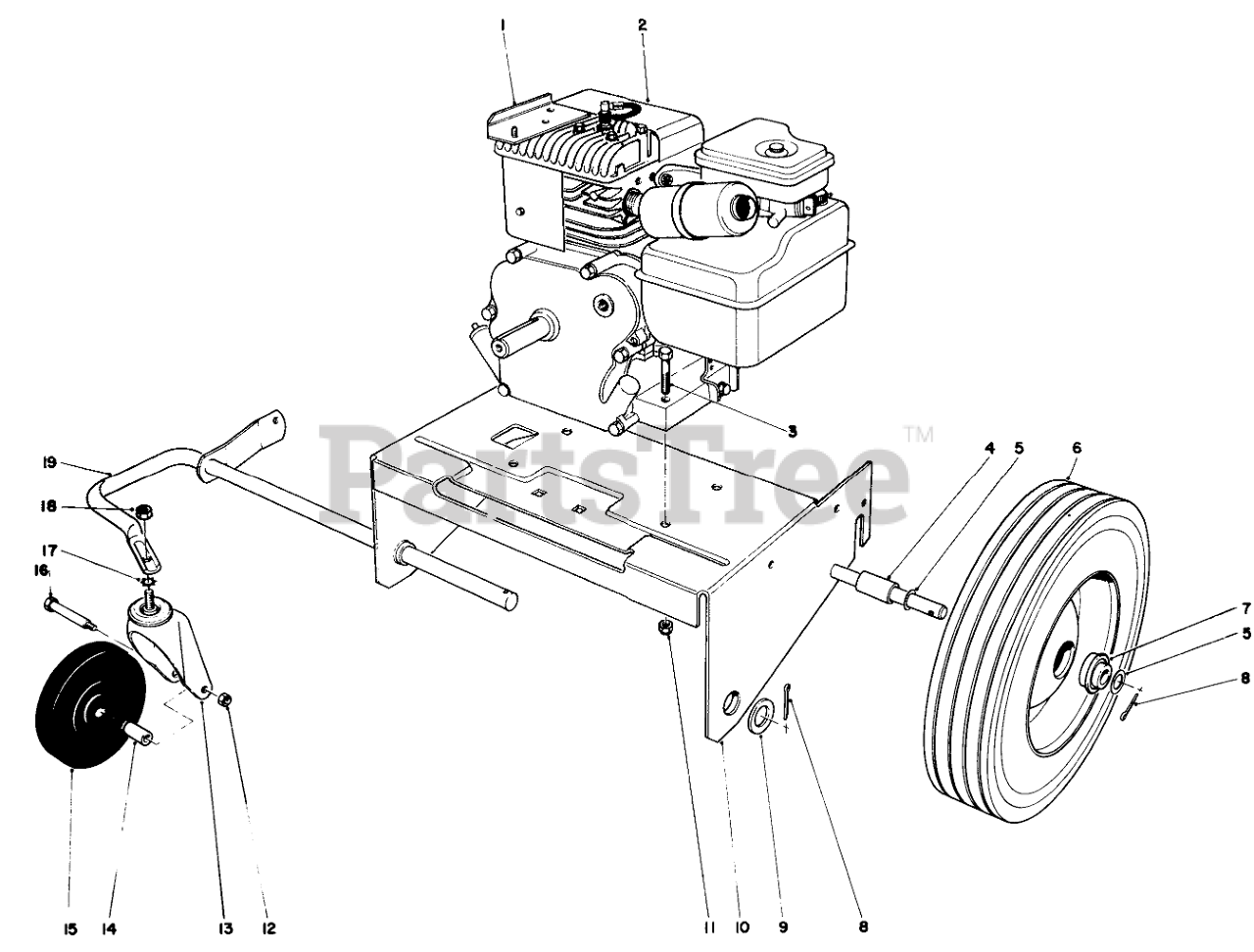

ENGINE AND BASE ASSEMBLY (MODEL 62911) Parts Diagram

  • Title

1

Toro 20-5540

MOUNTING BRKT WA

$

$

Not available

2

Toro 221-461

Engine

$

$

Currently unavailable

3

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 20-5410

SPACER-AXLE

$31.99

$

Usually ships in 3-6 days

0

5

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

6

Toro 20-6100

WHEEL

$162.99

$

Usually ships in 3-6 days

0

7

Toro 251-258

BEARING

$64.99

$

Usually ships in 3-6 days

0

8

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

9

Toro 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

10

Toro 20-5560

Engine Plate
(Superseded to 20-5560-03)

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

12

Toro 242-58

Nut

$

$

Not available

13

Toro 242-56

Horn

$

$

Currently unavailable

14

Toro 242-59

Wheel Bushing

$

$

Currently unavailable

15

Toro 241-120

Wheel

$

$

Not available

16

Toro 242-57

Axle

$

$

Not available

17

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

18

Toro 32149-4

Nut

$

$

Currently unavailable

19

Toro 20-5710

Front Wheel Support

$

$

Currently unavailable

Toro 20-5850

Caster Wheel Assembly (Incl. Ref. Nos. 12-16)

Note: Not illustrated

$

$

Currently unavailable

Hitch Kit (Model 59087)

Note: Not illustrated

$

$

Not available

Flap Kit (Model 59086)

Note: Not illustrated

$

$

Not available

Toro 20-6680

Loose Parts Bag Assembly

Note: Not illustrated

$

$

Currently unavailable
