62922 - Toro Lawn Vacuum, 5hp (SN: 004000001 - 004999999) (1974) CONTROLS & HANDLE ASSEMBLY (MODEL 62922) Parts Diagram

Lawn Vacuum, 5hp

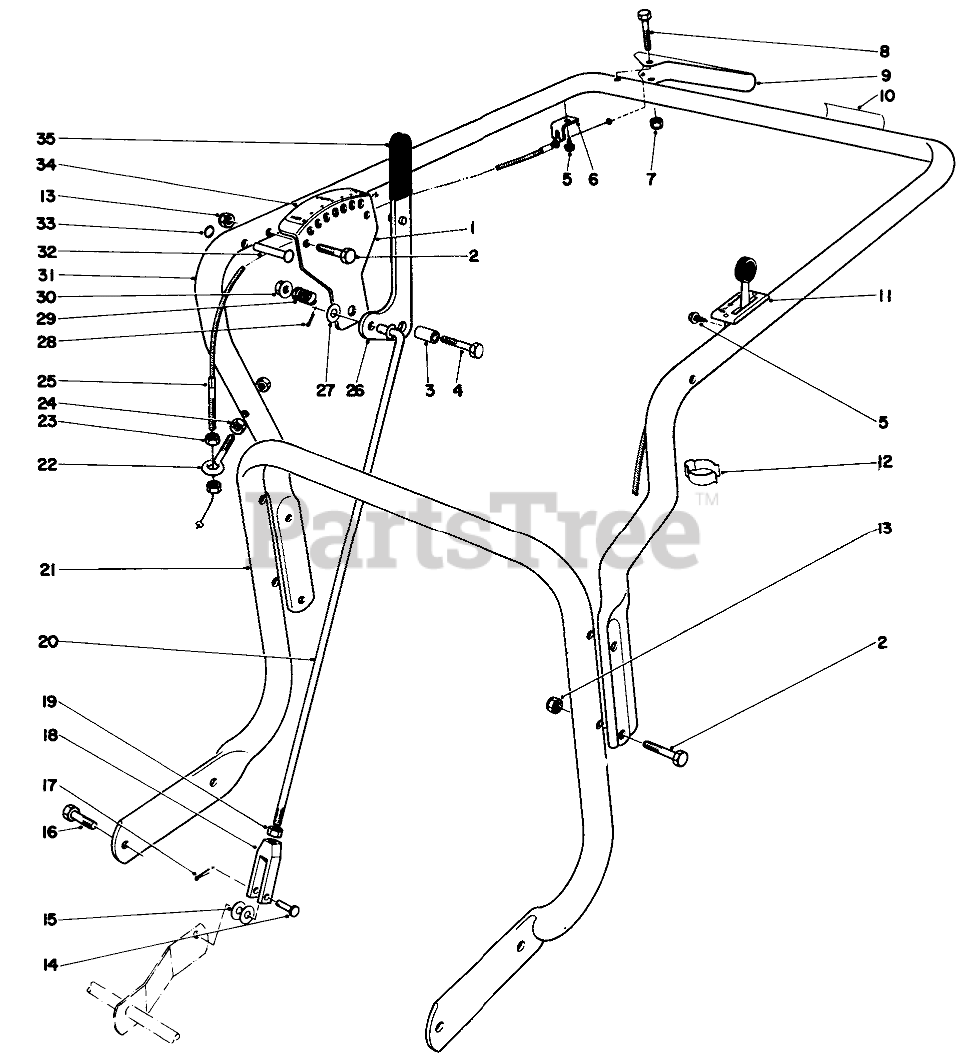

CONTROLS & HANDLE ASSEMBLY (MODEL 62922) Parts Diagram

  • Title
1

Toro 20-5820

Adjustment Bracket
(Superseded to 20-5820-03)

$

$

Not available

2

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

3

Toro 20-5650

SPACER

$

$

Not available

4

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

5

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 20-8780

RETAINING-CLIP

$

$

Not available

7

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

8

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 20-6590

Lever, Traction Control
(Superseded to 25-7880)

$

$

Not available

10

Toro 20-8700

TRACTION CONT DECAL

$

$

Not available

11

Toro 20-6860

Throttle Control
(Superseded to 23-3610)

$

$

Not available

12

Toro 2412-47

BODEN CLIP

$

$

Not available

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

18

Toro 282-1

Yoke
(Superseded to 282-1-01)

$

$

Not available

19

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

20

Toro 20-5760

Connector Rod

$

$

Currently unavailable

21

Toro 20-5810

HANDLE

$

$

Not available

22

Toro 3290-362

Eye Bolt
(Superseded to 33-2830)

$

$

Not available

23

Toro 32149-5

NUT-KEPS
(Superseded to 121-4698)

$1.99

$

Usually ships in 3-6 days

0

24

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

25

Toro 20-6980

BODINE CABLE

$

$

Not available

26

Toro 20-5620

Adjustment Handle

$

$

Currently unavailable

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

28

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

29

Toro 20-6110

SPRING-COMPRESSION

$13.99

$

Usually ships in 3-6 days

0

30

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

31

Toro 20-5670

Handle

$

$

Currently unavailable

32

Toro 3263-9

RIVET

$

$

Not available

33

Toro 32151-3

RING-GRIP

$6.99

$

In Stock, only 3 left!

0

34

Toro 20-6880

HT ADJ DECAL

$

$

Not available

35

Toro 3-7877

GRIP-HANDLE

$

$

Not available
