6291570x61 (1695367) - Murray Ultra 29" Snow Thrower (2007) Handle Assembly Parts Diagram

Ultra 29" Snow Thrower

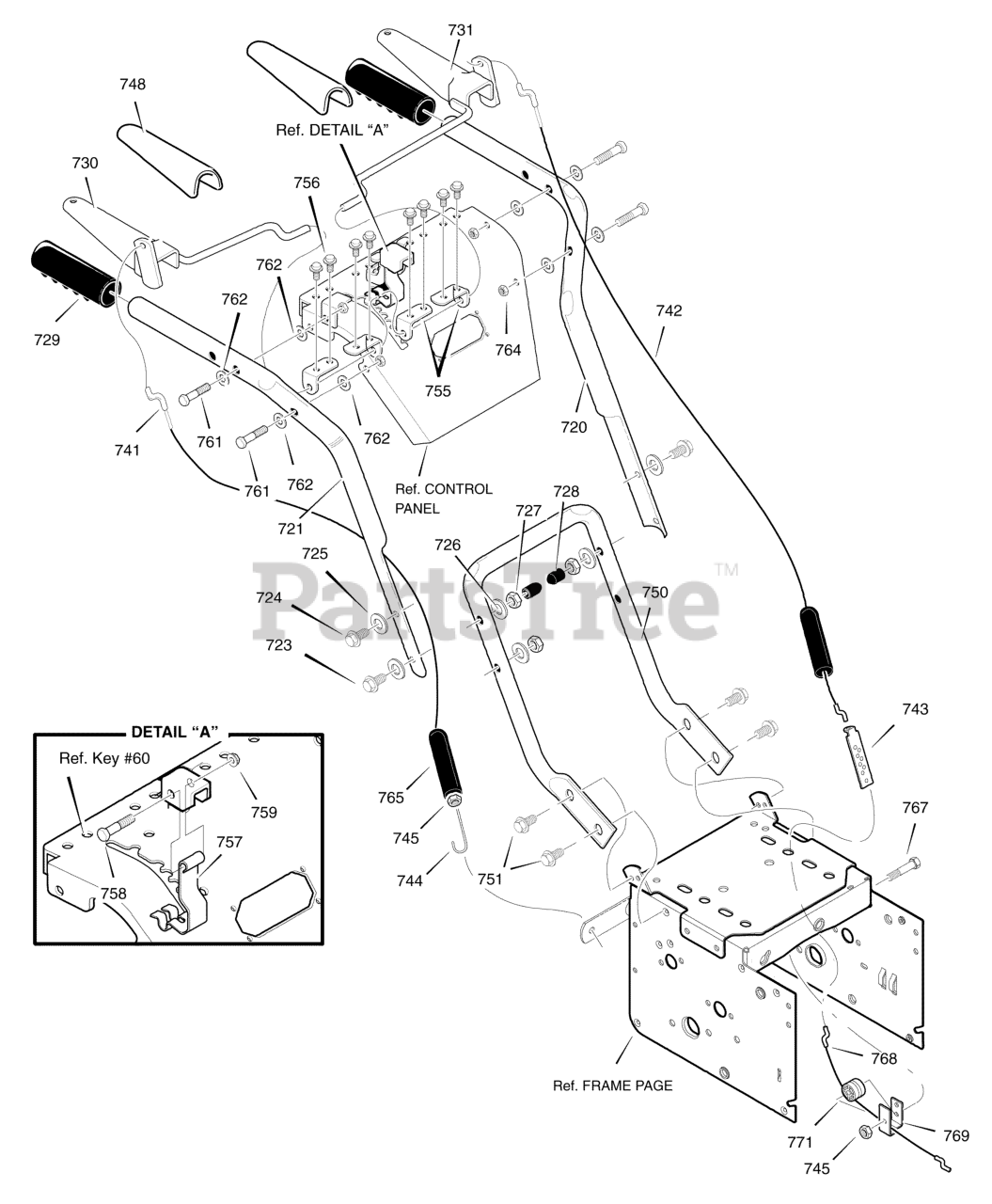

Handle Assembly Parts Diagram

  • Title
720

Murray 1740907HMA

HANDLE, UPPER LH

$29.99

$

Usually ships in 2-12 days

0

721

Murray 1740908HMA

HANDLE, UPPER RH

$29.99

$

Usually ships in 2-12 days

0

723

Murray 71007MA

SCREW
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

724

$4.49

$

Usually ships in 2-12 days

0

725

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

726

$3.49

$

Usually ships in 2-12 days

0

727

Murray 71044MA

NUT, REGHEX

$3.49

$

Usually ships in 2-12 days

0

728

Murray 7289MA

STOP, PLASTIC

$4.49

$

Usually ships in 2-12 days

0

729

Murray 761209MA

GRIP-HANDLE

$

$

Not available

730

Murray 760290YZMA

LEVER, ASSEMBLY CLUTCH DRIVE RH

$186.99

$

Usually ships in 2-12 days

0

731

Murray 760289YZMA

LEVER, ASSEMBLY CLUTCH DRIVE LH

$198.99

$

Usually ships in 2-12 days

0

741

Murray 761590MA

CABLE, AUGER CLUTCH

$15.99

$

In Stock, only 4 left!

0

742

Murray 1502112MA

CABLE, AUGER DRIVE

$11.99

$

Usually ships in 2-12 days

0

743

Murray 313441MA

BRACKET, CABLE ADJUSTER

$

$

Not available

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 12

0

745

Murray 15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

748

Murray 760992MA

GRIP, CLUTCH HANDLE

$4.99

$

In Stock, only 1 left!

0

750

Murray 1740580HMA

HANDLE, LOWER

$148.99

$

Usually ships in 2-12 days

0

751

Murray 25X021MA

SCREW
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

755

$4.99

$

In Stock, only 2 left!

0

756

Murray 760858MA

SCREW
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

757

Murray 760227MA

SPRING, CAM LOCK

$

$

Not available

758

Murray 45526MA

BOLT, HEX

$5.49

$

In Stock, only 1 left!

0

759

Murray 71038MA

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

761

$4.49

$

Usually ships in 2-12 days

0

762

Murray 71071MA

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

764

Murray 710026MA

NUT, HEX
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

765

Murray 308146MA

BOOT, CLUTCH SPRING

$6.49

$

Usually ships in 2-12 days

0

767

Murray 001798MA

BOLT, HEX 1/4-20 X 1.50

$4.49

$

In Stock, only 1 left!

0

768

Murray 1501122MA

CABLE, LOWER DRIVE 12"

$8.49

$

In Stock, Qty 9

0

769

Murray 1501059YZMA

BRACKET, CABLE SPOOL YZ

$3.49

$

In Stock, only 1 left!

0

771

Murray 579860MA

SPOOL-CABLE, AUGER CLUTCH

$5.99

$

In Stock, Qty 7

0
