62912 - Toro Lawn Vacuum, 5hp (SN: 020000001 - 029999999) (1992) CONTROL & HANDLE ASSEMBLY (MODEL 62912) Parts Diagram

Lawn Vacuum, 5hp

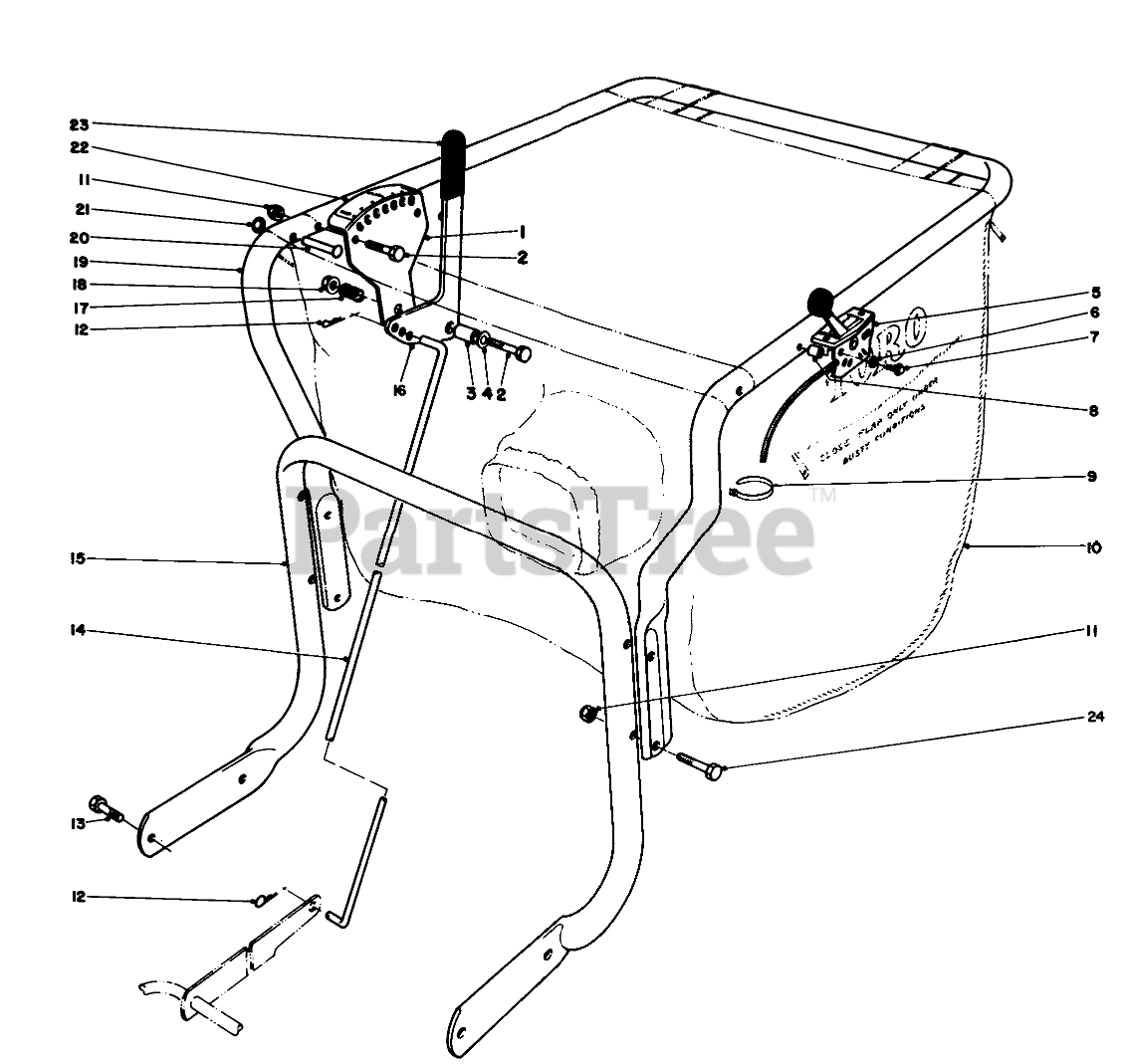

CONTROL & HANDLE ASSEMBLY (MODEL 62912) Parts Diagram

  • Title

1

Toro 20-5820

Adjustment Bracket
(Superseded to 20-5820-03)

$

$

Not available

2

Toro 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

3

Toro 20-5650

SPACER

$

$

Not available

4

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 23-3610

THROTTLE CONTROL

$

$

Not available

6

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

7

Toro 32104-72

10-24 X 1 PAN HD SCR

$

$

Not available

8

Toro 23-3620

SPACER

$

$

Not available

9

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

10

Toro 71-3540

VACUUM BAG
(Superseded to 105-1245)

$244.99

$

In Stock, only 1 left!

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

13

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 33-2410

HEIGHT ADJ. ROD

$128.99

$

Usually ships in 3-6 days

0

15

Toro 20-5810

HANDLE

$

$

Not available

16

Toro 23-3410

Handle-Adjustment
(Superseded to 23-3410-03)

$

$

Not available

17

Toro 20-6110

SPRING-COMPRESSION

$13.99

$

Usually ships in 3-6 days

0

18

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

19

Toro 23-3570

HANDLE-UPPER, VACUUM

$

$

Not available

20

Toro 3263-9

RIVET

$

$

Not available

21

Toro 3290-418

NUT-PUSH IN

$3.49

$

In Stock, only 3 left!

0

22

Toro 20-6880

HT ADJ DECAL

$

$

Not available

23

Toro 3-7877

GRIP-HANDLE

$

$

Not available

24

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0
