62912 - Toro Lawn Vacuum, 5hp (SN: 009000001 - 009999999) (1979) ENGINE AND BASE ASSEMBLY (MODEL 62912) Parts Diagram

Lawn Vacuum, 5hp

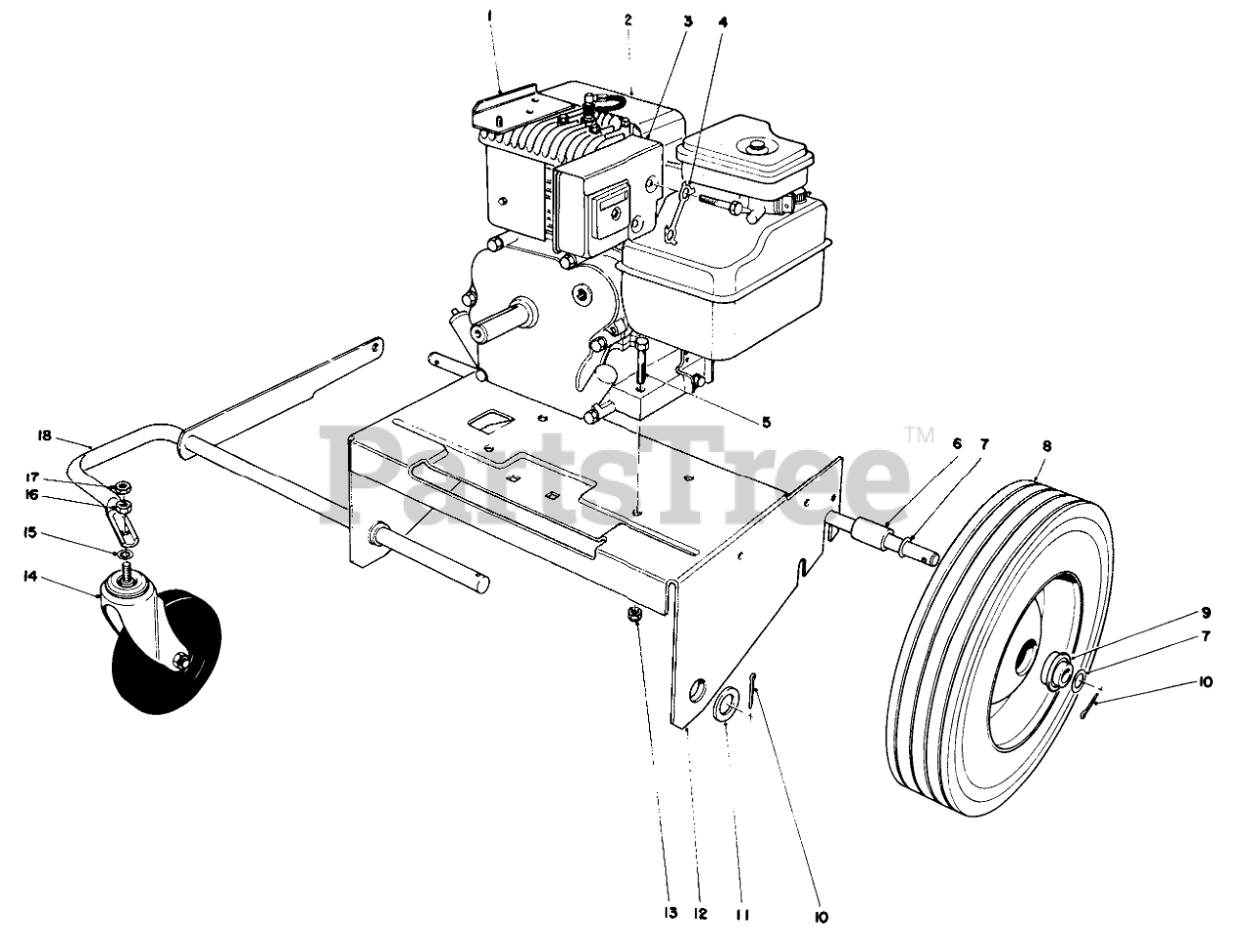

ENGINE AND BASE ASSEMBLY (MODEL 62912) Parts Diagram

  • Title

1

Toro 20-5540

MOUNTING BRKT WA

$

$

Not available

2

Toro 221-500

Engine

$

$

Currently unavailable

3

Toro 25-8080

Heat Shield

$

$

Not available

4

Toro 25-8070

Lock Strip

$

$

Not available

5

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 20-5410

SPACER-AXLE

$

$

Not available

7

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

8

Toro 20-6100

Wheel (Incl. Ref. #9)

$184.99

$

Usually ships in 3-6 days

0

9

Toro 251-258

BEARING

$

$

Not available

10

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

11

Toro 3256-29

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

12

Toro 20-5560

Engine Plate
(Superseded to 20-5560-03)

$

$

Not available

13

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

14

Toro 23-3320

CASTER

$243.99

$

Usually ships in 3-6 days

0

15

Toro 3254-4

WASHER-LOCK/INT

$0.99

$

In Stock, only 1 left!

0

16

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

18

Toro 23-3280

Front Wheel Support
(Superseded to 23-3280-03)

$311.99

$

Usually ships in 3-6 days

0

Toro 28-5860

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
