62912 - Toro Lawn Vacuum, 5hp (SN: 006000001 - 006999999) (1986) ENGINE BRIGGS & STRATTON MODEL NO. 130202-1640-01 Parts Diagram

Lawn Vacuum, 5hp

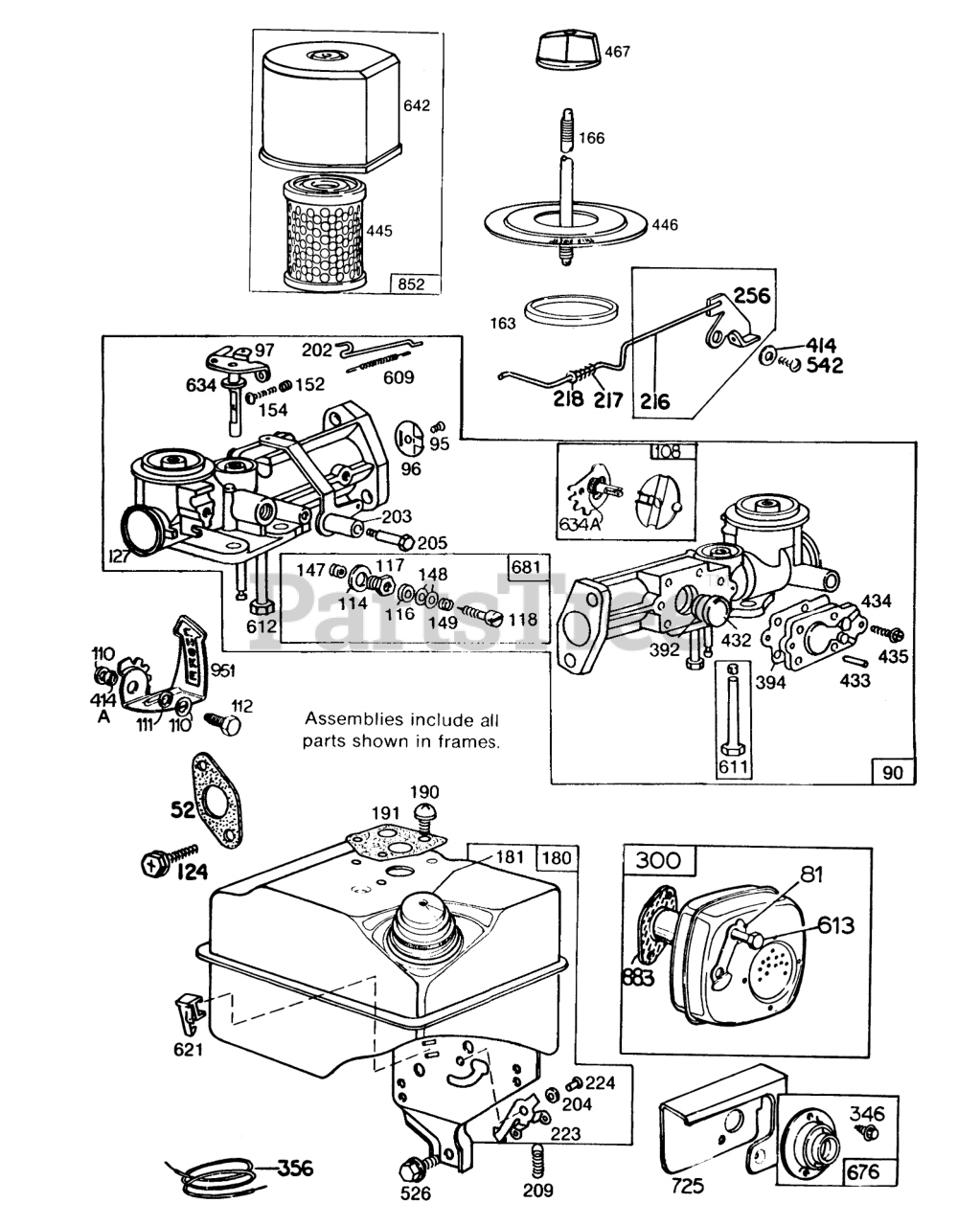

ENGINE BRIGGS & STRATTON MODEL NO. 130202-1640-01 Parts Diagram

  • Title

52

Briggs & Stratton 27355

Gasket-Carburetor
(Superseded to 27355S)

Note: Included in Gasket Set-Part No. 297615.

$3.99

$

In Stock, Qty 20+

0

81

Briggs & Stratton 222263

Lockplate
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

90

Toro 397457

Carburetor Assembly

$

$

Currently unavailable

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 211203

Valve Throttle

$8.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 299212

Shaft & Lever-Throttle
(Superseded to 691946)

$30.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 397134

Valve Group-Choke

$13.99

$

In Stock, Qty 5

0

110

Briggs & Stratton 221226

Washer-Choke Lever

$3.49

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 94060

Washer-Wave
(Superseded to 691089)

$3.99

$

Usually ships in 2-12 days

0

112

Briggs & Stratton 93686

Screw-Hex Head
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

114

Briggs & Stratton 66594

Gasket Valve Nut
(Superseded to 691608)

$5.99

$

In Stock, Qty 20+

0

116

Briggs & Stratton 65978

Packing-Needle
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

117

Briggs & Stratton 230590

Nut-Needle Valve
(Superseded to 690504)

$3.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 23433

Valve-Needle
(Superseded to 690266)

$9.49

$

In Stock, only 3 left!

0

124

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 22831

Plug-Welch
(Superseded to 691585)

$6.99

$

In Stock, Qty 5

0

147

Briggs & Stratton 230591

Seat-Needle Valve
(Superseded to 692134)

$9.49

$

In Stock, only 4 left!

0

148

Briggs & Stratton 22235

Washer-Needle Valve
(Superseded to 690257)

$4.99

$

In Stock, only 1 left!

0

149

Briggs & Stratton 26336

Spring Needle Valve
(Superseded to 691592)

$3.99

$

In Stock, only 4 left!

0

152

Briggs & Stratton 260575

Spring-Adjustment
(Superseded to 691783)

$7.99

$

In Stock, Qty 10

0

154

Briggs & Stratton 93527

Screw-Rd. Hd.
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271139

Gasket-Air Cleaner
(Superseded to 271139S)

$3.99

$

In Stock, Qty 20+

0

166

Briggs & Stratton 231332

Stud-air Cleaner

$13.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 397137

Fuel Tank Assembly
(Superseded to 494600)

$

$

Not available

181

Briggs & Stratton 397567

Cap-Fuel Tank
(Superseded to 394818S)

$33.99

$

In Stock, only 1 left!

0

190

Briggs & Stratton 93440

Screw-Fuel Tank
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 27911

Gasket-Fuel Tank Mtg.
(Superseded to 272409S)

Note: Included in Gasket Set-Part No. 297615.

$3.99

$

In Stock, Qty 20+

0

202

Briggs & Stratton 260678

Link-Throttle
(Superseded to 691786)

$

$

Not available

203

Briggs & Stratton 393919

Crank-Bell
(Superseded to 691965)

$13.99

$

Usually ships in 2-12 days

0

204

Briggs & Stratton 222962

Bushing-Lever

$1.49

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 93838

Screw-Shoulder
(Superseded to 691630)

$10.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 260695

Spring
(Superseded to 796260)

$4.99

$

In Stock, Qty 13

0

216

Briggs & Stratton 299859

Link-Choke (Includes Bell Crank)

$5.99

$

Usually ships in 2-12 days

0

217

Briggs & Stratton 260189

Spring-Choke Link

$2.99

$

Usually ships in 2-12 days

0

218

Briggs & Stratton 221198

Washer
(Superseded to 691722)

$6.99

$

Usually ships in 2-12 days

0

223

Briggs & Stratton 221517

Lever-Governor
(Superseded to 398584)

$8.99

$

Usually ships in 2-12 days

0

224

Briggs & Stratton 93491

Rivet

$1.49

$

Usually ships in 2-12 days

0

256

Briggs & Stratton 299859

Crank-Bell(Includes Choke Link)

$5.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 393615

Muffler
(Superseded to 494585)

$23.99

$

In Stock, only 1 left!

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

356

Briggs & Stratton 298693

Wire-Ground
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

392

Briggs & Stratton 260455

Spring-Fuel Pump
(Superseded to 692206)

$4.49

$

In Stock, Qty 7

0

394

Briggs & Stratton 270026

Diaphragm

$3.99

$

In Stock, Qty 20+

0

414

Briggs & Stratton 220982

Washer
(Superseded to 691721)

$7.49

$

In Stock, only 1 left!

0

414A

Briggs & Stratton 231325

Spacer-Choke Lever

$3.49

$

Usually ships in 2-12 days

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, only 3 left!

0

433

Briggs & Stratton 93265

Pin-Roll
(Superseded to 690296)

$6.49

$

Usually ships in 2-12 days

0

434

Briggs & Stratton 210959

Cover-Diaphragm
(Superseded to 691713)

$10.99

$

In Stock, only 1 left!

0

435

Briggs & Stratton 93141

Screw
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 396424

Filter-Air
(Superseded to 396424S)

$13.99

$

In Stock, only 3 left!

0

446

Briggs & Stratton 222844

Base-Air Cleaner
(Superseded to 691735)

$17.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 212706

Knob-Air Cleaner
(Superseded to 691668)

$5.49

$

In Stock, only 1 left!

0

526

Briggs & Stratton 93343

Screw
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

542

Briggs & Stratton 92265

Screw

$2.49

$

Usually ships in 2-12 days

0

609

Briggs & Stratton 260694

Spring-Throttle Link
(Superseded to 690498)

$7.49

$

In Stock, Qty 11

0

611

Briggs & Stratton 391813

Tube-Pick-Up

$

$

Not available

612

Briggs & Stratton 296811

Pipe-Fuel
(Superseded to 497413S)

$7.49

$

In Stock, Qty 5

0

613

Briggs & Stratton 93935

Screw
(Superseded to 691413)

$5.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch-Stop
(Superseded to 297472S)

$

$

Not available

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 13

0

634A

Briggs & Stratton 270382

Washer
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

642

Briggs & Stratton 223306

Cover-Air Cleaner
(Superseded to 493822)

$

$

Not available

676

Briggs & Stratton 395700

Deflector-Exhaust

$15.99

$

In Stock, only 1 left!

0

681

Briggs & Stratton 299060

Kit-Needle Valve

$21.99

$

In Stock, only 2 left!

0

725

Briggs & Stratton 222595

Shield-Heat

$

$

Not available

852

Briggs & Stratton 396397

Air Cleaner Group
(Superseded to 493822)

$

$

Not available

883

Briggs & Stratton 270918

Gasket-Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 2 left!

0

951

Briggs & Stratton 223286

Lever-Choke
(Superseded to 691180)

$11.99

$

Usually ships in 2-12 days

0
