62912 - Toro Lawn Vacuum, 5hp (SN: 006000001 - 006999999) (1986) ENGINE AND BASE ASSEMBLY (MODEL 62923) Parts Diagram

Lawn Vacuum, 5hp

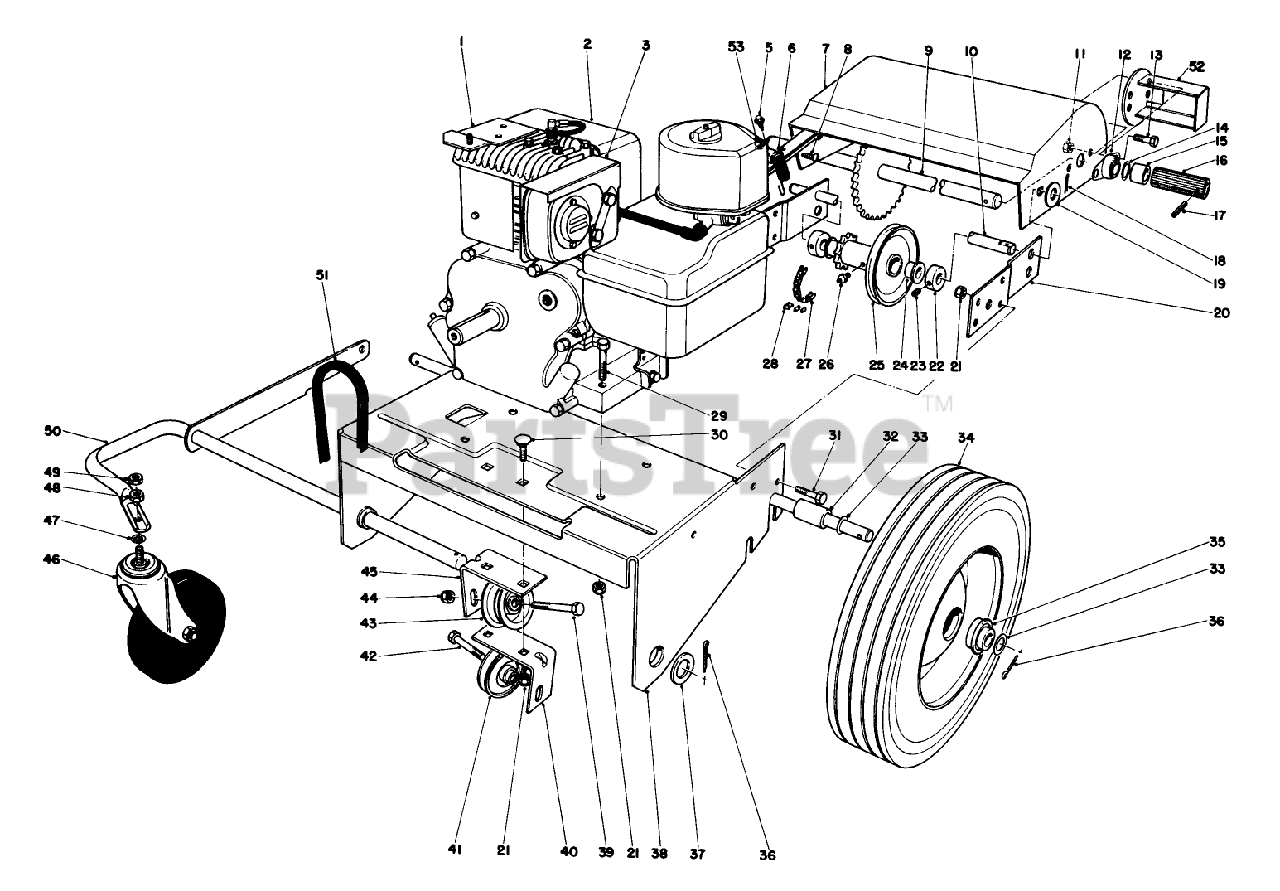

ENGINE AND BASE ASSEMBLY (MODEL 62923) Parts Diagram

  • Title

1

Toro 39-4680

MTG BRKT WA B

$65.99

$

Usually ships in 3-6 days

0

2

Toro 221-643

Engine

$

$

Not available

3

Toro 39-4690

HEAT SHIELD

$

$

Not available

5

Toro 32140-32

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

6

Toro 23-3520

SPRING-TRACTION

$23.99

$

Usually ships in 3-6 days

0

7

Toro 20-6040

GUARD WA
(Superseded to 93-8461-03)

$

$

Not available

8

Toro 3290-111

10-24 X 3/8 PAN HD SC

$

$

Not available

9

Toro 20-7270

SHAFT-WHEEL, FRICTION

$321.99

$

Usually ships in 3-6 days

0

10

Toro 20-5870

SHAFT-IDLER

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 256-236

BEARING-MOUNT, FLANGE

$29.99

$

Usually ships in 3-6 days

0

13

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

14

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

15

Toro 20-5460

SPACER

$28.99

$

Usually ships in 3-6 days

0

16

Toro 20-5960

WHEEL-FRICTION

$60.99

$

Usually ships in 3-6 days

0

17

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

18

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

19

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 43-6830

Bracket Mounting
(Superseded to 43-6830-03)

$34.99

$

Usually ships in 3-6 days

0

21

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

22

Toro 20-5950

Set Screw Collar (Incl. Ref. #23)

$

$

Not available

23

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 4 left!

0

24

Toro 256-105

BUSHING-FLANGE

$

$

Not available

25

Toro 20-6000

Idler Assembly (Incl.Ref. #24 & 26)

$

$

Not available

26

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

27

Toro 3-3434

Traction Chain (Incl.Ref. #28)

$64.99

$

Usually ships in 3-6 days

0

28

Toro 2710-31

LINK-CONNECTING, NO. 35

$2.49

$

In Stock, only 1 left!

0

29

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 3230-20

SCREW-CARR
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

31

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 20-5410

SPACER-AXLE

$

$

Not available

33

Toro 7-3590

Wheel (Incl. Ref. #35)

$2.99

$

In Stock, only 1 left!

0

34

Toro 20-6100

WHEEL

$184.99

$

Usually ships in 3-6 days

0

35

Toro 251-258

BEARING

$

$

Not available

36

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

37

Toro 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

38

Toro 20-5560

Engine Plate
(Superseded to 20-5560-03)

$

$

Not available

39

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Toro 20-8690

Bracket-Idler Mount L.H.
(Superseded to 20-8690-03)

$

$

Not available

41

Toro 12-5820

PULLEY-IDLER

$29.99

$

In Stock, Qty 6

0

42

Toro 323-19

SCREW-HH

$1.99

$

In Stock, Qty 11

0

43

Toro 12-6700

PULLEY-IDLER

$29.99

$

In Stock, only 1 left!

0

44

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

45

Toro 20-8680

Bracket-Idler Mount R.H.
(Superseded to 20-8680-03)

$

$

Not available

46

Toro 23-3320

CASTER

$243.99

$

Usually ships in 3-6 days

0

47

Toro 3254-4

WASHER-LOCK/INT

$0.99

$

In Stock, only 1 left!

0

48

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

49

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

50

Toro 23-3280

Front Wheel Support
(Superseded to 23-3280-03)

$311.99

$

Usually ships in 3-6 days

0

51

Toro 20-5990

BELT-V

$31.99

$

Usually ships in 3-6 days

0

52

Toro 37-9210

Guard
(Superseded to 37-9210-03)

$

$

Not available

53

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0
