62912 - Toro Lawn Vacuum, 5hp (SN: 002000001 - 002999999) (1982) HANDLE ASSEMBLY (MODEL 62923) Parts Diagram

Lawn Vacuum, 5hp

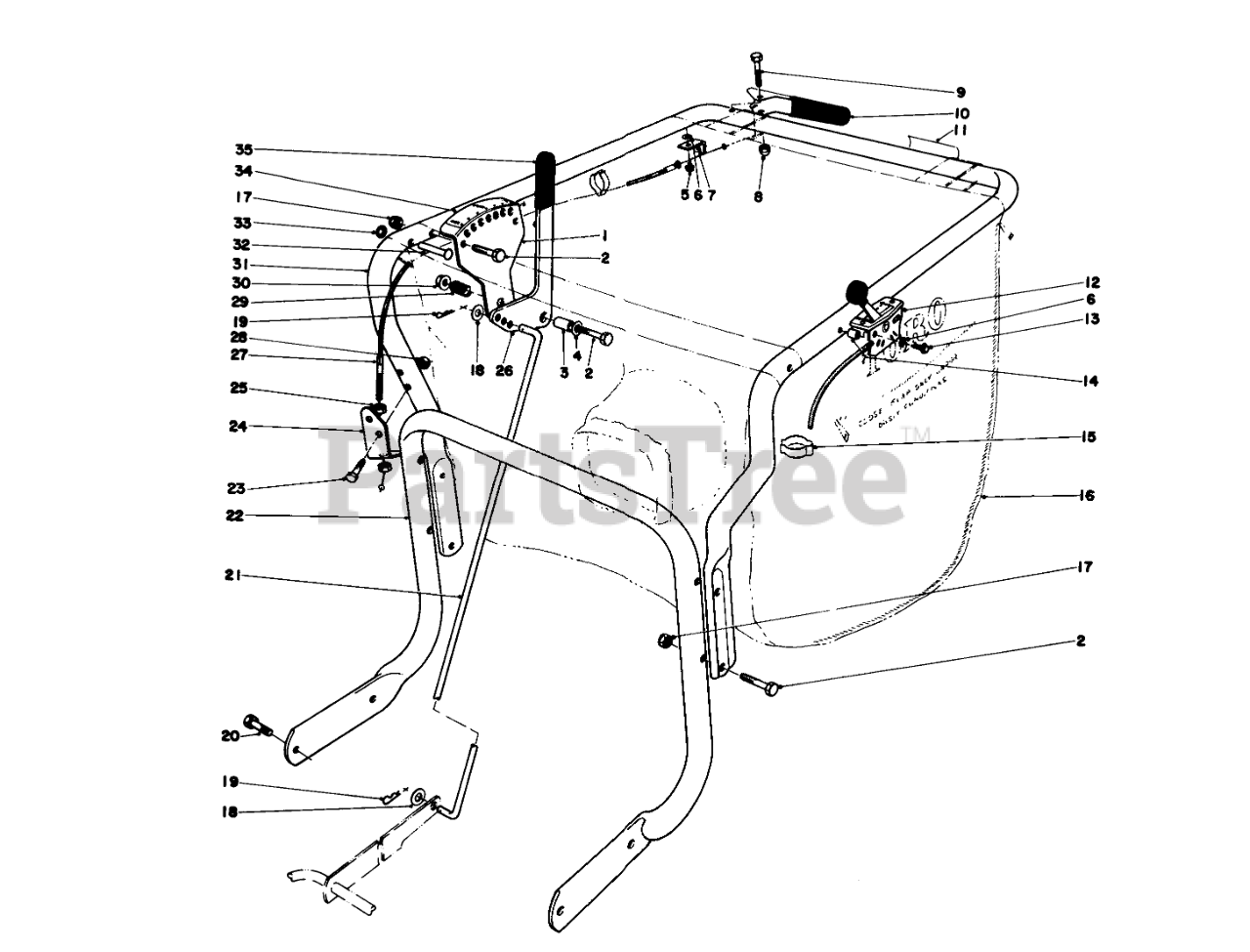

HANDLE ASSEMBLY (MODEL 62923) Parts Diagram

  • Title
1

Toro 20-5820

Adjustment Bracket
(Superseded to 20-5820-03)

$

$

Not available

2

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 20-5650

SPACER

$

$

Not available

4

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

6

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

7

Toro 20-8780

RETAINING-CLIP

$

$

Not available

8

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

9

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 25-7880

LEVER W/GRIP

$

$

Not available

11

Toro 20-8700

TRACTION CONT DECAL

$

$

Not available

12

Toro 23-3610

THROTTLE CONTROL

$

$

Not available

13

Toro 32104-72

10-24 X 1 PAN HD SCR

$

$

Not available

14

Toro 23-3620

SPACER

$

$

Not available

15

Toro 2412-47

BODEN CLIP

$

$

Not available

16

Toro 20-6090

Bag-Vacuum
(Superseded to 105-1245)

$244.99

$

In Stock, only 1 left!

0

17

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

19

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

20

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 33-2410

HEIGHT ADJ. ROD

$128.99

$

Usually ships in 3-6 days

0

22

Toro 20-5810

HANDLE

$

$

Not available

23

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

24

Toro 33-2830

MOUNT-BOWDEN, LOWER

$

$

Not available

25

Toro 32149-5

NUT-KEPS
(Superseded to 121-4698)

$1.99

$

Usually ships in 3-6 days

0

26

Toro 23-3410

Handle-Adjustment
(Superseded to 23-3410-03)

$

$

Not available

27

Toro 25-7860

FWD ASSY CABLE

$106.99

$

Usually ships in 3-6 days

0

28

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

29

Toro 20-6110

SPRING-COMPRESSION

$13.99

$

Usually ships in 3-6 days

0

30

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

31

Toro 23-3570

HANDLE-UPPER, VACUUM

$

$

Not available

32

Toro 3263-9

RIVET

$

$

Not available

33

Toro 3290-418

NUT-PUSH IN

$3.49

$

In Stock, only 3 left!

0

34

Toro 20-6880

HT ADJ DECAL

$

$

Not available

35

Toro 3-7877

GRIP-HANDLE

$

$

Not available
