629118x43A - Yard King 29" Snow Thrower (2003) Wheels Parts Diagram

29" Snow Thrower

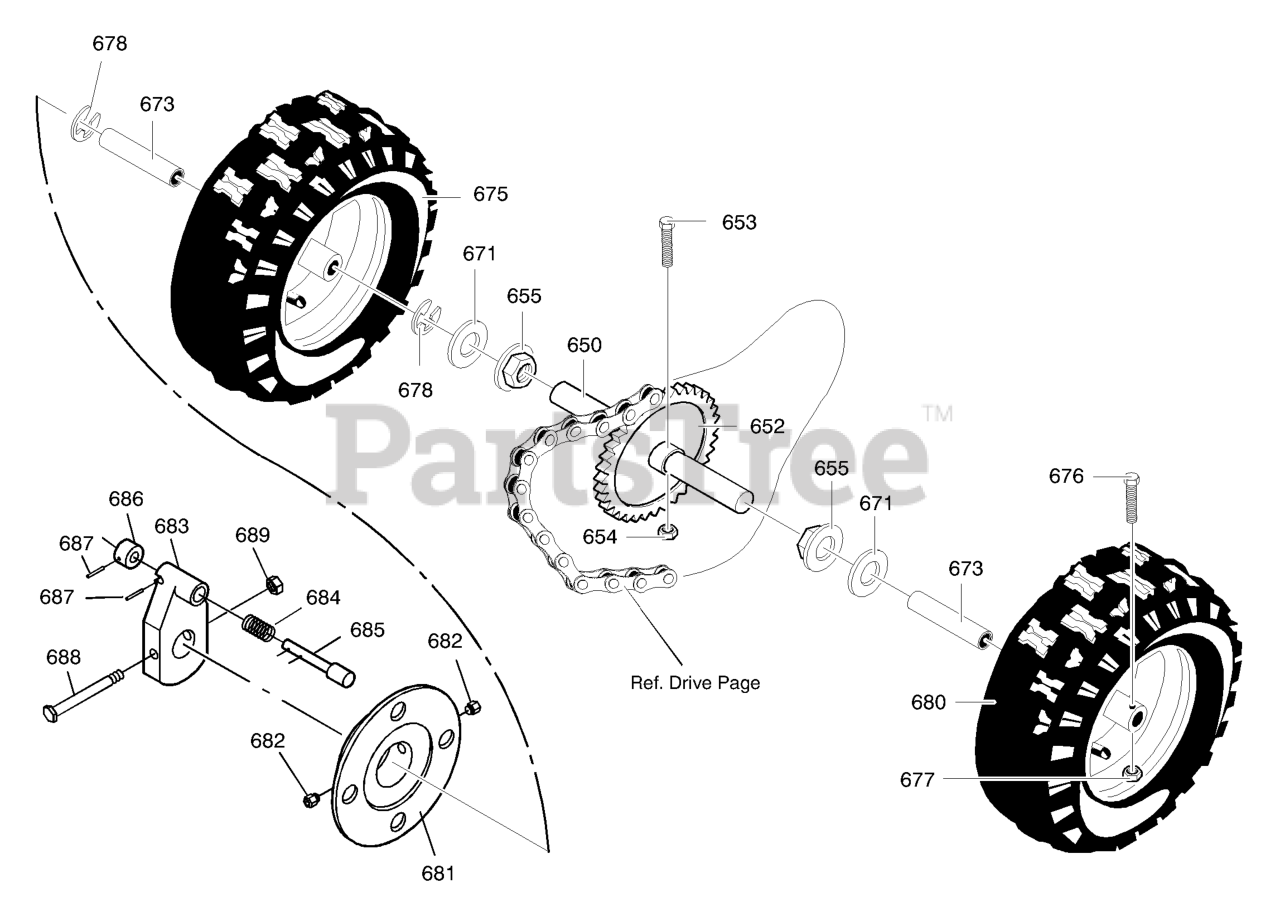

Wheels Parts Diagram

  • Title

650

Murray 1501563 YZ

SHAFT, AXLE

$69.99

$

In Stock, only 3 left!

0

652

Murray 1501089

SPRKT & HUB
(Superseded to 1501089MA)

$42.99

$

In Stock, Qty 7

0

653

Murray 01X193MA

SCREW, 1/4-20X1.75
(Superseded to 704212)

$5.49

$

In Stock, Qty 20+

0

654

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

655

Murray 1501114MA

BEARING, AXLE

$11.99

$

In Stock, Qty 20+

0

671

Murray 712120MA

FLATWASHER

$4.99

$

In Stock, Qty 20+

0

673

Murray 1501138MA

BUSHING, WHEEL

$

$

Not available

675

Murray 584535MA

TIRE & RIM, RIGHT

$133.99

$

Usually ships in 2-12 days

0

676

Murray 577015MA

SCREW, 1/4-20X1.75

$4.99

$

In Stock, only 3 left!

0

677

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

678

Murray 239MA

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

680

Murray 584535MA

TIRE & RIM, LEFT

$133.99

$

Usually ships in 2-12 days

0

681

Murray 1501032E701

DISC, WHEEL

$32.99

$

Usually ships in 2-12 days

0

682

Murray 2001066MA

SCREW

$5.49

$

In Stock, Qty 20+

0

683

Murray 1501546

HUB, WHEEL LOCK

$

$

Currently unavailable

684

Murray 164X34MA

SPRING, COMPRESSION

$5.99

$

In Stock, Qty 14

0

685

Murray 1501033 YZ

PIN, LOCK

$28.99

$

In Stock, only 1 left!

0

686

Murray 1501034MA

KNOB

$23.99

$

Usually ships in 2-12 days

0

687

Murray 032X79

PIN

$

$

Not available

688

Murray 73839MA

SCREW

$5.49

$

In Stock, Qty 7

0

689

Murray 15X116MA

NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
