629118x31A - Scotts 29" Snow Thrower (2005) Chute Rod Parts Diagram

29" Snow Thrower

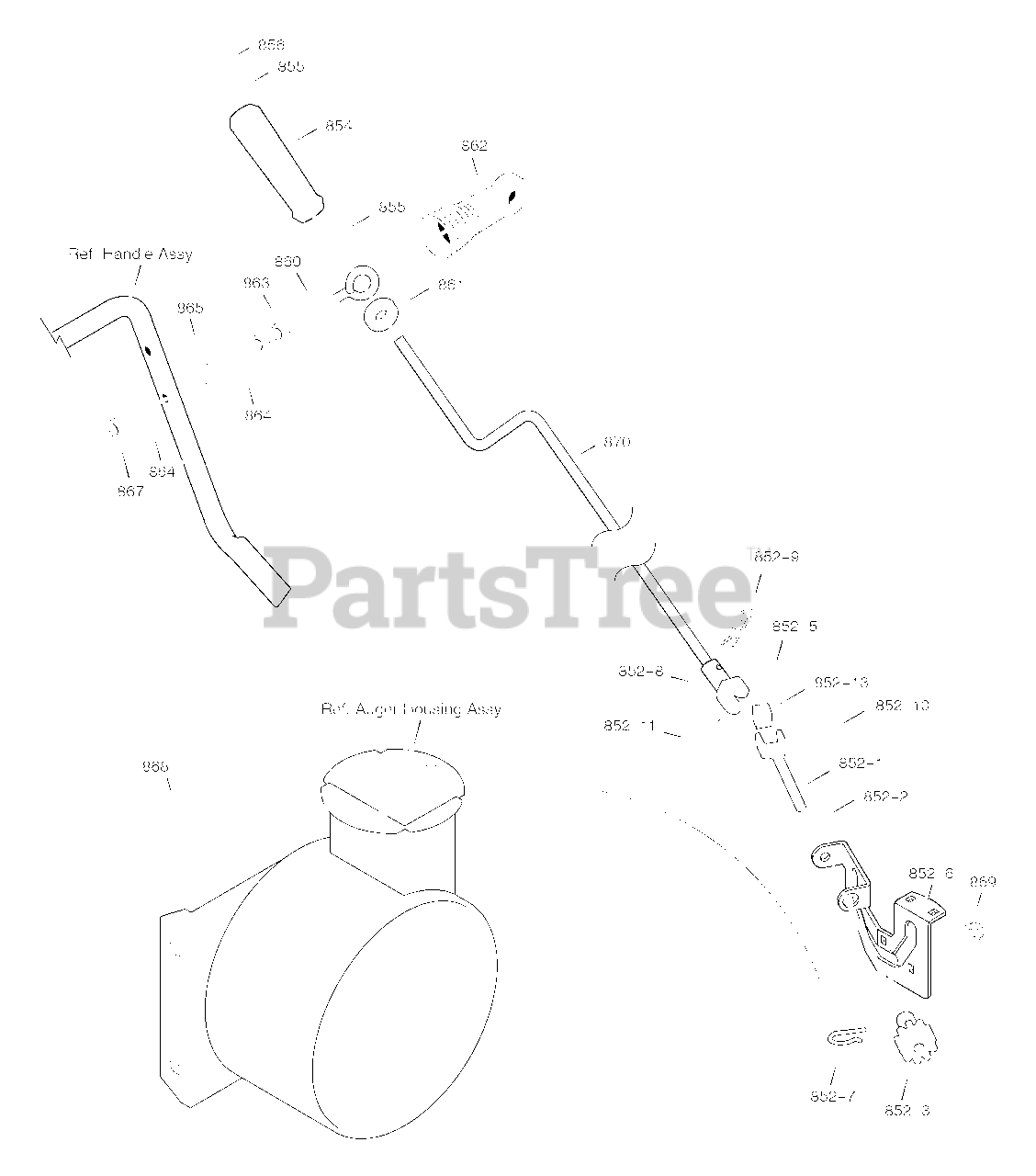

Chute Rod Parts Diagram

  • Title
852-1

Murray 1501309 YZ

ASSEMBLY, YOKE & ROD

$

$

Not available

852-2

Murray 313431MA

WASHER, CURVED SPRING

$4.99

$

In Stock, only 1 left!

0

852-3

Murray 1501067MA

GEAR, CHUTE ROTATION 9T

$17.99

$

Usually ships in 2-12 days

0

852-5

Murray 579493MA

PIN, COTTER

$4.49

$

In Stock, only 1 left!

0

852-6

Murray 1501306E701MA

BRACKET, GEAR MOUNT

$37.99

$

In Stock, only 1 left!

0

852-7

Murray 1501293MA

PIN, HAIR

$4.99

$

Usually ships in 2-12 days

0

852-8

Murray 1501075 YZ

ASSEMBLY, YOKE ADAPTER YZ
(Superseded to 1501075YZMA)

$10.99

$

Usually ships in 2-12 days

0

852-9

Murray 711682MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

852-10

Murray 578060MA

PIN, UNIVERSAL JOINT

$7.49

$

Usually ships in 2-12 days

0

852-11

Murray 578309MA

PIN, CLEVIS

$5.49

$

In Stock, Qty 6

0

852-13

Murray 578063MA

HOUSING, UNIVERSAL

$5.49

$

In Stock, only 2 left!

0

854

Murray 1502143

KNOB, SLEEVE

$7.99

$

Usually ships in 2-12 days

0

855

Murray 309312MA

FLATWASHER

$4.49

$

In Stock, only 3 left!

0

856

Murray 73664MA

NUT, PUSH ON 3/8"

$4.99

$

In Stock, only 3 left!

0

860

Murray 581618MA

EYE BOLT 3/8-16X6.00

$5.49

$

Usually ships in 2-12 days

0

861

Murray 148MA

GROMMET, EYE BOLT

$

$

Not available

862

Murray 308145MA

BOOT, EYE BOLT
(Superseded to 1501457MA)

$8.99

$

Usually ships in 2-12 days

0

863

Murray 71045

NUT, 3/8-16 HEXJAM

$

$

Not available

864

Murray 71072

FLATWASHER .406X.81X.066

$

$

Not available

865

Murray 309344MA

ADAPTER, BOOT

$

$

Not available

867

Murray 71046

NUT, 3/8-16 HEXNYL
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

868

Murray 002X98MA

BOLT, CARRIAGE 1/4-20 X 1.00
(Superseded to 703584)

$3.99

$

In Stock, Qty 9

0

869

Murray 15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

870

Murray 1501074 YZ

CRANK, ASSY CHUTE
(Superseded to 703120)

$29.99

$

In Stock, only 2 left!

0
