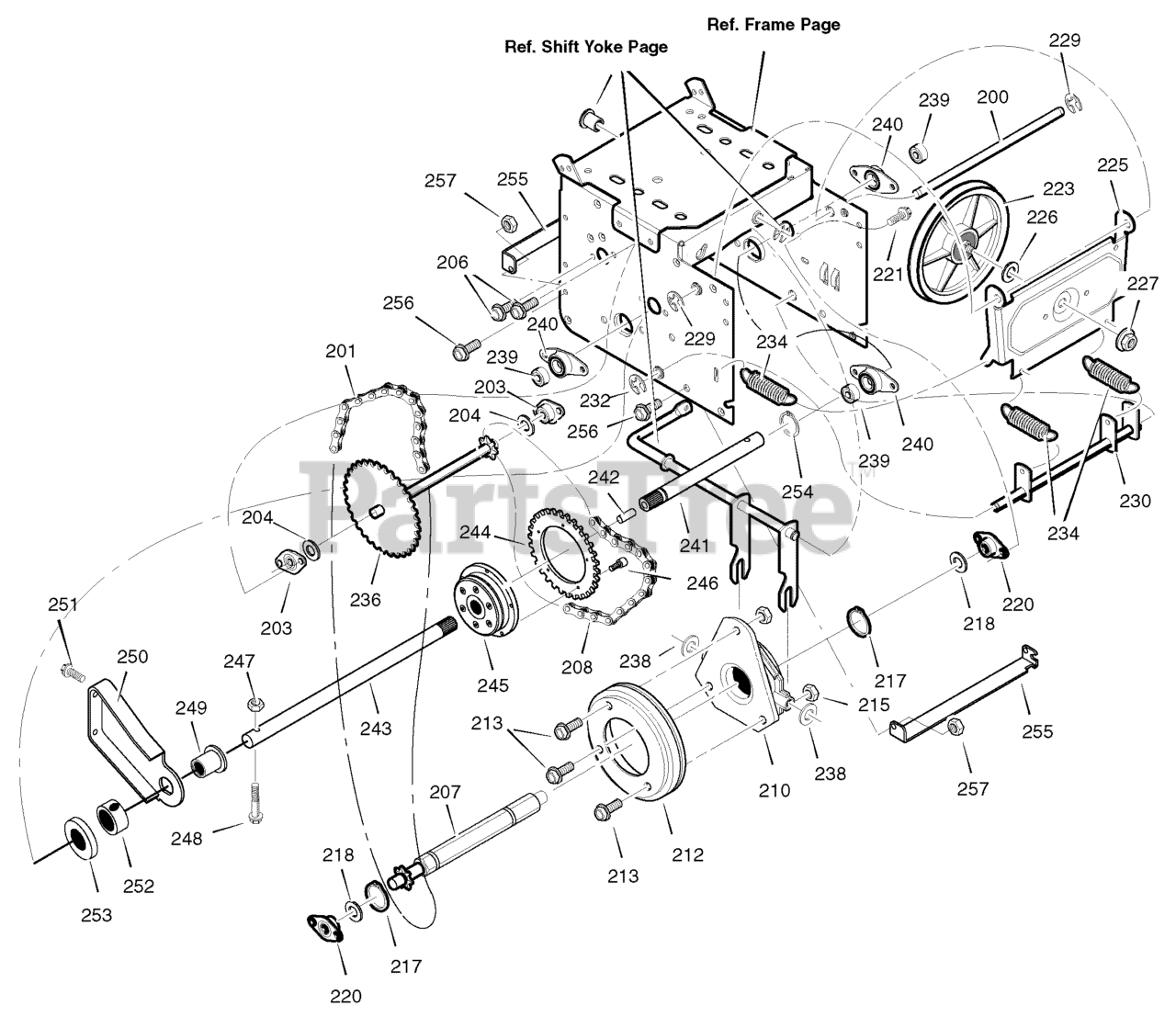

629117x31A - Scotts 29" Snow Thrower (2004) Drive Parts Diagram

29" Snow Thrower

Drive Parts Diagram

  • Title
200

Murray 1501092 YZ

LF AXLE, SWING PLATE YZ
(Superseded to 703328)

$21.99

$

Usually ships in 2-12 days

0

201

Murray 579851

CHAIN, ROLLER #420x19.00
(Superseded to 579851MA)

$21.99

$

In Stock, Qty 15

0

203

Murray 334163

BEARING AND RETAINER, ASSY
(Superseded to 334163MA)

$11.99

$

In Stock, only 2 left!

0

204

Murray 579858

WASHER
(Superseded to 579858MA)

$4.49

$

In Stock, Qty 20+

0

206

Murray 25X020

SCREW, TAP 5/16-18x0.5
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

207

Murray 1501630

ASSY, HEX SHAFT
(Superseded to 1501630MA)

$32.99

$

Usually ships in 2-12 days

0

208

Murray 579868

CHAIN, ROLLER #420x18.00 LG
(Superseded to 579868MA)

$20.99

$

In Stock, Qty 17

0

210

Murray 337029

BEARING, TRUNION CLUTCH R
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 5

0

212

Murray 1501435

WHEEL, FRICTION DISC
(Superseded to 1501435MA)

$27.99

$

In Stock, Qty 20+

0

213

Murray 001X38

BOLT
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

215

Murray 303008

NUT, KEPS HEX 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

217

Murray 579859

RING, RETEXT
(Superseded to 579859MA)

$4.49

$

Usually ships in 2-12 days

0

218

Murray 579858

WASHER
(Superseded to 579858MA)

$4.49

$

In Stock, Qty 20+

0

220

Murray 334163

BEARING AND RETAINER, ASSY
(Superseded to 334163MA)

$11.99

$

In Stock, only 2 left!

0

221

Murray 25X020

SCREW, TAP 5/16-18 x .5
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

223

Murray 1501115

FRICTION PULLY
(Superseded to 1501115MA)

$

$

Not available

225

Murray 1501057 YZ

LF PLATE, SWINGING YZ
(Superseded to 1501057YZMA)

$37.99

$

In Stock, only 1 left!

0

226

Murray 1501158

SPACER, FRICTION PULLEY
(Superseded to 1501158MA)

$4.99

$

In Stock, Qty 10

0

227

Murray 15X114

NUT, FLANGE LOCK 3/8-24
(Superseded to 15X114MA)

$4.49

$

Usually ships in 2-12 days

0

229

Murray 11X30

RETAINER, RING
(Superseded to 11X30MA)

$4.49

$

In Stock, Qty 11

0

230

Murray 1501626 YZ

ASSEMBLY, SPRING LINK STEERABLE

$45.99

$

Usually ships in 2-12 days

0

232

Murray 11X30

RETAINER, RING
(Superseded to 11X30MA)

$4.49

$

In Stock, Qty 11

0

234

Murray 165X112

SPRING, EXTENSION
(Superseded to 1736469YP)

$6.99

$

In Stock, Qty 20+

0

236

Murray 1501652

SPROCKET SET 33T/7
(Superseded to 1501652MA)

$55.99

$

Usually ships in 2-12 days

0

238

Murray 71074

WASHER, FLAT
(Superseded to 71074MA)

$

$

Not available

239

Murray 53263

BEARING, BALL
(Superseded to 53263MA)

$38.99

$

In Stock, only 2 left!

0

240

Murray 50648

RETAINER, BEARING
(Superseded to 50648MA)

$

$

Not available

241

Murray 1502045

AXLE, LEFT

$

$

Currently unavailable

242

Murray 1502024

PIN, AXLE
(Superseded to 1502024MA)

$12.99

$

Usually ships in 2-12 days

0

243

Murray 1502047

AXLE AND BUSHING, RIGHT

$143.99

$

Usually ships in 2-12 days

0

244

Murray 1501623

SPROCKET
(Superseded to 1501623MA)

$18.99

$

Usually ships in 2-12 days

0

245

Murray 1501619

CLUTCH, AUTO LOCK
(Superseded to 1501619MA)

$

$

Not available

246

$3.49

$

Usually ships in 2-12 days

0

247

$4.49

$

In Stock, Qty 20+

0

248

Murray 577015

BOLT
(Superseded to 1687475YP)

$99.99

$

Usually ships in 2-12 days

0

249

Murray 1501114

BEARING, AXLE
(Superseded to 1501114MA)

$11.99

$

In Stock, Qty 20+

0

250

Murray 1501618 YZ

BRACKET, AXLE SUPPORT
(Superseded to 1501618YZMA)

$30.99

$

Usually ships in 2-12 days

0

251

Murray 25X021

SCREW
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

252

Murray 1501620

COLLAR, LOCKING
(Superseded to 1501620MA)

$16.99

$

Usually ships in 2-12 days

0

253

Murray 17X195

WASHER
(Superseded to 17X195MA)

$4.99

$

In Stock, Qty 5

0

254

Murray 11X32

RETAINER, RING

$3.99

$

Usually ships in 2-12 days

0

255

Murray 1502030 YZ

BRACKET, SUPPORT
(Superseded to 704216)

$9.49

$

Usually ships in 2-12 days

0

256

Murray 001X38

BOLT
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

257

$

$

Not available
