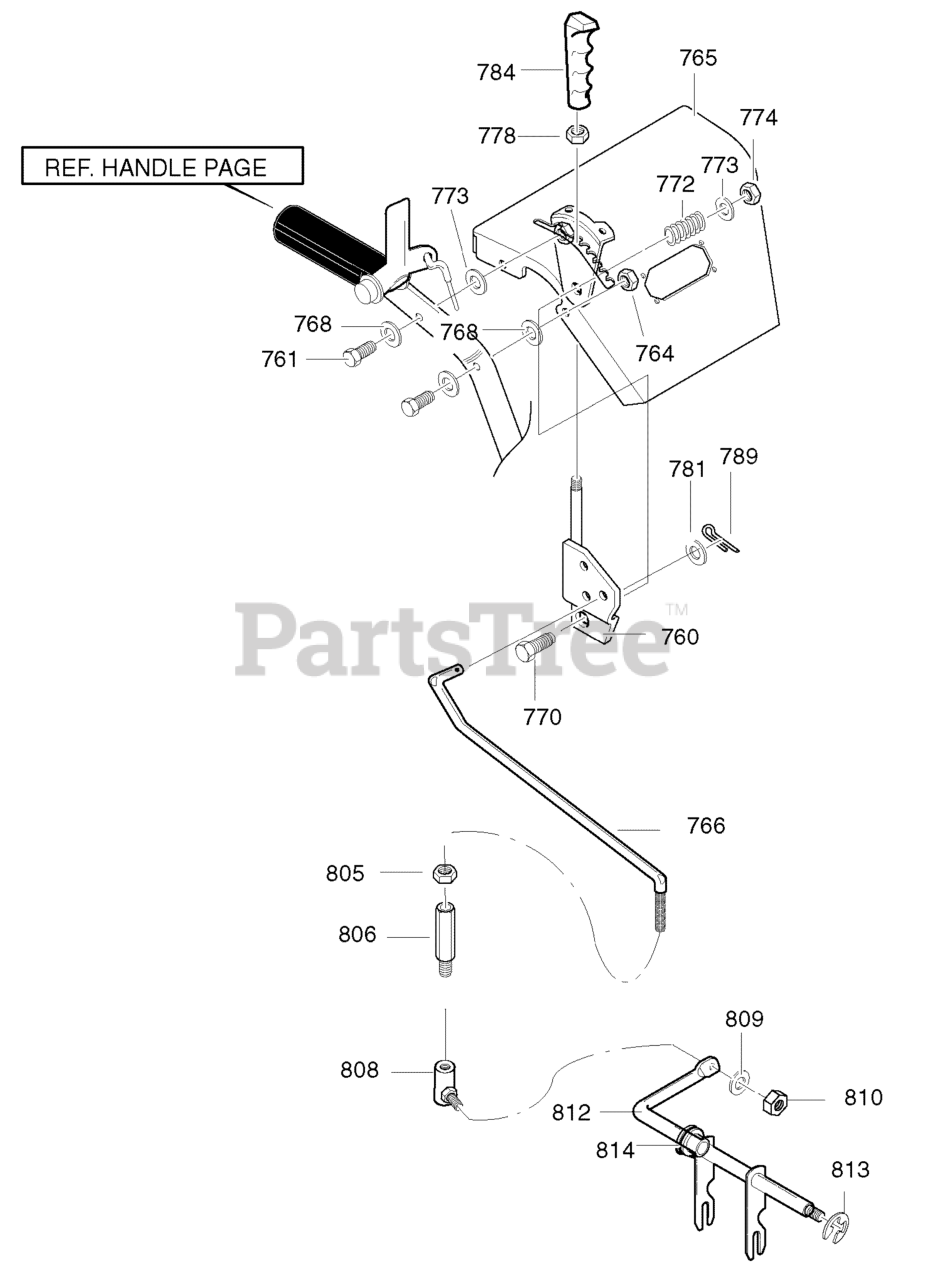

629117x31A - Scotts 29" Snow Thrower (2004) Control Panel Assembly Parts Diagram

29" Snow Thrower

Control Panel Assembly Parts Diagram

  • Title
760

Murray 1501632 YZ

HANDLE ASSY SPD CTRL

$12.99

$

Usually ships in 2-12 days

0

761

Murray 302900

SCREW, 5/16-18 X 1.75

$4.49

$

Usually ships in 2-12 days

0

764

Murray 710026

NUT, 5/16-18

$

$

Not available

765

Murray 1501414E663

ASSY. BAY PANEL - LT

$

$

Not available

766

Murray 1501688

ROD, SPEED CONTROL

$

$

Not available

768

Murray 71071

WASHER
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

770

Murray 71007

SCREW 3/8-16X2.00

$

$

Not available

772

Murray 50786

SPRING

$5.49

$

Usually ships in 2-12 days

0

773

Murray 71072

FLATWASHER

$

$

Not available

774

Murray 71046

NUT, 3/8-16
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

778

Murray 71045

NUT, 3/8-16

$

$

Not available

781

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

784

Murray 304728

GRIP, HANDLE

$12.99

$

Usually ships in 2-12 days

0

789

Murray 71081

PIN, COTTER

$

$

Not available

805

Murray 71042

NUT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

806

Murray 6352

ADAPTER, SPEED ROD -YZ
(Superseded to 6352MA)

$95.99

$

Usually ships in 2-12 days

0

808

Murray 50782

BALLJOINT, STEEL -YZ
(Superseded to 1723554SM)

$16.99

$

Usually ships in 2-12 days

0

809

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

810

Murray 71042

NUT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

812

Murray 1501110 YZ

ROD, ASSY YOKE
(Superseded to 1501110YZMA)

$50.99

$

In Stock, only 1 left!

0

813

Murray 11X30

RING, RETAINER
(Superseded to 11X30MA)

$4.49

$

In Stock, Qty 11

0

814

Murray 579944

BEARING, FLANGE
(Superseded to 579944MA)

$15.99

$

Usually ships in 2-12 days

0
