629117x31A - Scotts 29" Snow Thrower (2004) Auger Housing Parts Diagram

29" Snow Thrower

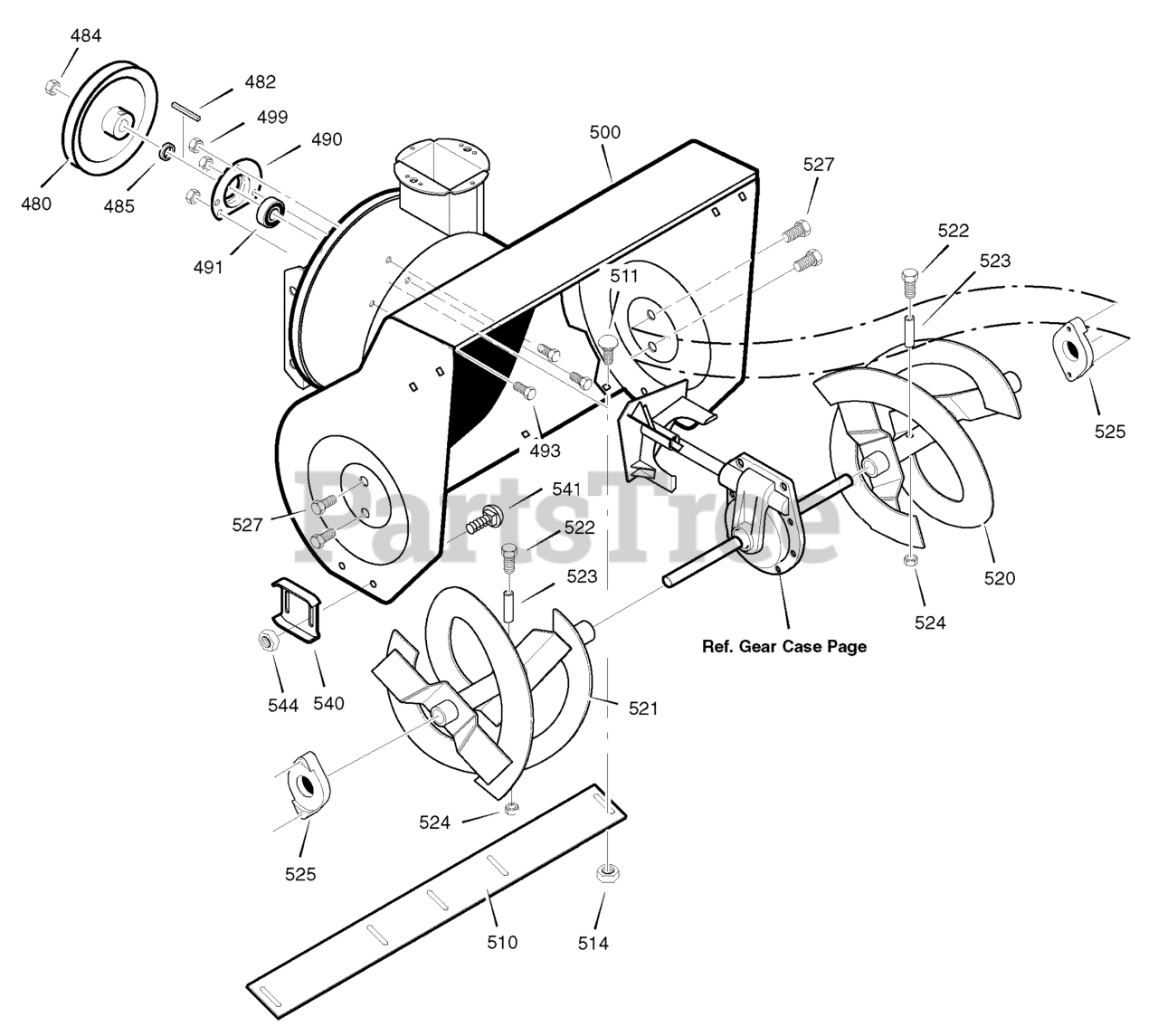

Auger Housing Parts Diagram

  • Title

480

Murray 583146

PULLEY, 4L 8.40 OD
(Superseded to 583146MA)

$

$

Not available

482

Murray 2001022

KEY, SQUARE 3/16 X 3/4
(Superseded to 2001022MA)

$4.49

$

In Stock, Qty 11

0

484

Murray 15X112

NUT, 1/2-20
(Superseded to 15X112MA)

$5.49

$

In Stock, only 2 left!

0

485

Murray 1501158

SPACER, FRICTION PULLEY
(Superseded to 1501158MA)

$4.99

$

In Stock, Qty 10

0

490

Murray 582957 YZ

RETAINER, BALL BRNG
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 1501389

BEARING, BALL

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X92

BOLT, HEX 5/16-18X .50

$5.49

$

In Stock, only 3 left!

0

499

Murray 710026

NUT, 5/16-18 HEXWDFLLK

$

$

Not available

500

Murray 1501121E663

HOUSING, ASSY

$

$

Currently unavailable

510

Murray 760655E717

BLADE, SCRAPER

$46.99

$

In Stock, only 4 left!

0

511

Murray 340720

BOLT, 5/16-18X.75
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

514

Murray 710026

NUT, 5/16-18

$

$

Not available

520

Murray 760597E717

AUGER, ASSY, LH

$

$

Currently unavailable

521

Murray 760598E717

AUGER, ASSY, RH

$

$

Currently unavailable

522

Murray 9524

SCREW, 1/4-20 X 1.75
(Superseded to 703057)

$5.99

$

In Stock, only 3 left!

0

523

Murray 3943

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

524

Murray 73826

NUT, 1/4-20

$4.99

$

In Stock, Qty 20+

0

525

Murray 53757

BEARING, FLANGE
(Superseded to 53757MA)

$9.99

$

In Stock, only 2 left!

0

527

Murray 25X021

SCREW, 5/16-18 X .75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

540

Murray 762377E717

SKID, HEIGHT ADJUST

$

$

Not available

541

Murray 340720

BOLT, 5/16-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

544

Murray 710026

NUT, 5/16-18

$

$

Not available

--

Murray 1501216

KIT, SHEAR BOLT
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 14

0
