629114x85C - Murray 29" Snow Thrower (2004) Wheel Assembly Parts Diagram

29" Snow Thrower

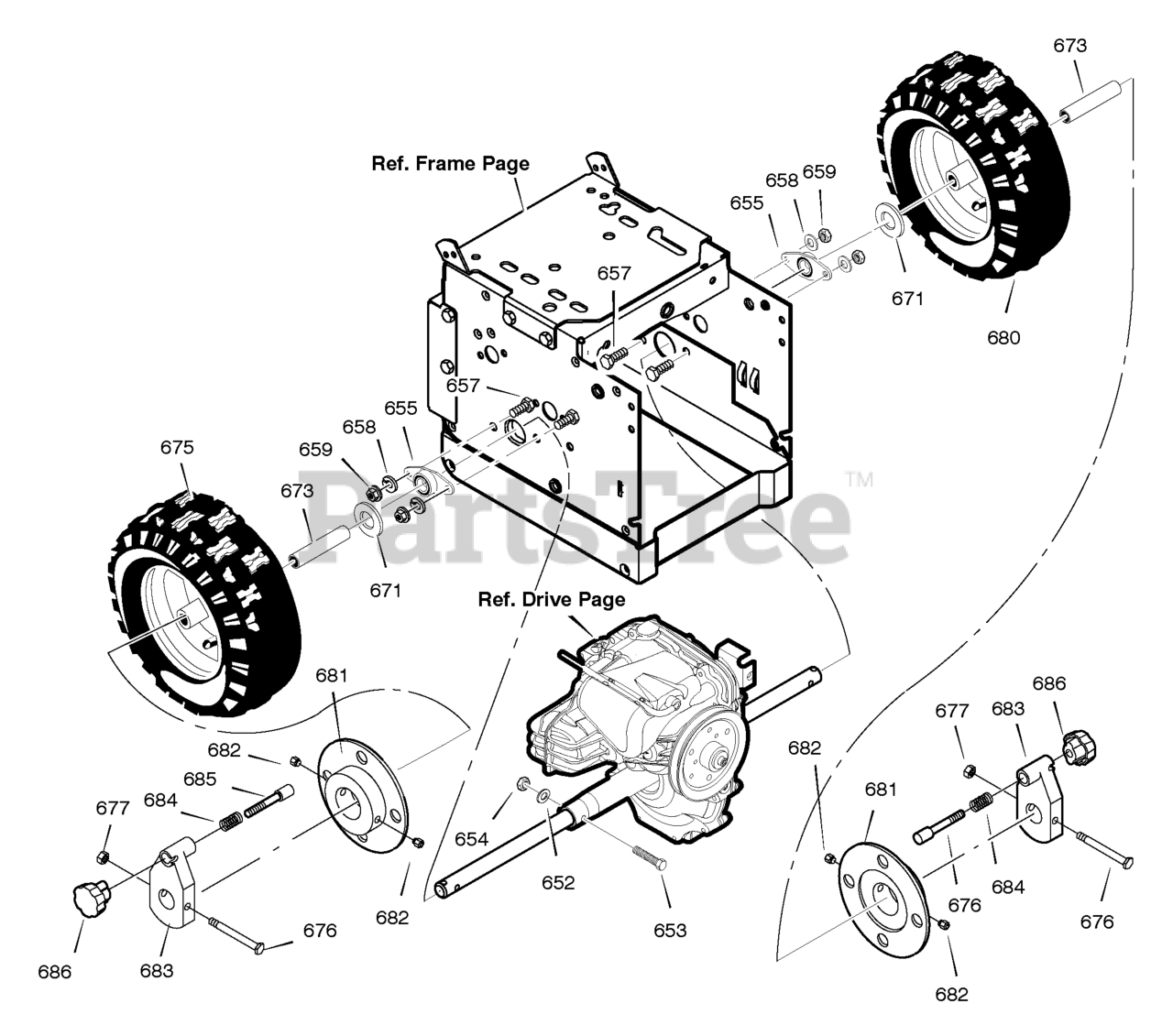

Wheel Assembly Parts Diagram

  • Title

652

Murray 003943

SPAVER, SLEEVE

$7.49

$

In Stock, only 4 left!

0

653

Murray 01X193MA

SCREW, 1/4-20X1.75
(Superseded to 704212)

$5.49

$

In Stock, Qty 20+

0

654

Murray 15X116MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

655

Murray 53266MA

BEARING & RETAINER ASSY

$48.99

$

Usually ships in 2-12 days

0

657

Murray 71003

SCREW, 3/8-16 x .75

$

$

Not available

658

Murray 71062

WASHER, SPLTLK

$

$

Not available

659

Murray 71044

NUT, 3/8-163

$3.49

$

Usually ships in 2-12 days

0

671

Murray 712120MA

WASHER, FLAT

$4.99

$

In Stock, Qty 20+

0

673

Murray 1501138MA

BUSHING, WHEEL

$

$

Not available

675

Murray 1501818MA

TIRE & RIM, RIGHT
(Superseded to 1736413YP)

$186.99

$

Usually ships in 2-12 days

0

676

Murray 73839MA

SCREW, 1/4-20 X 2.25

$5.49

$

In Stock, only 4 left!

0

677

Murray 15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

680

Murray 1501817MA

TIRE & RIM, LEFT

$165.99

$

Usually ships in 2-12 days

0

681

Murray 1501032EMA

DISC, WHEEL

$32.99

$

Usually ships in 2-12 days

0

682

Murray 2001066MA

SCREW

$5.49

$

In Stock, Qty 20+

0

683

Murray 1501930MA

HUB, WHEEL LOCK

$97.99

$

In Stock, only 3 left!

0

684

Murray 164X34MA

SPRING

Note: (Included with Ref. No. 683)

$5.99

$

In Stock, Qty 19

0

685

Murray 1501856 YZ

PIN, LOCK
(Superseded to 1501856YZMA)

Note: (Included with Ref. No. 683)

$15.99

$

In Stock, Qty 14

0

686

Murray 1501855MA

KNOB

Note: (Included with Ref. No. 683)

$13.99

$

In Stock, Qty 16

0

--

Murray 48X5600

DECAL
(Superseded to 48X5600MA)

Note: (Included with Ref. No. 683)

$14.99

$

Usually ships in 2-12 days

0
