629108x61E - Murray 29" Snow Thrower (2004) Discharge Chute Parts Diagram

29" Snow Thrower

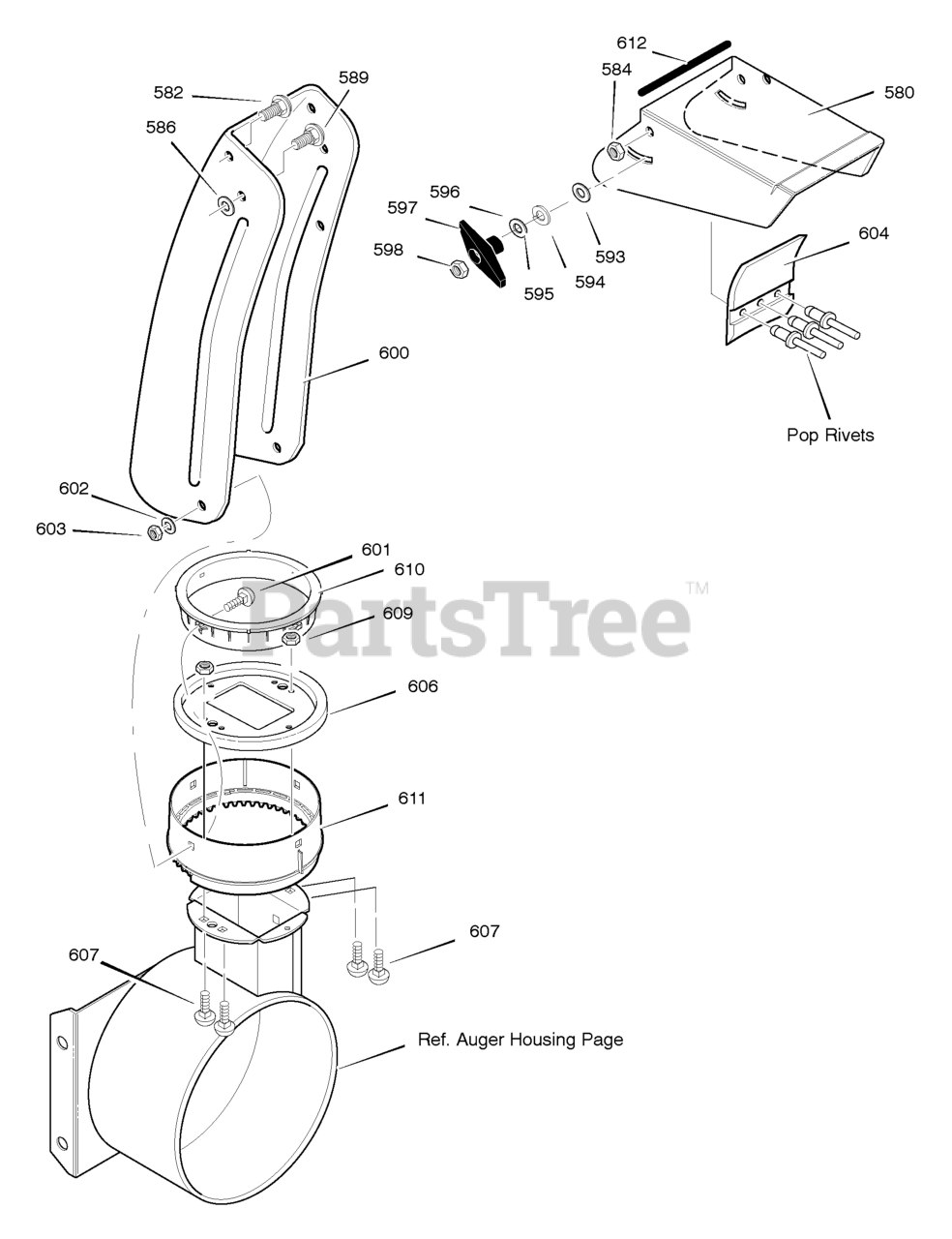

Discharge Chute Parts Diagram

  • Title

580

Murray 761070E701

CHUTE, UPPER W/REMOTE

$28.99

$

Usually ships in 2-12 days

0

582

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

584

Murray 71038

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

58

Murray 12021

WASHER, PLASTIC
(Superseded to 12021MA)

$3.99

$

In Stock, only 4 left!

0

593

Murray 6711MA

WASHER, PLASTIC

$3.99

$

Usually ships in 2-12 days

0

594

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

595

Murray 71060

WASHER, SPLIT
(Superseded to 1501670MA)

$

$

Not available

596

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

597

Murray 57171

KNOB, T 3.00
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 8

0

598

Murray 15X144

NUT
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

599

Murray 002X97MA

SCREW, 5/16-18 x 0.75
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

600

Murray 761328E701

CHUTE, LOWER / GUARD

$136.99

$

Usually ships in 2-12 days

0

601

Murray 02X100

BOLT

$

$

Not available

602

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

603

Murray 71038

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

604

Murray 762322MA

FLAP

$6.49

$

Usually ships in 2-12 days

0

606

Murray 1501932 YZ

CHUTE COLLAR
(Superseded to 1501932YZMA)

$28.99

$

In Stock, only 1 left!

0

607

Murray 02X101MA

BOLT
(Superseded to 703440)

$3.99

$

In Stock, Qty 10

0

609

Murray 15X145MA

NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Murray 337227MA

RETAINER, RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 1501282MA

RETAINER, RING OUTER

$26.99

$

In Stock, only 2 left!

0

612

Murray 1001221MA

TRIM

$5.99

$

Usually ships in 2-12 days

0
